240-2166: ПРОКЛАДКА

Description:

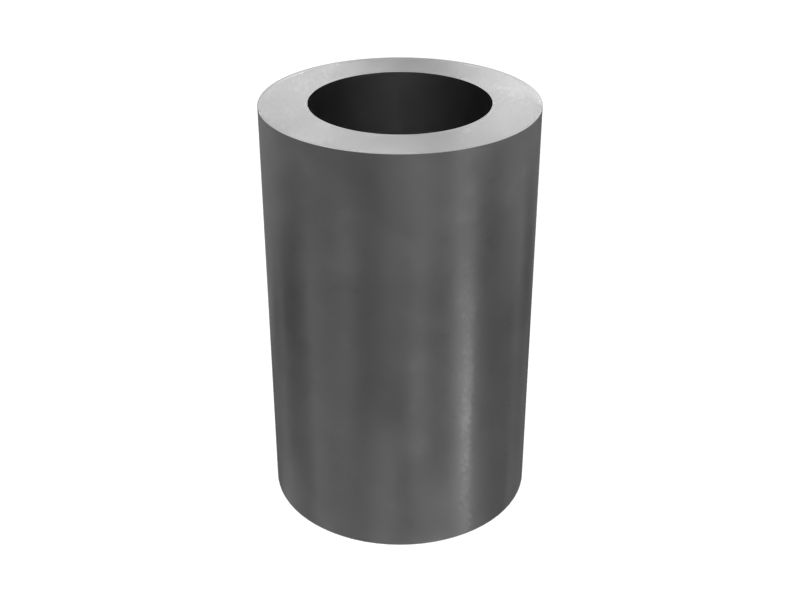

A Cabin Window Spacer used with a hinge plate serves to create a gap or distance between the hinge plate and the Cabin Window frame. The size and shape of a steel Spacer can vary depending on its intended use, but they are typically manufactured to very tight tolerance to ensure accurate spacing between components.

Attributes:
• Provides accurate alignment between components, ensuring that they are properly spaced and positioned.
• Has high strength-to-weight ratio.

Applications:
A Cabin Window Spacer provides a gap that allows for the smooth and unobstructed movement of the Cabin Window, as it opens and closes on its hinges, mostly used in Cat 621, 621G, 621H, 621K, 631, 631G, and 631K Wheel Tractor Scrapers, 770, 773F, 773G, 775F, 775G, 777F, and 777G Trucks.

• Inner Diameter (in): 0.41

• Inner Diameter (mm): 10.36

• Length (in): 0.98

• Length (mm): 25

• Material: Steel,Carbon Steel

• Outer Diameter (in): 0.63

• Outer Diameter (mm): 15.88

• Weight (kg): 0.02

• Weight (lb): 0.05
