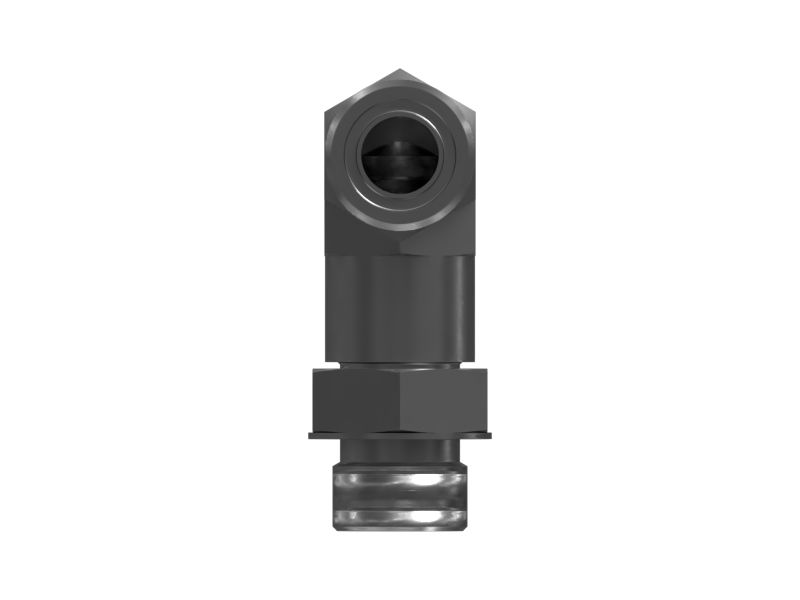

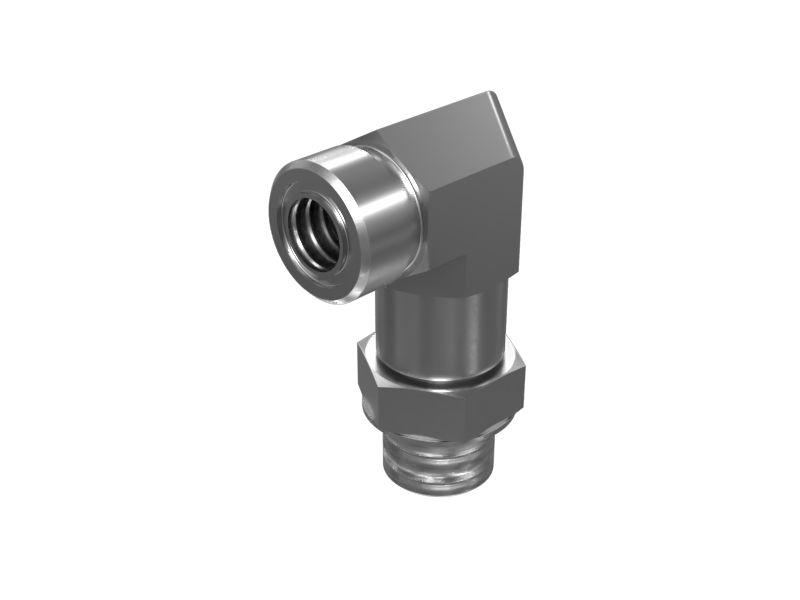

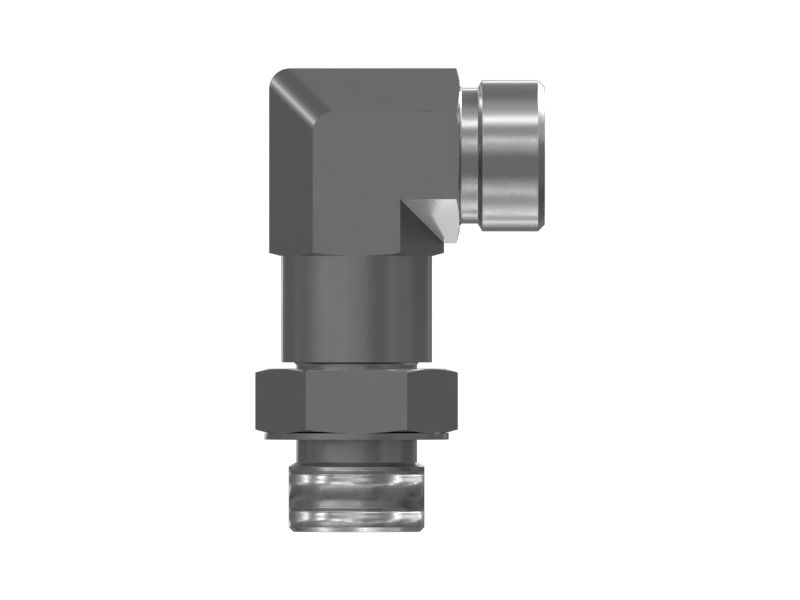

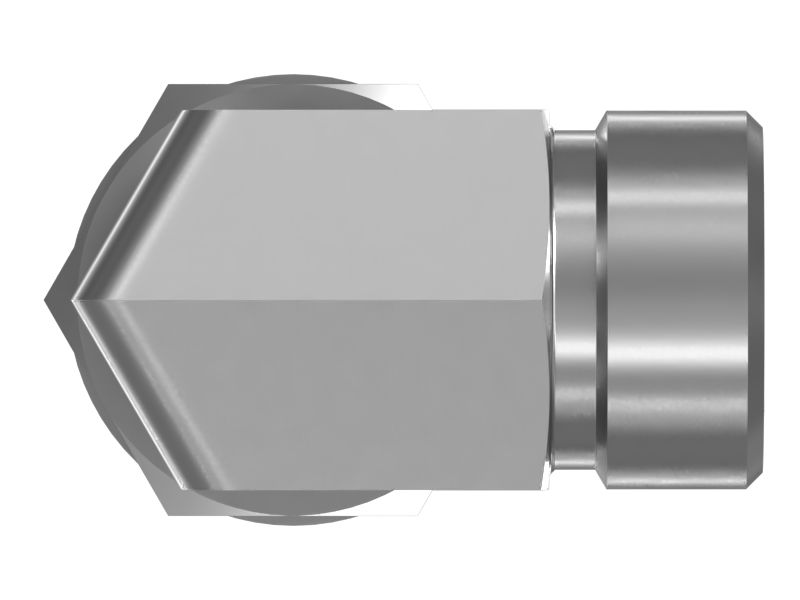

235-3611: КОЛЕНЧАТЫЙ ПАТРУБОК 90-ГРАД.

An Elbow Adapter is designed to connect the O-Ring Face Seal (ORFS) to the Straight-Thread O-Ring (STOR) in the hydraulic system. It allows the hydraulic oil to change direction smoothly, providing flexibility in configuring the system and enabling efficient space utilization. By ensuring secure and leak-free connections, the adapter contributes to the system's reliability and minimizes pressure drop, optimizing hydraulic performance. It plays a crucial role in directing oil flow, facilitating maintenance access, and enhancing the overall functionality of the hydraulic system

Attributes:
• Minimizes pressure drop, ensuring optimal hydraulic performance and efficiency
• Optimizes space utilization in tight or confined areas, creating efficient layouts in the hydraulic system
• Provides reliable and leak-free connections between hydraulic components, minimizing fluid loss and system inefficiencies

Applications:
This Elbow Adapter connects the O-Ring Face Seal (ORFS) to the Straight-Thread O-Ring (STOR) in a hydraulic system to change oil flow direction, optimize space, and simplify maintenance.

• Coolant and Urea Compatible Seal: 294-9072 (1-3/16-12), 6V-5063 (1-1/16-12)

• Oil and Fuel Compatible Seal: 228-7092 (1-3/16-12), 238-5082 (1-1/16-12)

• Transmission and Hydraulic Oil Compatibile Seal: 3D-2824 (1-1/16-12), 6V-9746 (1-3/16-12)

• Material: Carbon Steel
