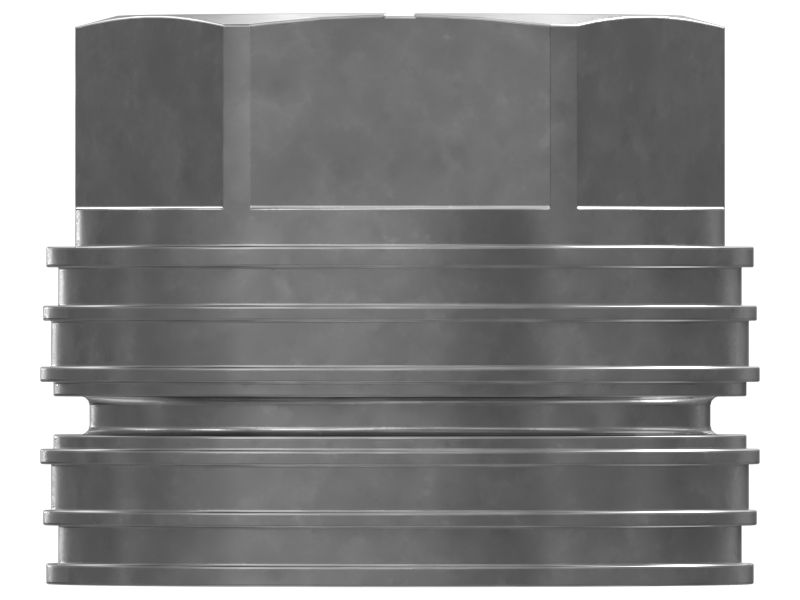

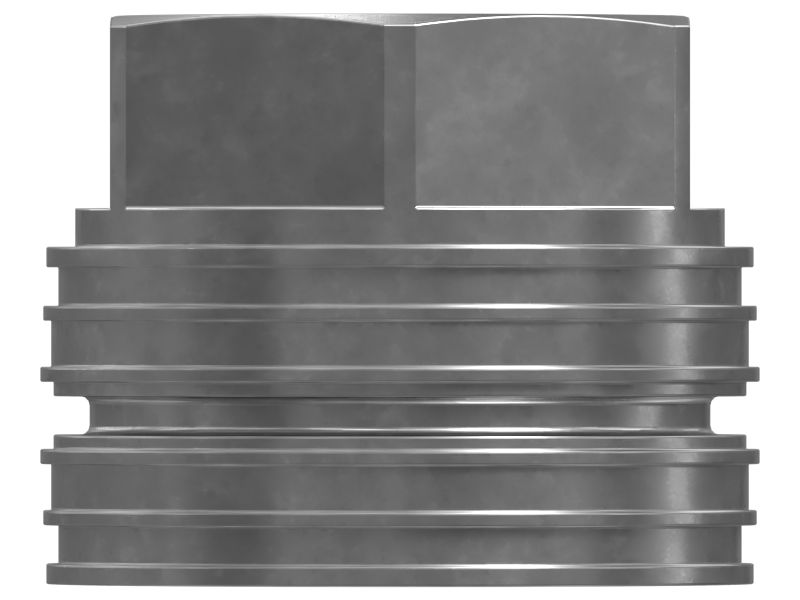

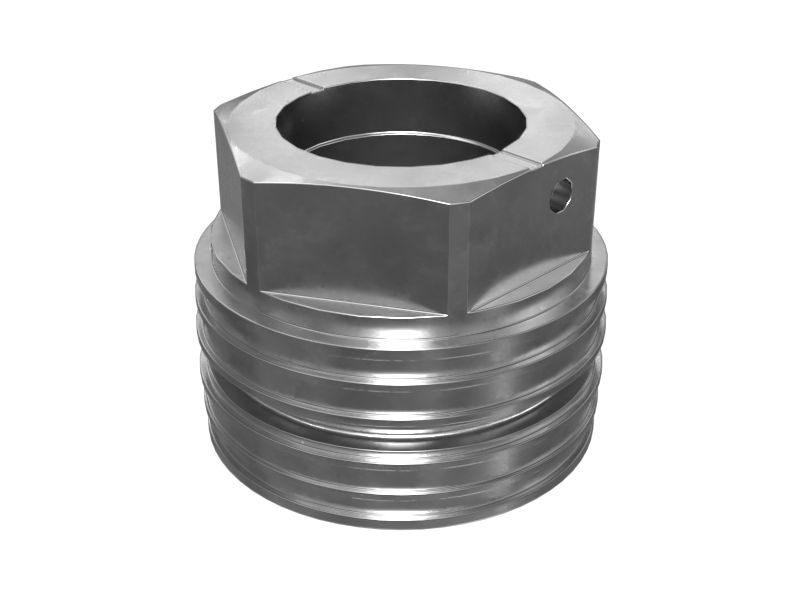

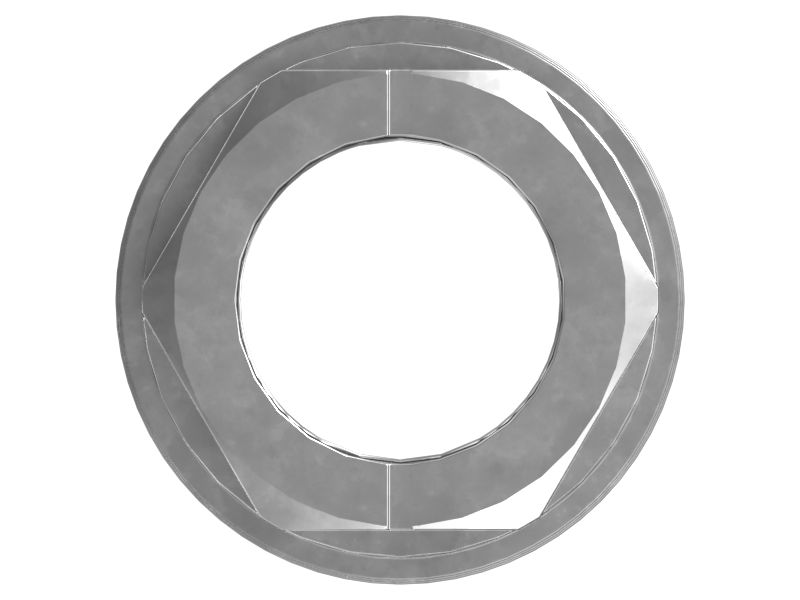

234-4573: ПОРШЕНЬ

Description:
The Stick Cylinder Piston is a component found in hydraulic systems. The stick cylinder is responsible for extending and retracting the stick or boom of the machine, allowing for controlled movement and positioning of the attached bucket or other attachments.

Attributes:
• Designed to handle the expected loads and forces encountered during the operation of the stick cylinder.
• Designed with features to enhance heat dissipation and prevent overheating.
• Equipped with seals to prevent hydraulic fluid from leaking past it.

Application:
The Stick Cylinder Piston converts hydraulic pressure into linear mechanical motion. When hydraulic fluid is directed into the cylinder, it pushes against the piston, causing it to move in a linear direction. This movement extends or retracts the stick cylinder, adjusting the length of the stick or boom and it is widely used in Cat 1390, 1490, 1490T, 2590, 541, 551, 552, TK741, TK751, and TK752 Tree Harvester, 320, 320B, 320C, 320D, 320E, 323, 323D, 323F, 324D, 325, 325C, 325D, 328D, 329D, 329E, 329F, 330, 330D, 330F, 333, 335F, 336D, 528, 538 and 558 Excavators, and 963D Track Loaders.

• Inner Diameter (in): 3.37

• Inner Diameter (mm): 85.5

• Material: Carbon Steel

• Outer Diameter (in): 4.65

• Outer Diameter (mm): 118

• Thread: M85x4, M14x2

• Weight (kg): 8.63

• Weight (lb): 3914.5

• Width (in): 4.65

• Width (mm): 118
