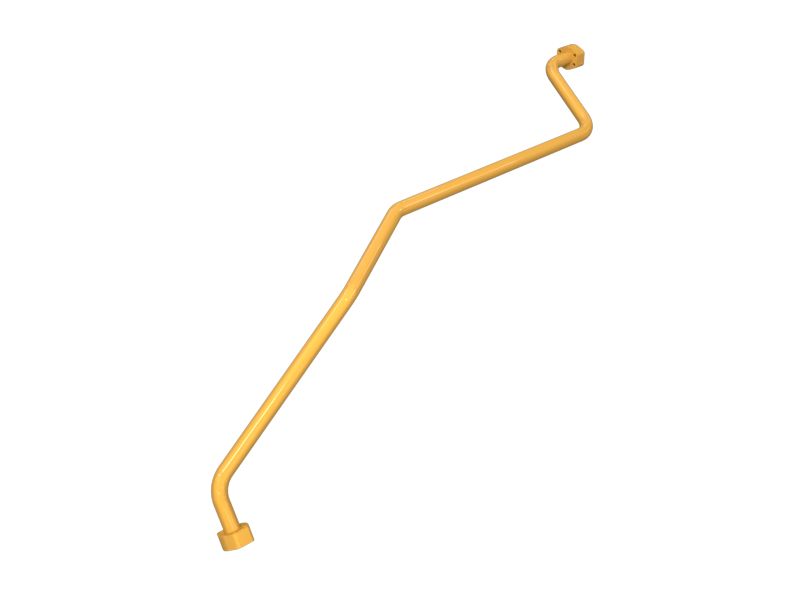

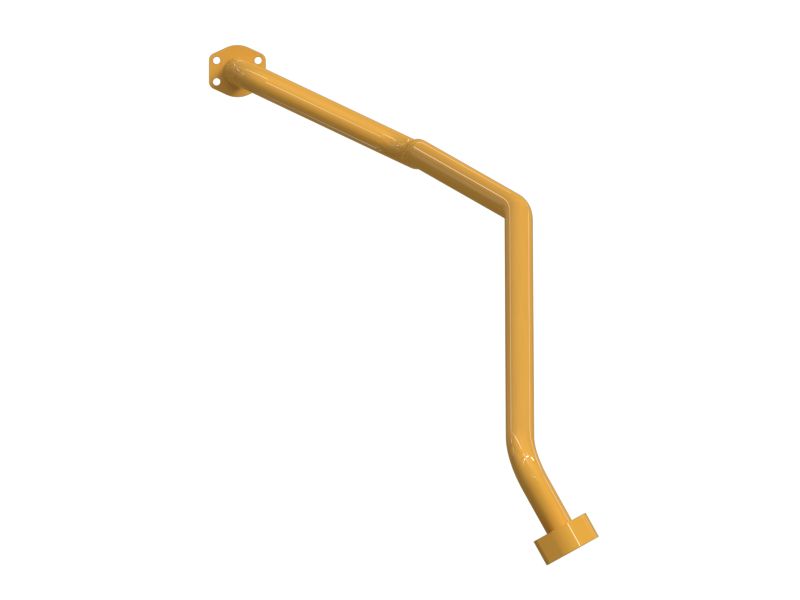

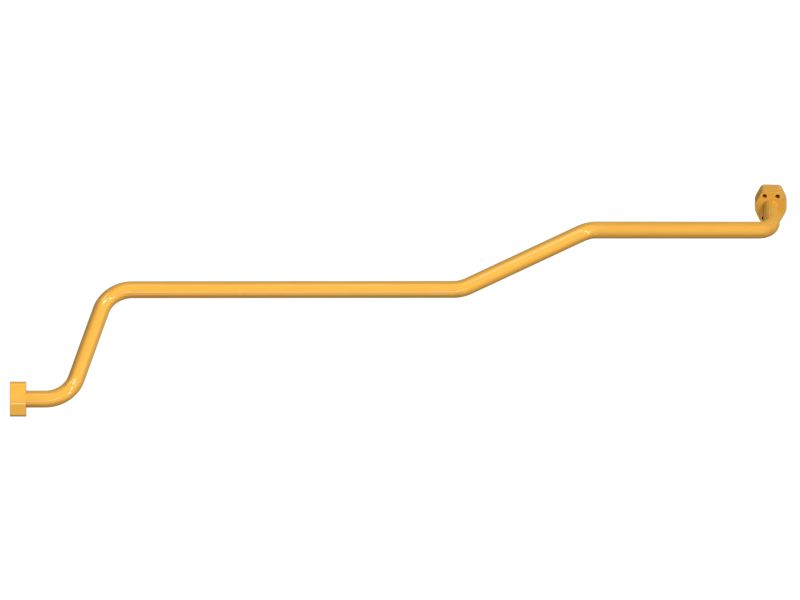

233-0084: ТРУБКА В СБОРЕ

The Draft Frame Hydraulic Control Lines Tube Assembly serves as a conduit for hydraulic fluid, allowing the transmission of pressure and control signals between different actuators of the scraper draft frame system. The assembly incorporates hydraulic tubes with flanges, providing secure and reliable connections for hydraulic fluid flow and facilitating precise control over the scraper draft frame, ensuring efficient operation

Attributes:
• Provide a smooth, uninterrupted flow of hydraulic fluid, minimizing pressure drop
• Withstands hydraulic relief valve oil pressure of 14000 kPa

Applications:
The Draft Frame Hydraulic Control Lines Tube Assembly acts as a conduit for hydraulic fluid, enabling the smooth flow of fluid between various components of the scraper draft frame system. It ensures efficient transmission of hydraulic pressure and control signals, facilitating precise control and operation of the scraper draft frame.

• Outer Diameter (mm): 38

• Outer Diameter (in): 1.5

• Approximate Overall Length (mm): 2244

• Material: Steel
