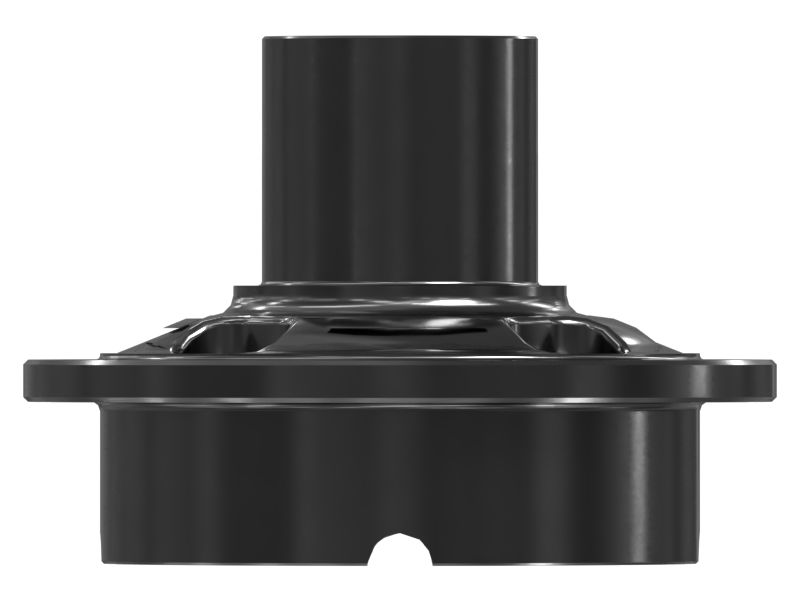

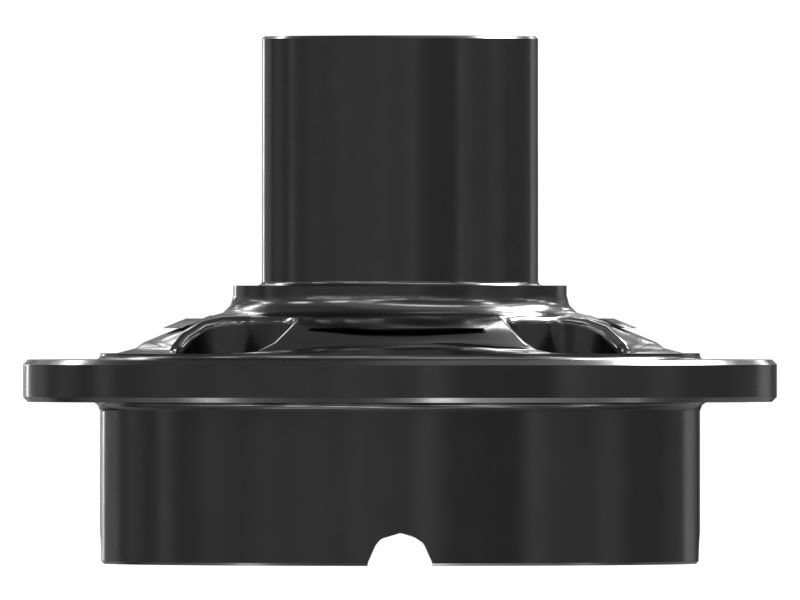

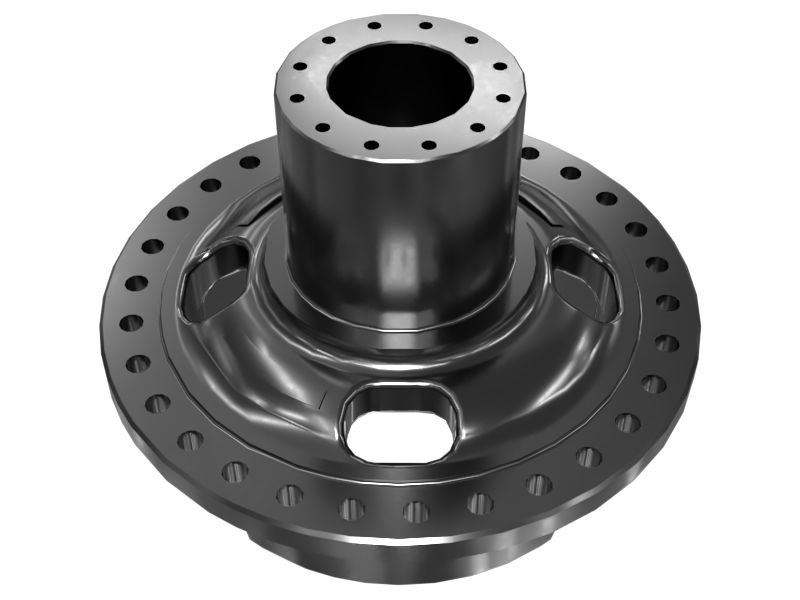

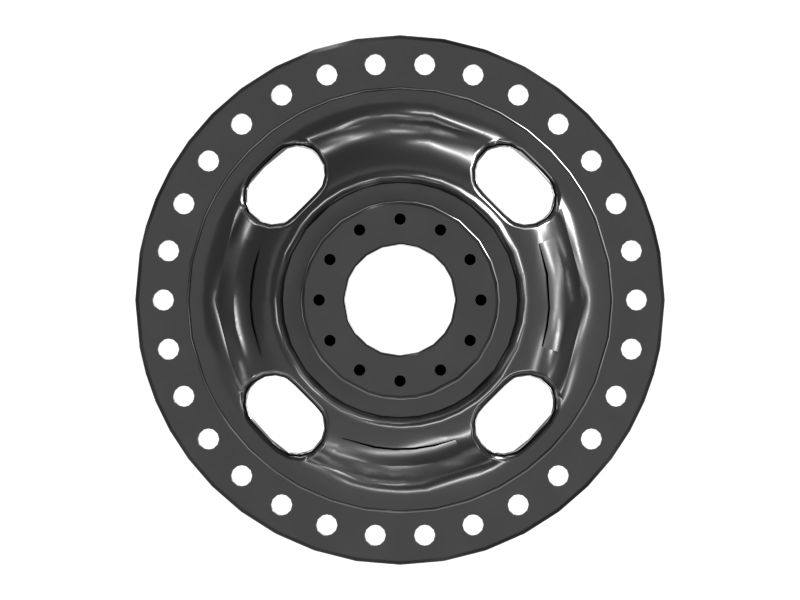

232-1691: КОЖУХ ДИФФЕРЕНЦИАЛА

Description:
Part # 232-1691 provides a flange half housing for the differential.

Cat drive train components must endure incredible torque, high impact loads, and frequent direction and gear changes. Cat designs and manufactures its transmissions and final drive components with these demands in mind. The result is a drive train that lasts longer and works harder over the life of the machine.

Attributes:
• Cast iron housing
• Diameter at Bearing Interface: 174.7 mm (6.87 in)
• Flange Diameter: 477.5 mm (18.80 in)
• Outside Diameter: 380 mm (14.96 in)
• Inside Diameter: 100 mm (3.94 in)
• Overall Length: 333.8 mm (13.14 in)
• Flange Mounting Hole Size: 19.45 mm (0.77 in) (30X)

Application:
Consult your owner's manual or contact your local Cat Dealer for more information.

• Material: Cast Iron,Ductile (Spheroidal) Iron

• Flange Diameter (mm): 477.5

• Outside Diameter (mm): 380

• Inside Diameter (mm): 100

• Overall Length (mm): 333.8

• Hole Size (mm): 19.45 (30X)

• Flange Diameter (in): 18.80

• Outside Diameter (in): 14.96

• Inside Diameter (in): 3.94

• Overall Length (in): 13.14

• Hole Size (in): 0.77 (30X)
