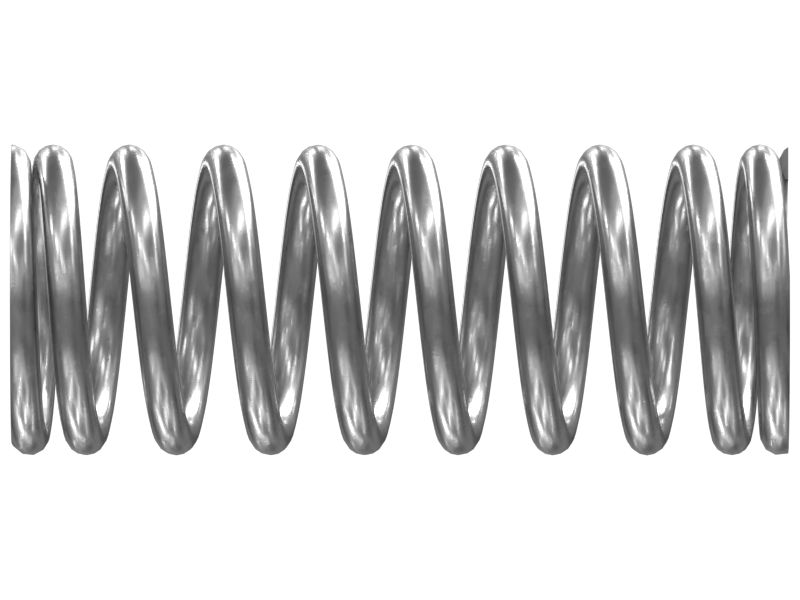

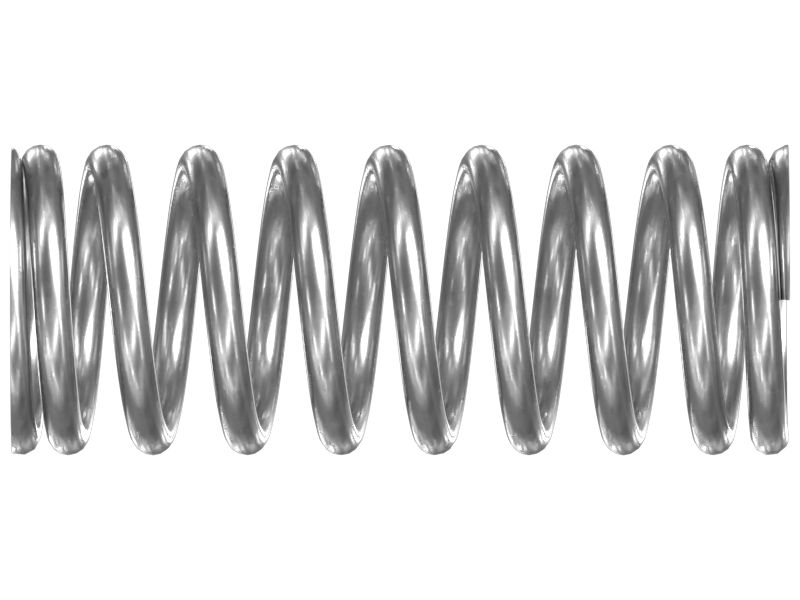

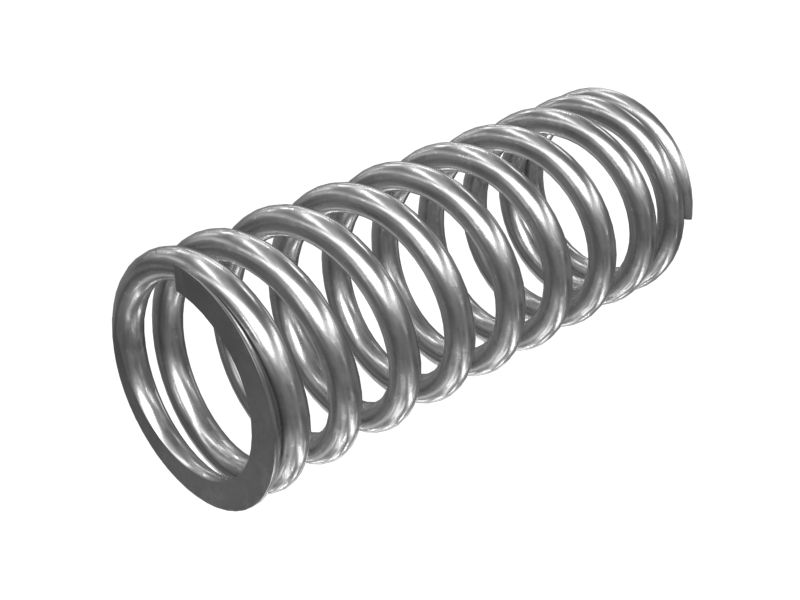

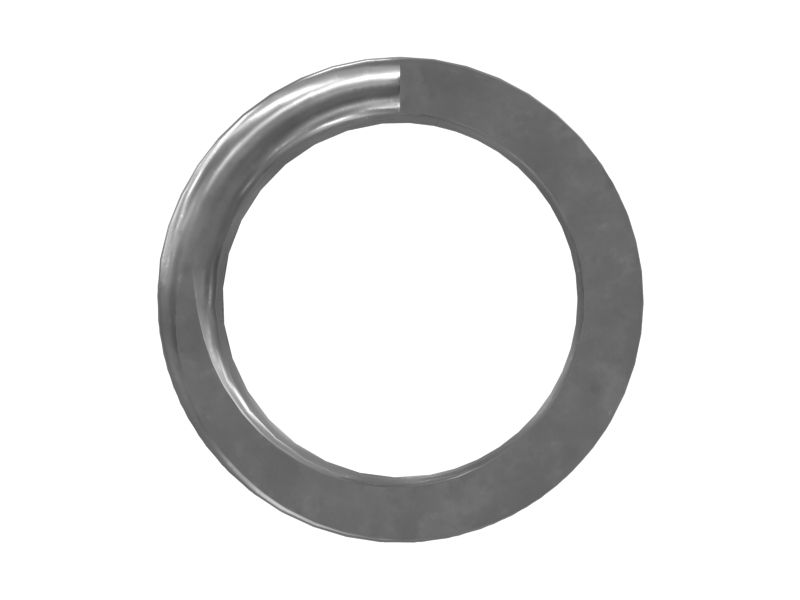

230-5483: ПРУЖИНА

Description:
The Compression Spring in a hydraulic piston motor serves as an energy storage and force-balancing element. It absorbs and releases energy during the operation of the motor, ensuring smooth and controlled movement of the hydraulic components. The spring's primary function is to provide the necessary force required to push the spool in the head, which in turn controls the flow of hydraulic fluid.

Attributes:
• Provide a smooth and consistent force throughout their compression and expansion cycles.
• Provided with a spring rate value of 6.0 N/mm which indicates good deflection
• Direction of the coil is Right Hand and Total Coils is 9.25 with Active Coils is 7.25

Applications:
The Compression Spring is used in piston motor to provide the necessary force and energy balance for proper operation, this is mostly used in Cat 330C, 330D, 336F, 345B, 345C, 345D, 349, 349D, 349E, 349F, 352, 352F, 365D, 374D, 374E and 374F Excavators, 330D, 345C, MH3275 and TH220B Material Handlers.

• Length (in): 1.37

• Length (mm): 35

• Outside Diameter (in): 0.55

• Outside Diameter (mm): 14

• Spring Type: Compression

• Weight (kg): 0.01

• Weight (lb): 0.02

• Wire Size (in): 0.07

• Wire Size (mm): 1.7

• Material: Carbon Steel
