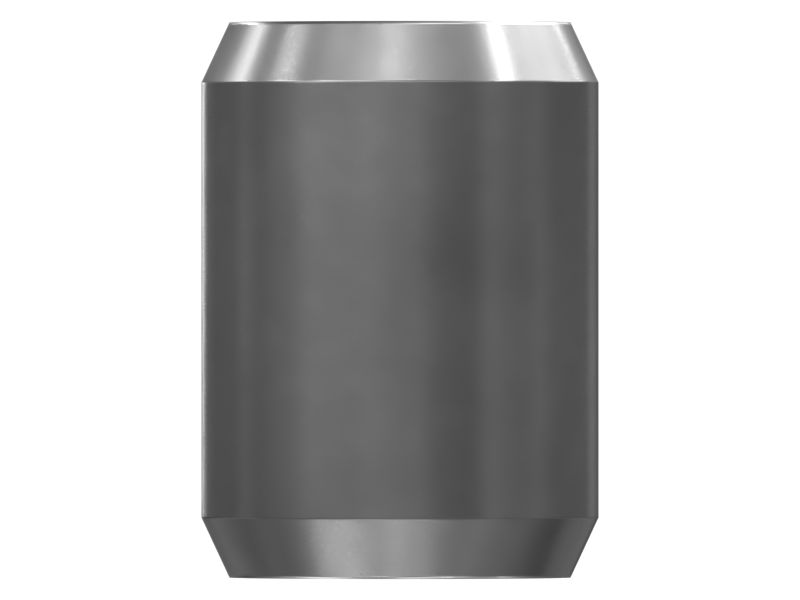

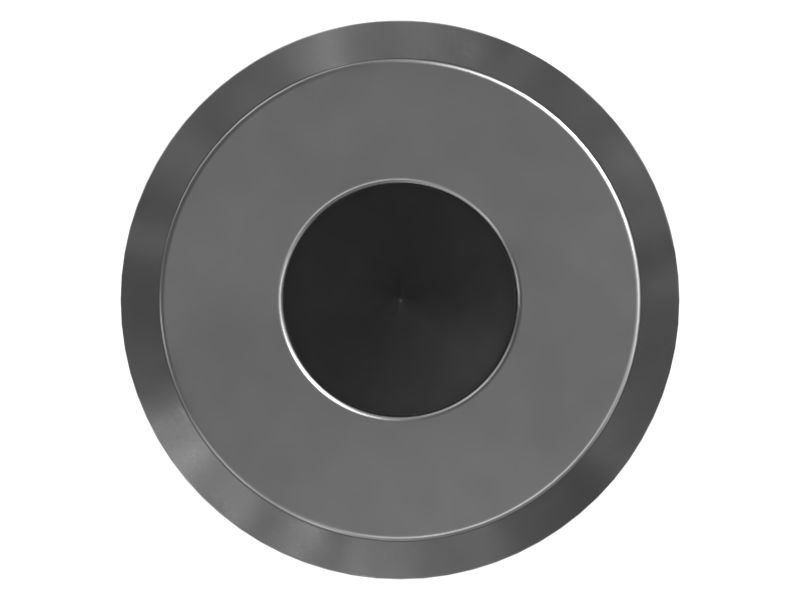

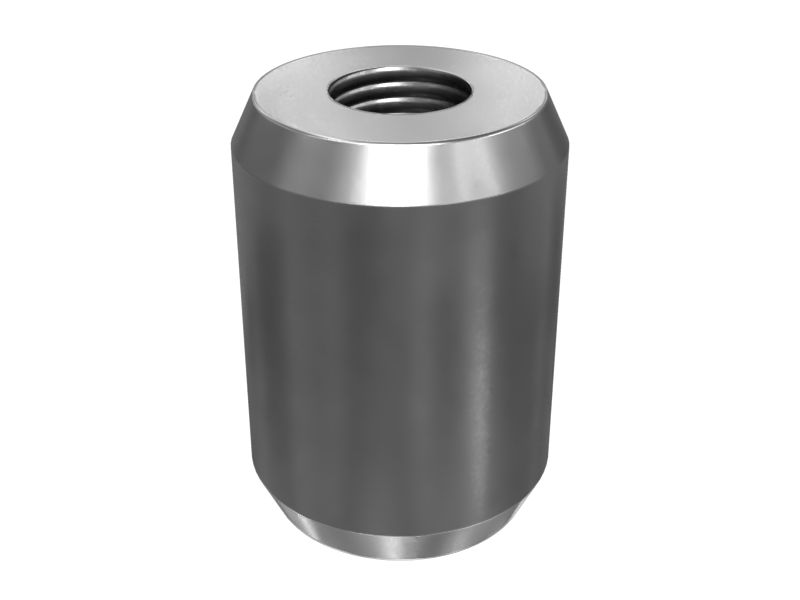

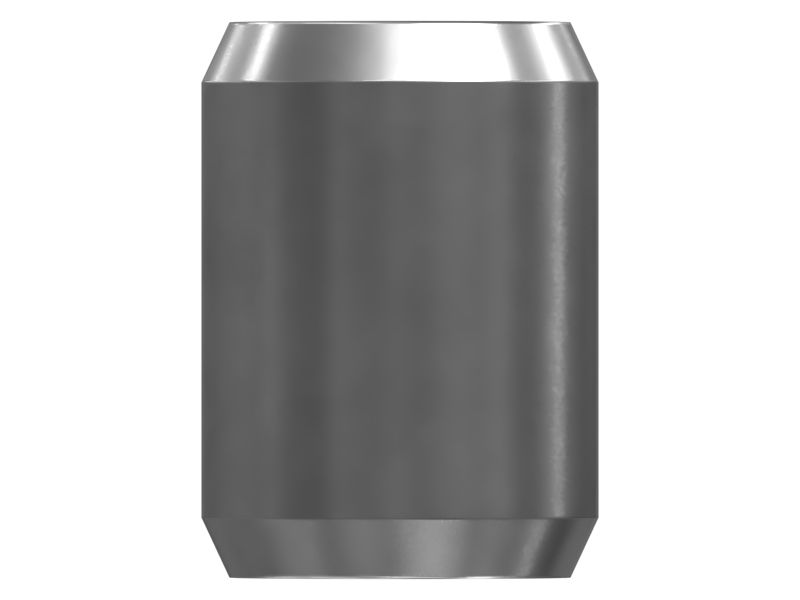

227-6123: ШТИФТ

Description:
A Straight Dowel Blind Hole Pin is used in the Final Drive retainer to provide precise alignment, support, and secure retention of the bearing. The Blind Hole in the Dowel is typically designed with a slightly smaller diameter than the corresponding blind hole or bore in the retainer. This creates an interference fit, providing a tight and secure connection, and preventing movement or dislodgment of the dowel during operation.

Attributes:
• Prevents parts from shifting during operation
• Manufactured to precise specifications and are built for durability and reliability

Applications:
A Straight Dowel Blind Hole Pin is used to ensure accurate alignment for the bearing and retainer, this is mostly used in Cat 320C, 320D, 322C, 323D, 324D, 325C, 325D, 326D, 329D, and 330D Excavators, 325C and 325D Material Handler, 3516C Generator Set.

• Length (in): 0.55

• Length (mm): 14

• Pin Diameter (in): 0.39

• Pin Diameter (mm): 10.01

• Thread: M5 X 0.8

• Weight (kg): 0.14

• Weight (lb): 0.31

• Material: Low Alloy Steel
