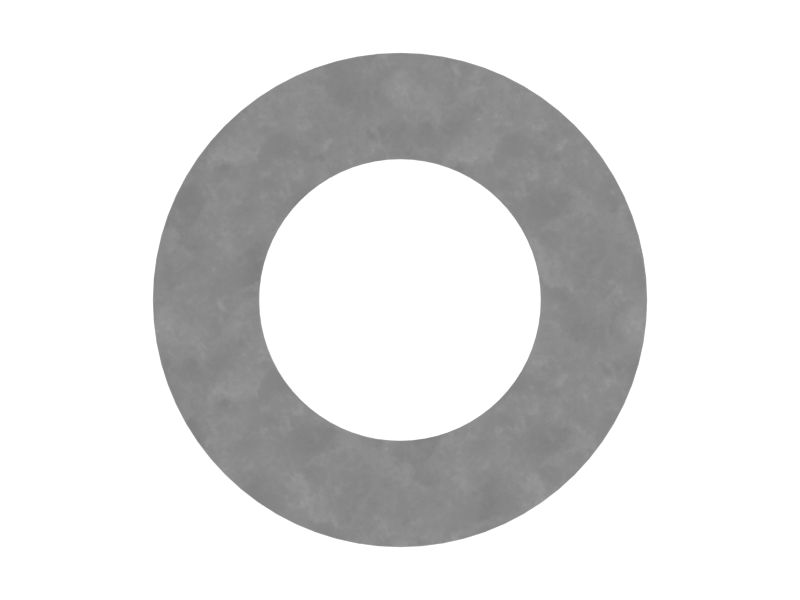

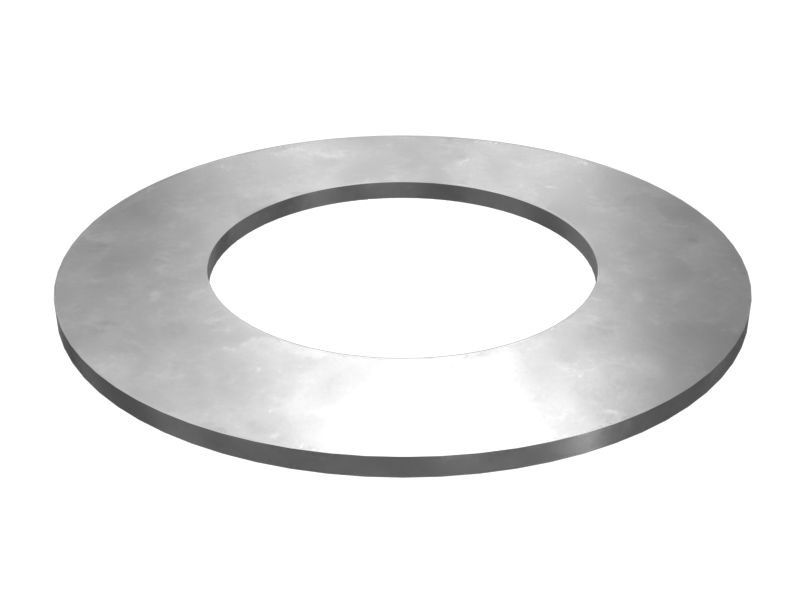

223-4313: ШАЙБА

A Belleville washer is a type of spring washer with a conical shape that is commonly used to provide tension and maintain bolt preload where vibration, thermal expansion, and contraction may cause nuts and bolts to loosen. By distributing the load over a larger surface area, the washer helps to prevent the fastener from digging into the surface or causing it to deform.

Attributes:
Provided with the spring rate and load capacity of the washer at an Offset of 5.75mm at 7.17 degrees
Protect against damage by distributing the load uniformly and reducing the tension on the fastener
Manufactured to precise specifications and are built for durability and reliability

Applications:
A washer is used to distribute the load of the fastener over a larger area, which helps to prevent damage to the surface being fastened used in brake cylinders and axle brakes, mostly used in Cat® CCS7, CP44, CP44B, CP7, CS44, CS44B and CS7 Compactor, CP-433E, CS-423E, and CS-433E Paving Equipment, TH414C, TH417C and TH514C Telehandler - Tier Iiib.

• Washer Type: Spring-Conical

• Material: Steel

• Weight (kg): 2.39

• Weight (lb): 1.08
