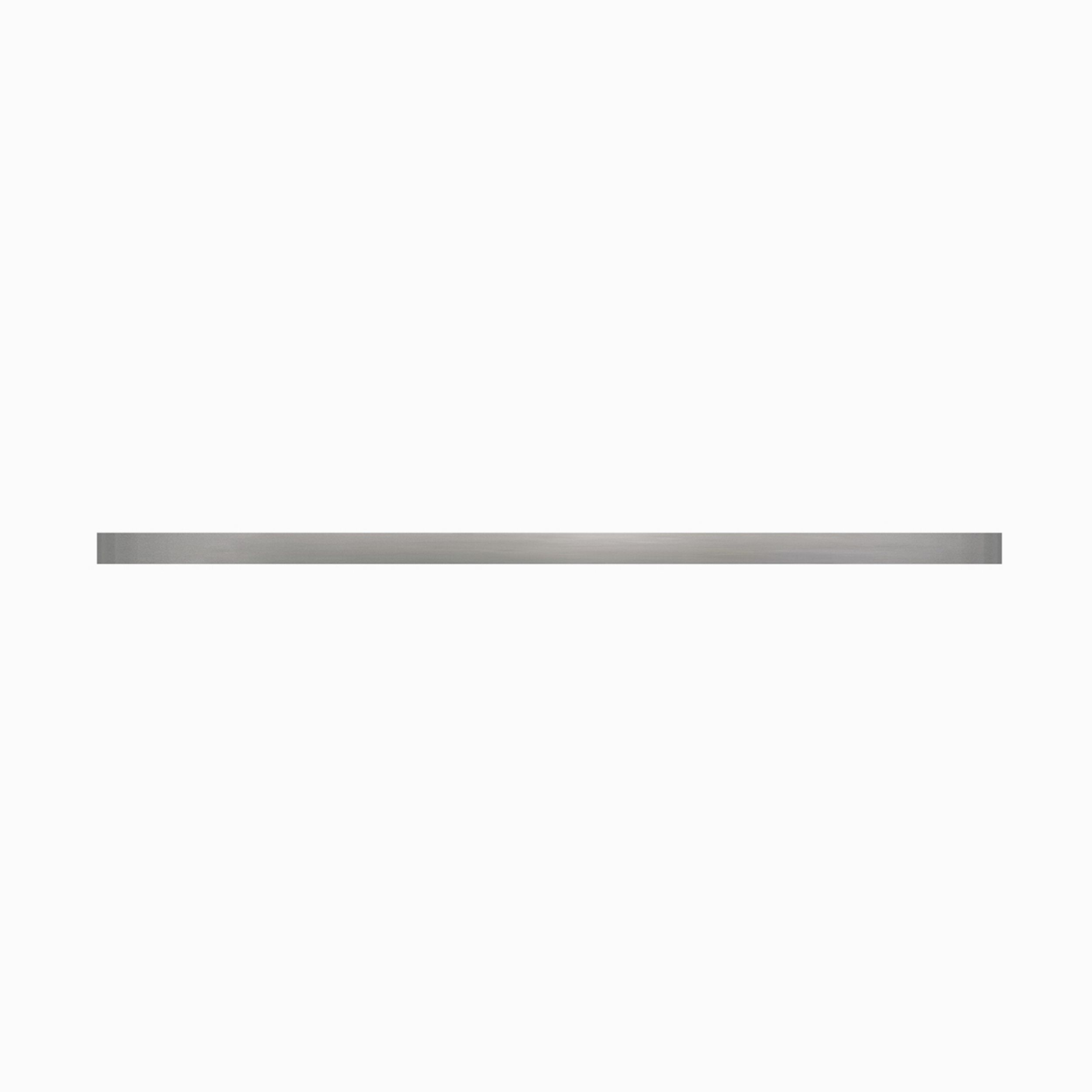

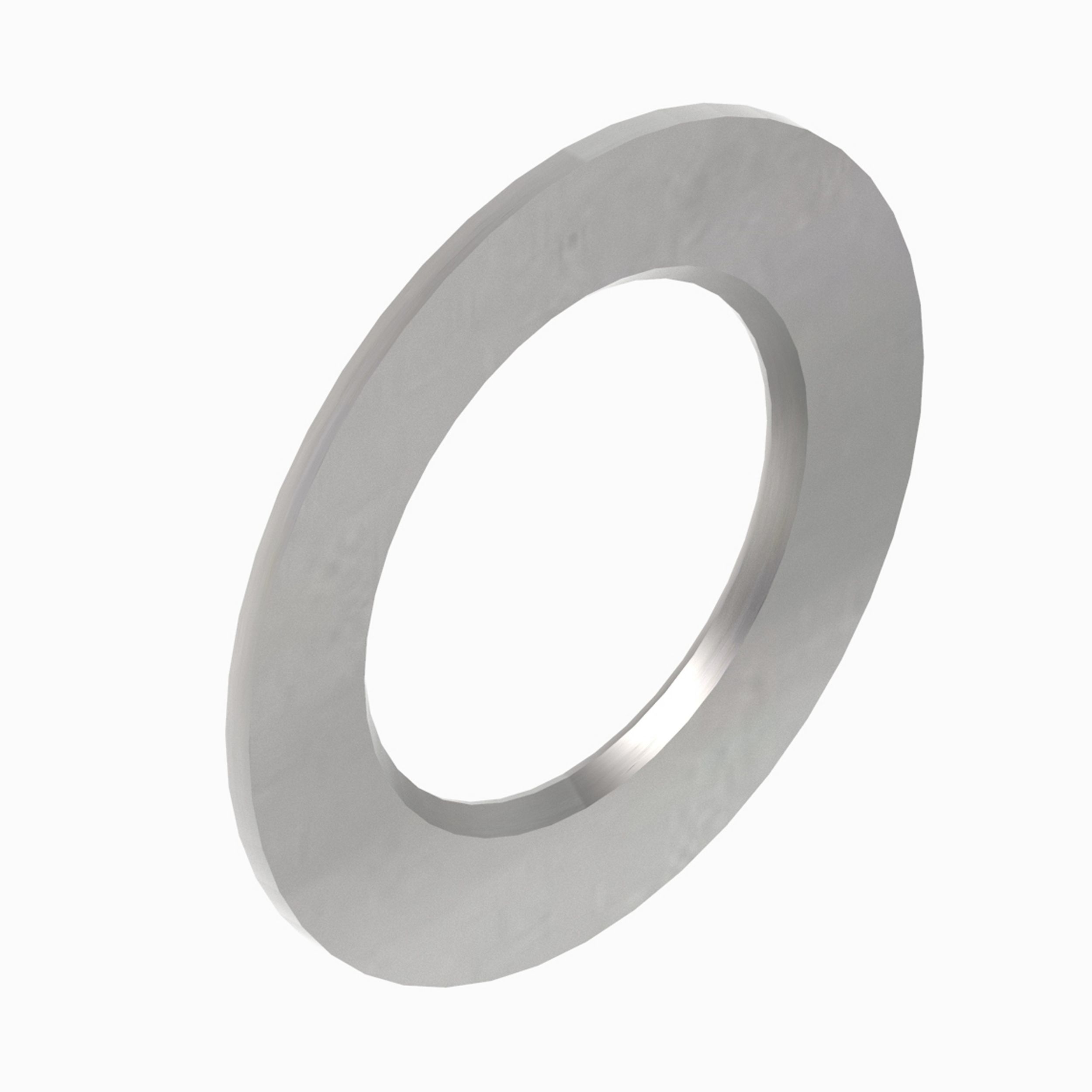

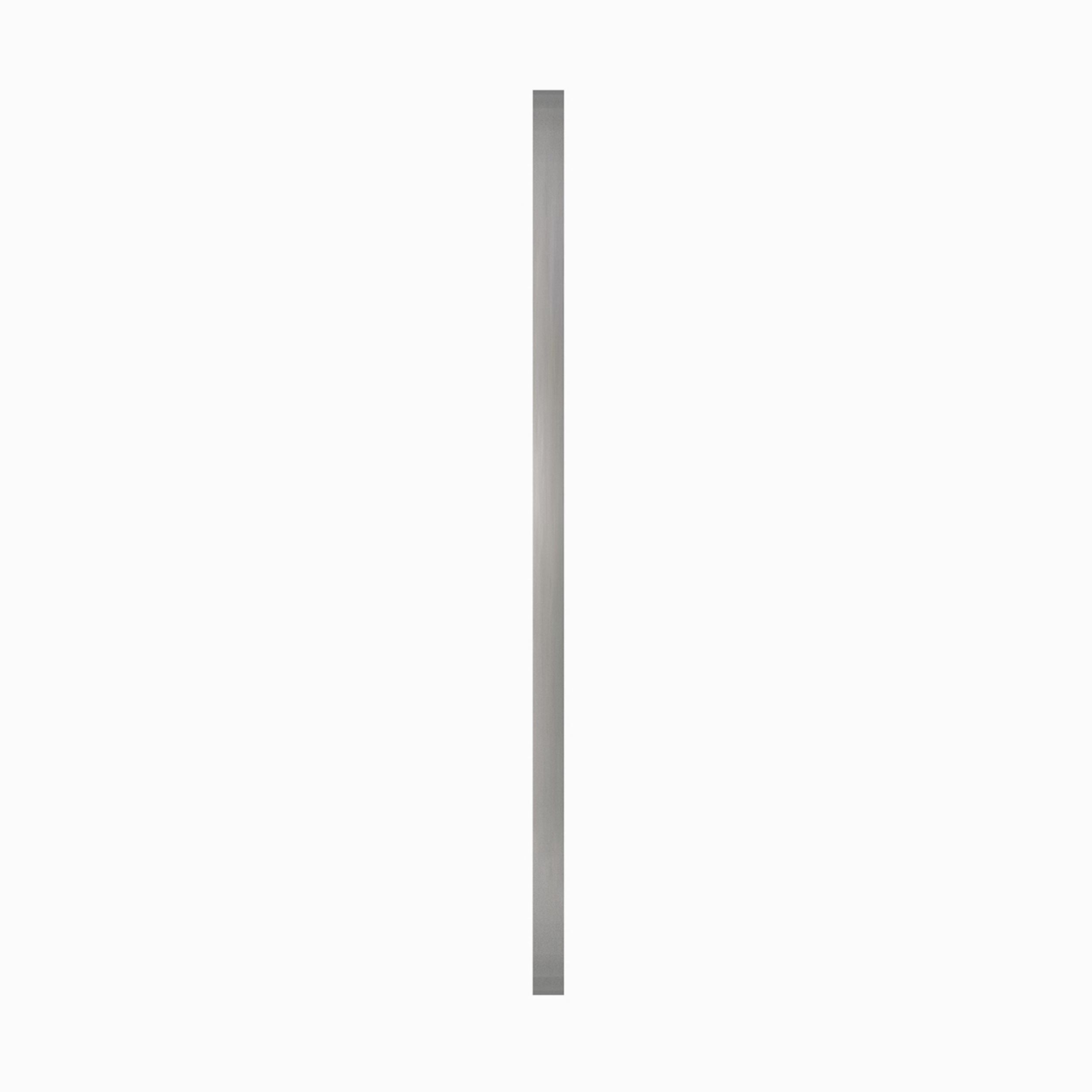

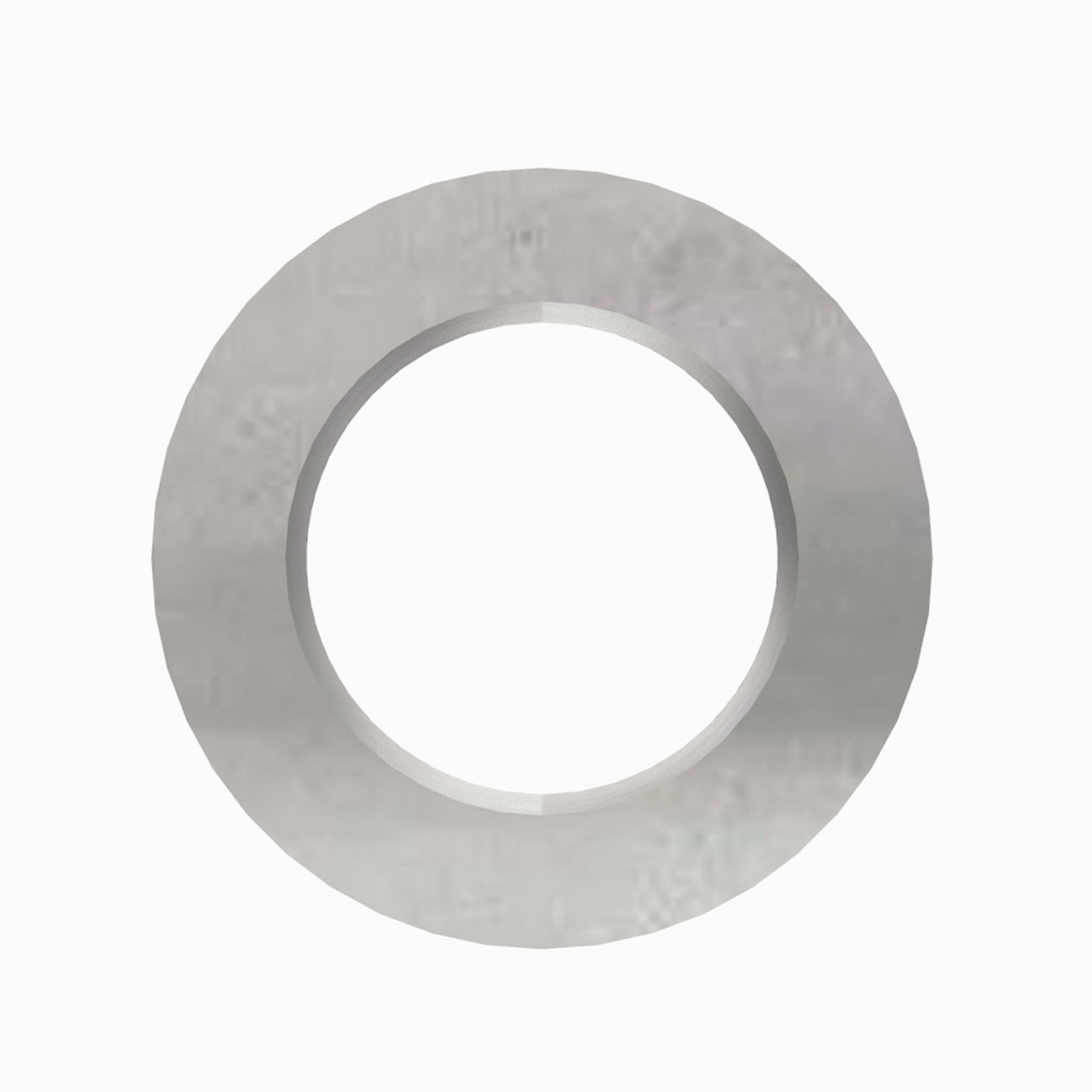

219-8756: РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА ШЕСТЕРНИ

Description:
A Differential Pinion Shim is a thin metal that is used to adjust the position of the pinion gear in a differential unit. It is placed between the pinion gear and the bearing that supports it in the differential housing. It is used to adjust the pinion gear's position to the ring gear, to achieve the correct backlash and bearing preload. The thickness of the shim can vary depending on the weight and size of the equipment it needs to support.

Attributes:
• High-level of hardness is achieved through heat treatment.
• Highly resilient and wear resistance.
• Manufactured to precise specifications and are built for durability, reliability, and productivity.

Applications:
A Differential Pinion Shim is a component of the differential unit, as it is used for proper gear meshing and reduces wear and noise, mostly used in Cat 434, 444, 424B Hd, 416D, 416E, 420D, 424D, 428D, 430D, 432D, 442D, 432E, 432F, 426 F2, 444F 416F2, and 450E Backhoe Loader, TH340B Telehandler, and 415F2 IL Industrial Loader.

• Inner Diameter (in): 1.78

• Inner Diameter (mm): 45.3

• Material: Spring Steel,Carbon Steel

• Outer Diameter (in): 2.95

• Outer Diameter (mm): 75

• Thickness (in): 0.12

• Thickness (mm): 3.1

• Weight (kg): 0.07

• Weight (lb): 0.15
