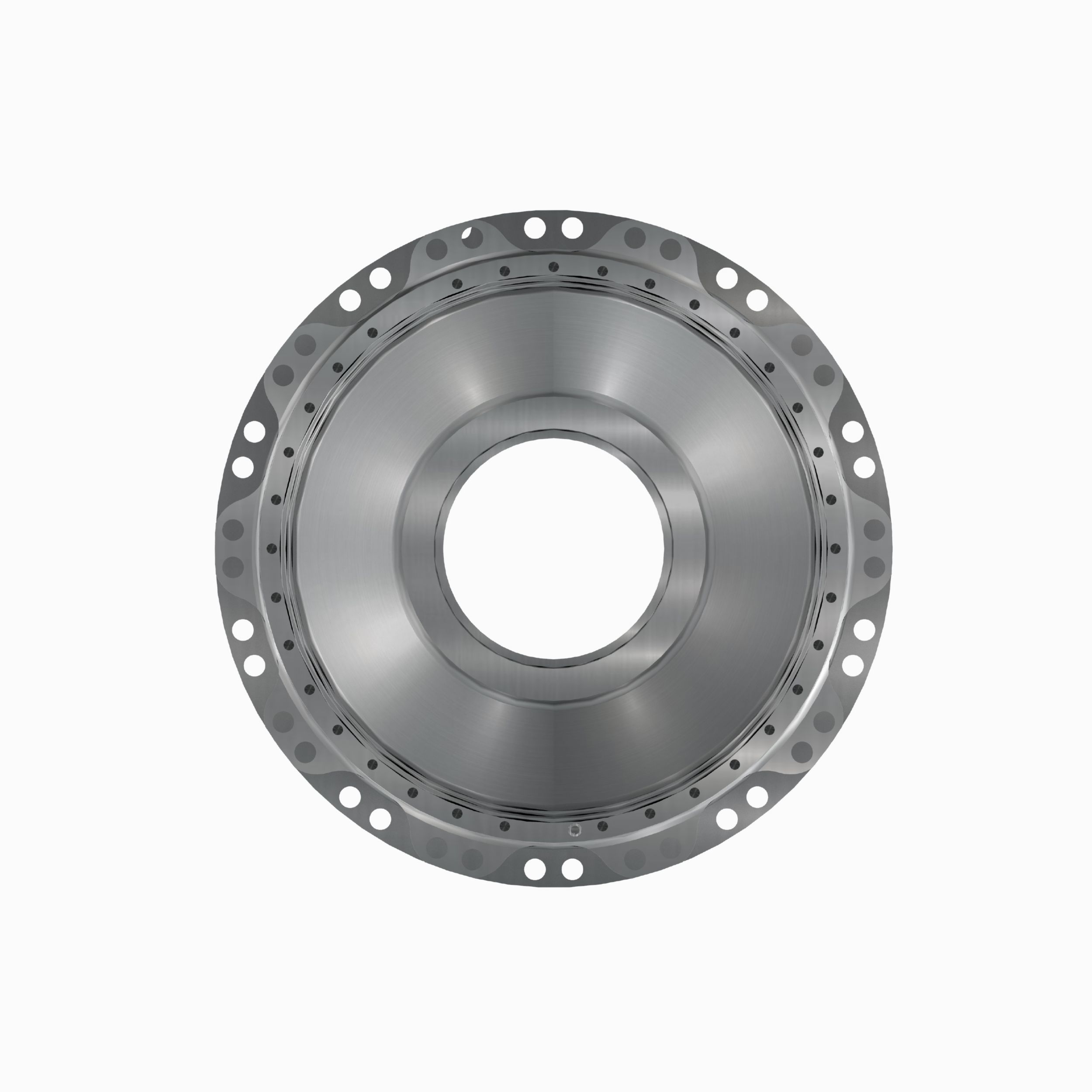

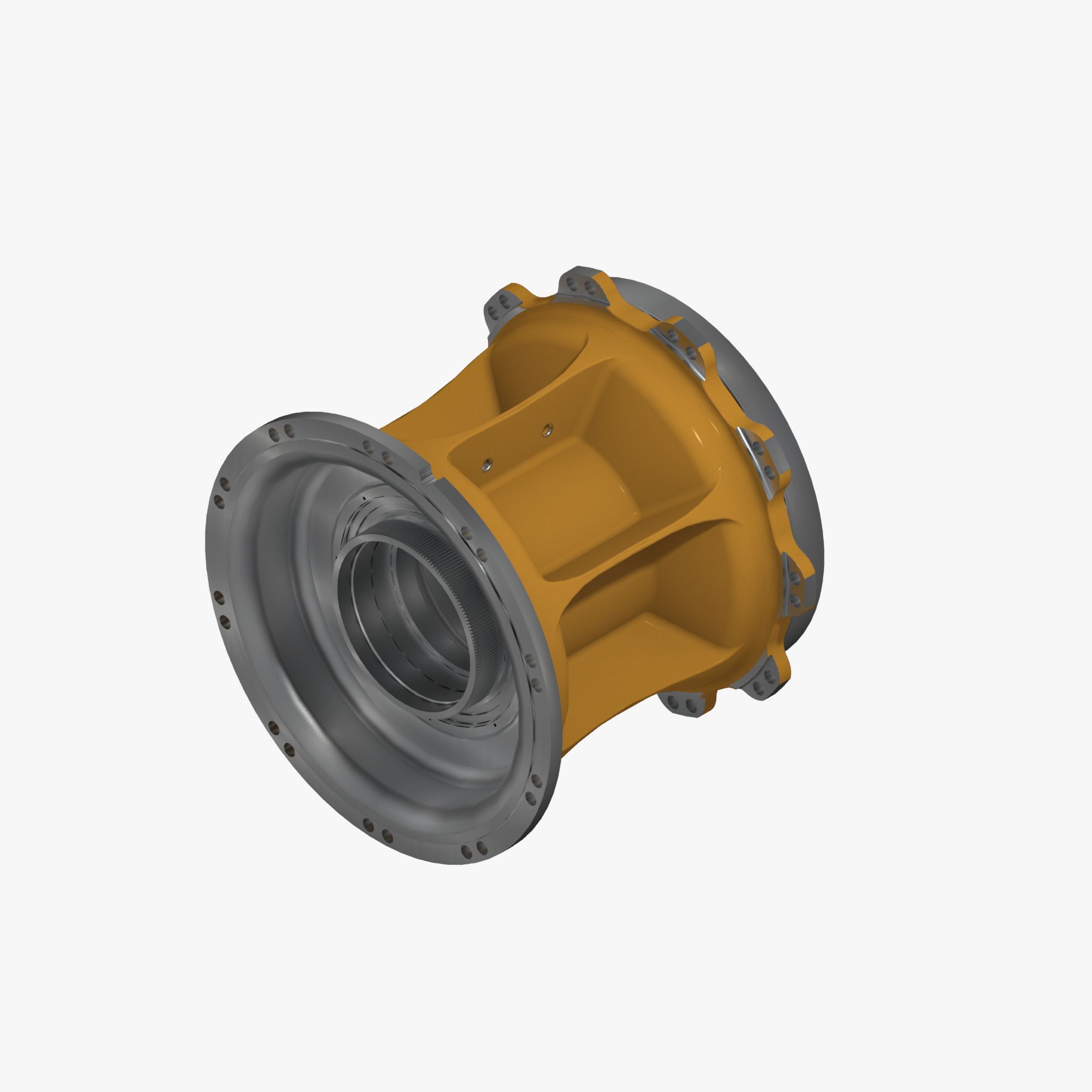

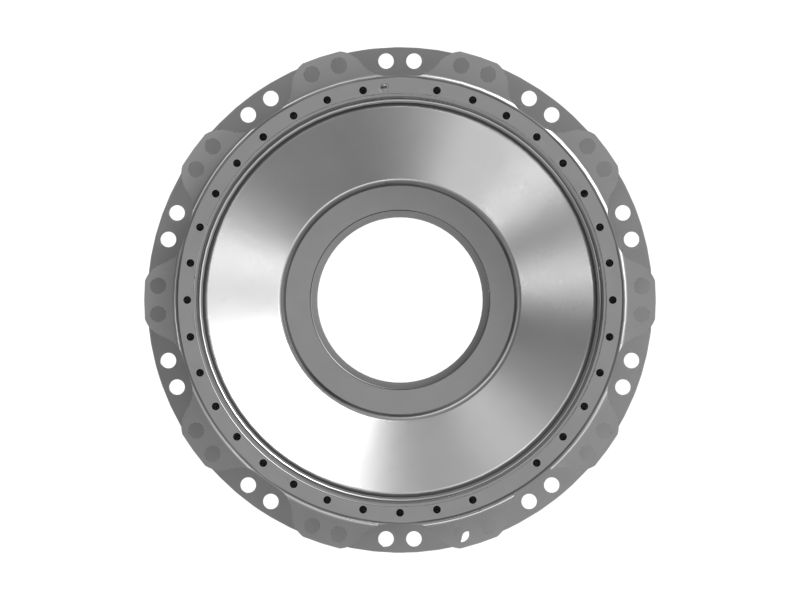

216-2624: КОЛЕСО ЗАДНЕЕ

Description:
A rear wheel rim for a power train is a component of a vehicle that provides a mounting point for the tire and connects to the powertrain to transmit power from the engine or motor to the rear wheel. The rim is typically made of metal, such as aluminum or steel, and has a circular shape with a flange on either side that allows the tire to be securely mounted. In a traditional internal combustion engine vehicle, the power train includes the transmission, driveshaft, differential, and axles, which connect to the rear wheel rim.

Attributes:
• It must be compatible with the vehicle's powertrain and tire specifications to ensure safe and efficient operation.
• External Spline Number of Teeth: 180
• Spline Pitch Diameter: 457.200 mm (18.000 in)

Applications:
A rear wheel rim for a power train is a component used in most automobiles, providing a mounting point for the tire and transmitting power from the engine to the rear wheels. It is only used in Cat 776D 777D 777E 777, 773D, 775D, 789D, 785C, 777F, 793F, 797F, and 797 Off -Highway Truck.

• Material Description: Cast Iron

• Inside Diameter (in): 14.02

• Inside Diameter (mm): 356

• Length (in): 37.04

• Length (mm): 940.7

• Material: Ductile Iron Casting,Ductile (Spheroidal) Iron

• Outside Diameter (in): 42.99

• Outside Diameter (mm): 1092

• Weight (lb): 3.31
