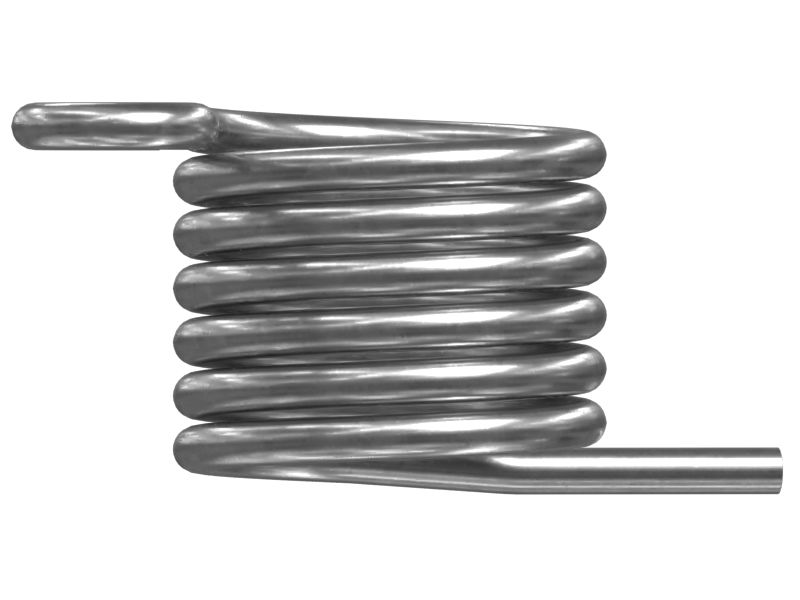

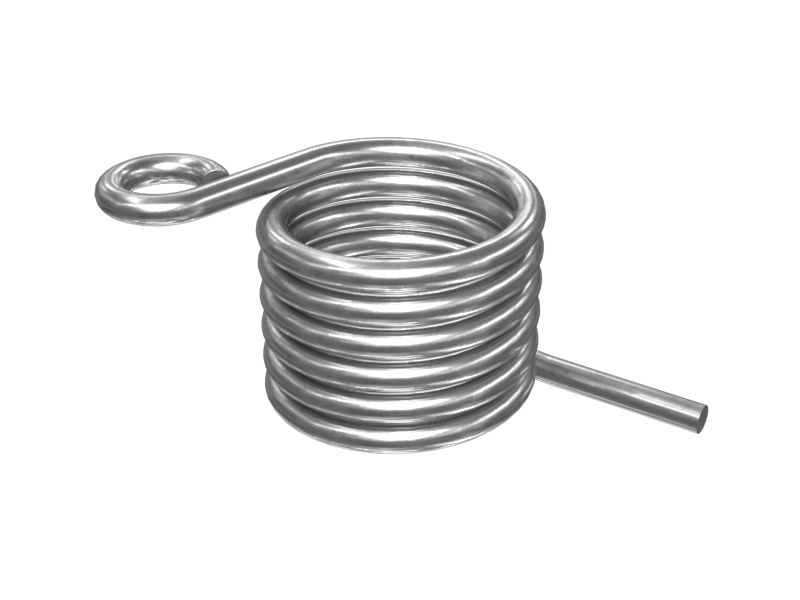

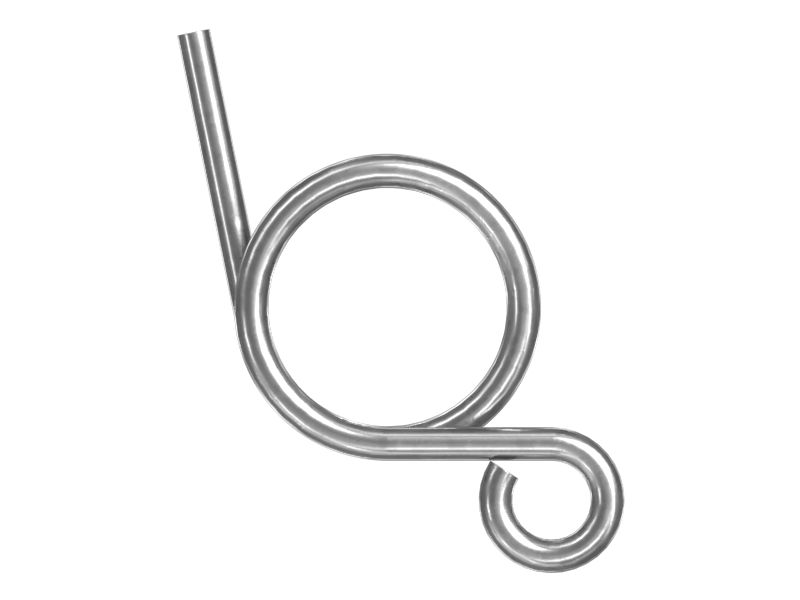

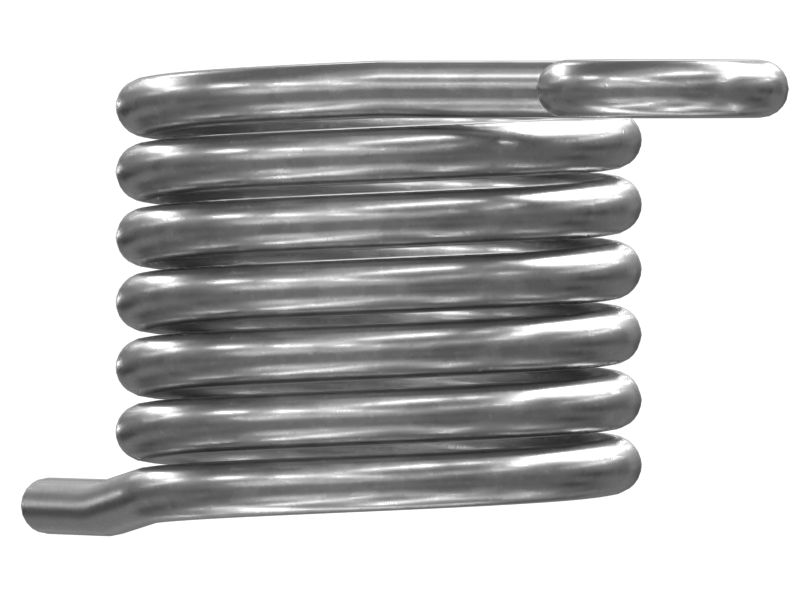

214-5012: ПРУЖИНА

Description:
Torsion springs are a type of mechanical spring that works by twisting or rotating around an axis. They are commonly used in governor control and brake pedals to provide a restoring force that helps to return the pedal to its original position after it has been depressed.

Attributes:
• Provides resistance to bending and lateral forces
• Capable of absorbing shock and vibrations
• Direction of the Coil is Right hand and the Total coils is 6.2.

Applications:
A Torsional Spring is used in the governor control and brake pedal systems, providing a reliable and efficient means of generating restoring forces that help to maintain the performance, this is mostly used in Cat 561N Pipelayer, D5N, D5R, and D6N Track Type Tractors.

• Inner Diameter (in): 1.37

• Inner Diameter (mm): 34.9

• Length (in): 1.58

• Length (mm): 40.2

• Outer Diameter (in): 1.75

• Outer Diameter (mm): 44.5

• Spring Type: Torsional

• Weight (kg): 0.13

• Weight (lb): 0.27

• Wire Size (in): 0.18

• Wire Size (mm): 4.8

• Material: Carbon Steel
