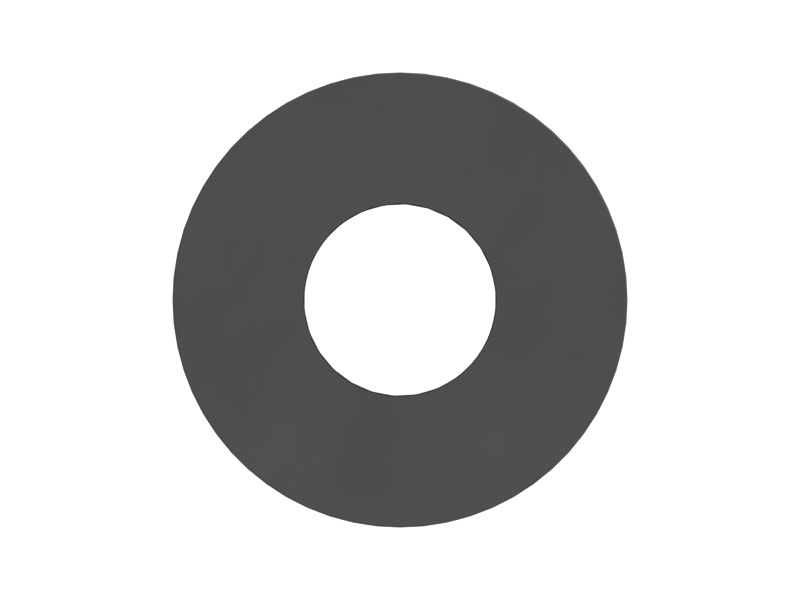

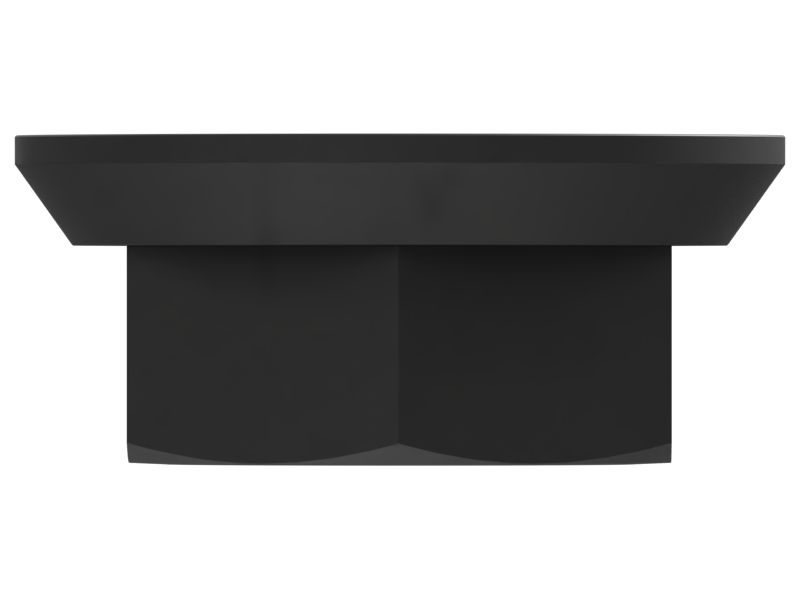

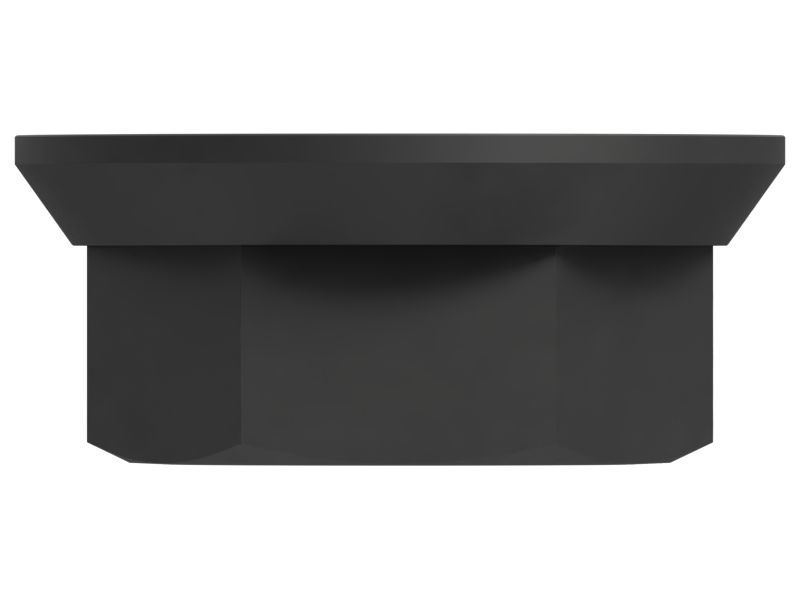

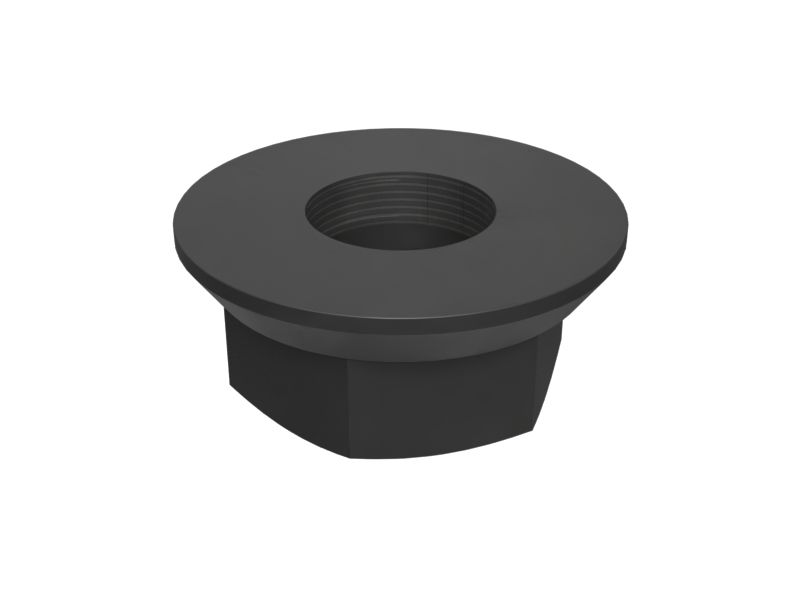

214-3966: ГАЙКА

A Flanged Hexagonal Nut is a type of fastener that combines the properties of a hexagonal nut and a washer. The flange provides a larger surface area for the nut to rest against the surface it's being fastened to, distributing the load over a larger area and reducing the risk of damage or deformation to the surface.

Attributes:
Zinc alloy coated which provides good resistance to corrosion.
Hexagonal shape of the nut provides a secure grip.

Applications:
A Flanged Hexagonal Nut is used to securely fasten and hold two or more objects together, widely used in Cat® Skid Steers, Generator Sets, Excavators, Engine (Piston), 7495 Surface Extraction, Trucks, Wheel Loader, Petroleum Genset Kits, On-Highway Trucks, Work Tools, Generator Sets, and Generator (Power).

• Flange Diameter (in): 0.71

• Flange Diameter (mm): 14

• Hex Size (in): 0.39

• Thread: RH Coarse

• Nut Type: Hex Flange

• Hex Size (mm): 10

• Thread Size (in - TPI) (in): M6-1

• Material: Steel ,Carbon Steel,Alloy Zinc,Corrosion Preventa

• Weight (kg): 0.003

• Weight (lb): 0.01

• Thread Size (dia x pitch) (mm): M6x1

• Coating: Zinc Flake-Black

• Class or Grade: ISO 898-2 Class 10

• Hand of Thread: RH
