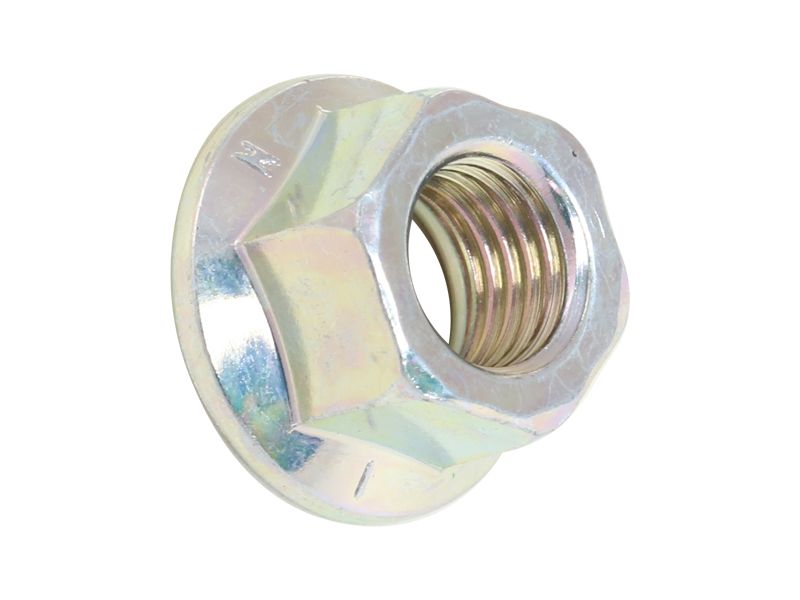

212-8510: ГАЙКА

A flanged hexagonal nut is a type of fastener that combines the properties of a hexagonal nut and a washer. The flange provides a larger surface area for the nut to rest against the surface it's being fastened to, distributing the load over a larger area and reducing the risk of damage or deformation to the surface.

Attributes:
Flange helps to prevent the nut from loosening due to vibration
Hexagonal shape of the nut provides a secure grip

Applications:
A flanged hexagonal nut is used to securely fasten and hold two or more objects together, mostly used in Cat® 236B, 242B, 246B, 246C, 247C, 248B, 252B, 256C, 257B, 259B, 262B, 262C, 267B, 268B, 272C, 277B, 277C, 279C, 287B, 287C, 289C, 297C and 299C Skid Steers, 277C, 289C, 297C, 312, 312C, 315D, 319D, 320, 320C, 323D, and 908H OEM Applications, 3044C, 3412, 3412C and C3.4 Engine (Piston), 311C, 312C, 313C, 314C, 315C, 315D, 318C, 319C, 319D, 320C, 320D, 321C, 322C and 323D Excavators, 906, 906H, 907H, 908 and 908H Wheel Loader, D11T, and D9T Track Type Tractor.

• Flange Diameter (in): 0.77

• Flange Diameter (mm): 19.5

• Hex Size (in): 0.55

• Thread: RH Fine

• Nut Type: Hex Flange

• Hex Size (mm): 14

• Thread Size (in - TPI) (in): M10-1.25

• Material: Steel

• Weight (kg): 0.01

• Weight (lb): 0.02

• Thread Size (dia x pitch) (mm): M10x1.25

• Class or Grade: See Drawing

• Hand of Thread: RH
