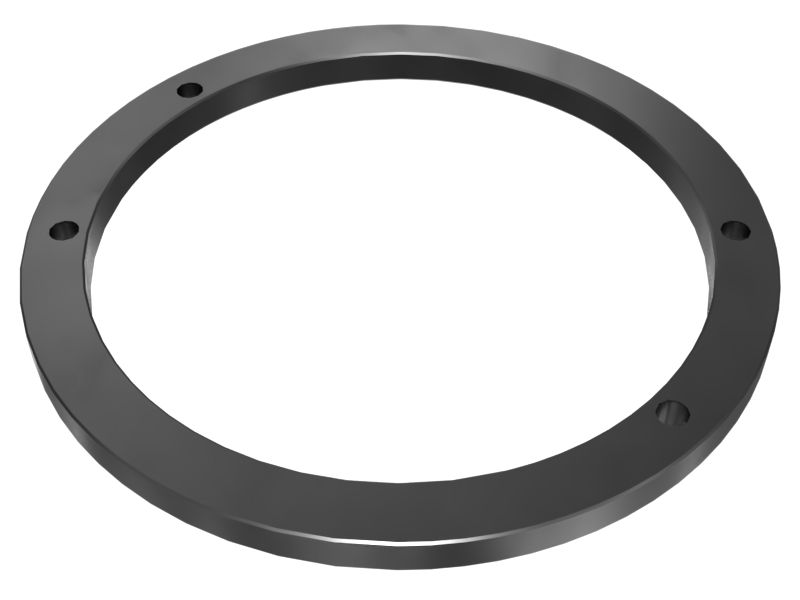

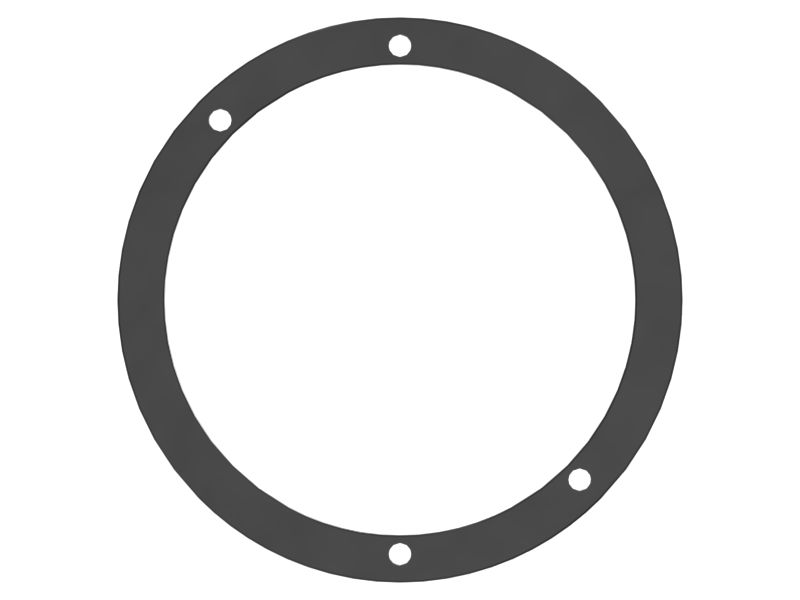

208-6034: 350mm Outer Diameter Measuring Ring

The Measuring Ring plays a necessary role in ensuring accurate assembly of the final drive by simulating the spanner nut's thickness. It is bolted to the final drive using a predetermined bearing load, which provides a stable environment for obtaining accurate measurements. These measurements are needed for later use when tightening the final drive spanner nut, ensuring that the assembly is secured with the correct amount of torque. This precision in the measurement process helps prevent issues like over-tightening or under-tightening, which leads to mechanical failures.

Attributes:
• Simulates spanner nut thickness for accurate measurements.
• Provides a reliable reference point for torque calculations.

Applications:
The Measuring Ring ensures accurate measurements during the assembly of final drive components by simulating the spanner nut's thickness and bolting to the final drive, providing a reliable reference point for tightening the spanner nut to the exact torque specifications.

• Outer Diameter (mm): 350

• Outer Diameter (in): 13.78

• Inner Diameter (mm): 292

• Inner Diameter (in): 11.496

• Thickness (mm): 18

• Thickness (in): 0.709

• Internal Thread: M16x2-6H

• Weight (kg): 4.031

• Weight (lb): 8.887

• Material: Steel,Carbon Steel,Coating Mixed
