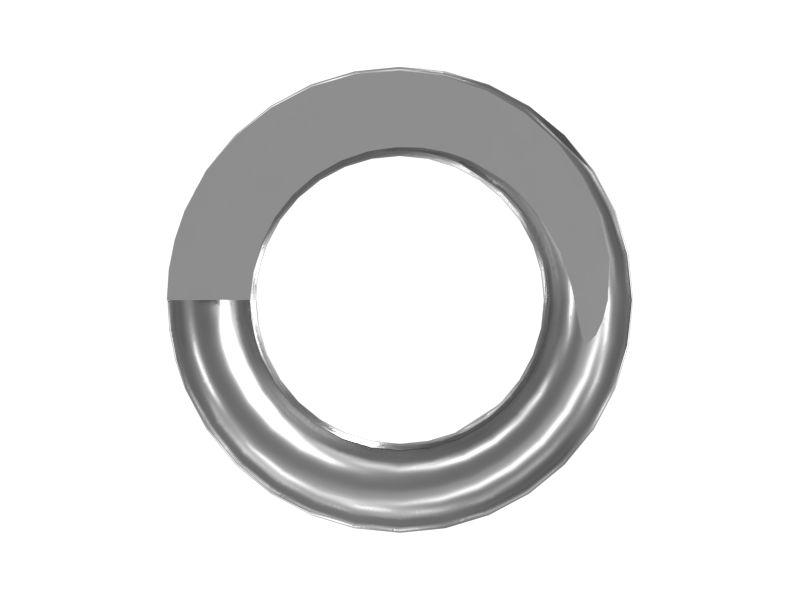

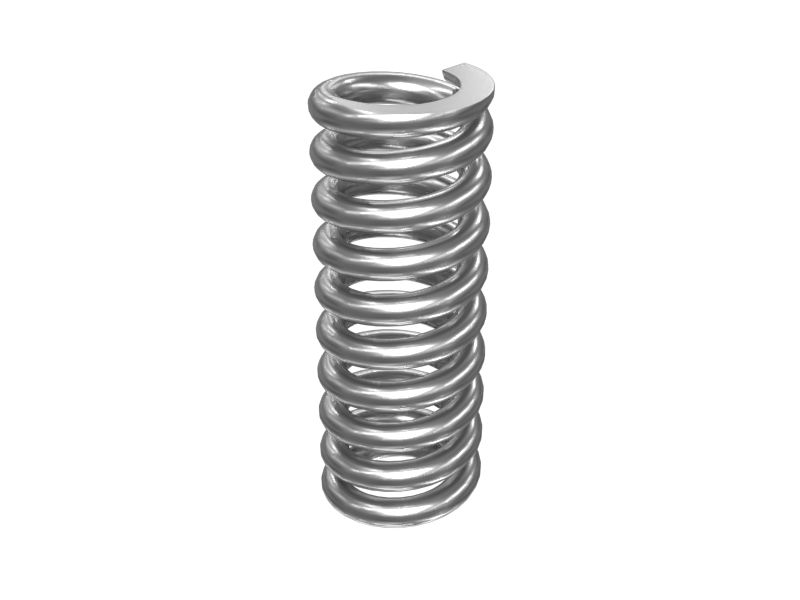

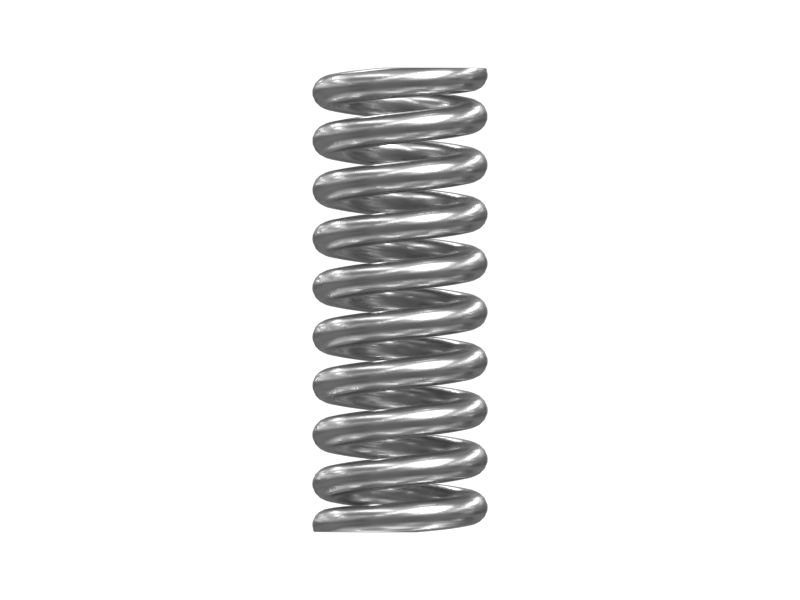

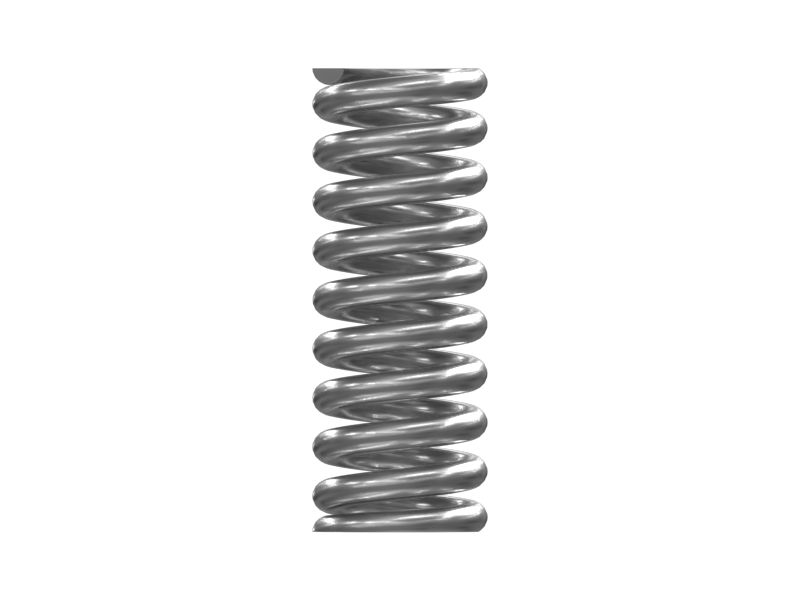

203-2076: ПРУЖИНА

The Pressure Control Valve Spring regulates the hydraulic pressure to control the lowering motion of the boom. This spring is meticulously designed to withstand loads and harsh working conditions, ensuring smooth and controlled movement of the boom during different operations. By effectively managing the hydraulic pressure, it ensures the safety and stability of the equipment, preventing sudden drops or jerky movements.

Attributes:
• Spring rate of 48.28 newtons per millimeter.
• The maximum solid length of the spring is 37.63 millimeters.
• The direction of the coil is right-hand side.
• Total coils are 10.
• Active coils are 8.
• Corrosion resistance.
• Temperature resistance.
• High tensile strength.

Applications:
The Pressure Control Valve Spring is used to force the valve, regulating the opening and closing action to control the flow of hydraulic fluid and maintain desired pressure levels, allowing operators to achieve accurate positioning of the boom for different tasks.

• Material: Alloy Steel
