203-1063: БОЛТ ЗАПЛЕЧИКА

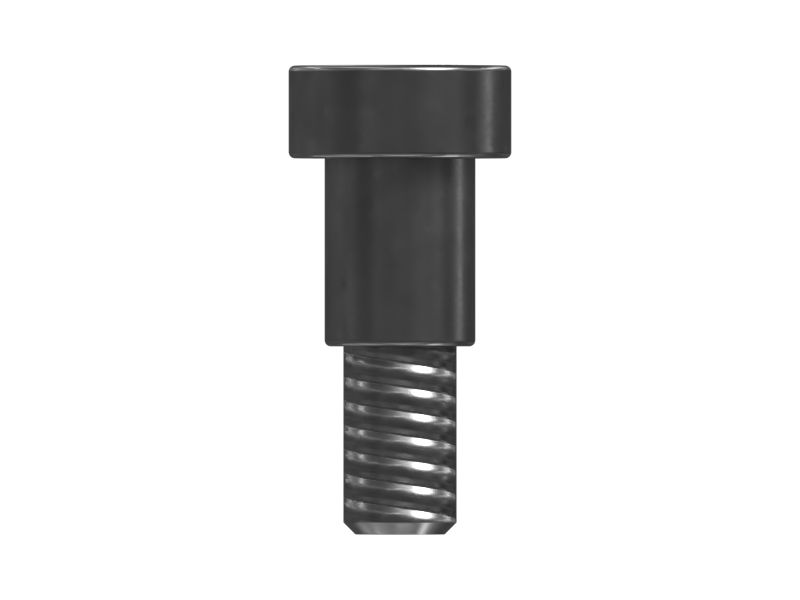

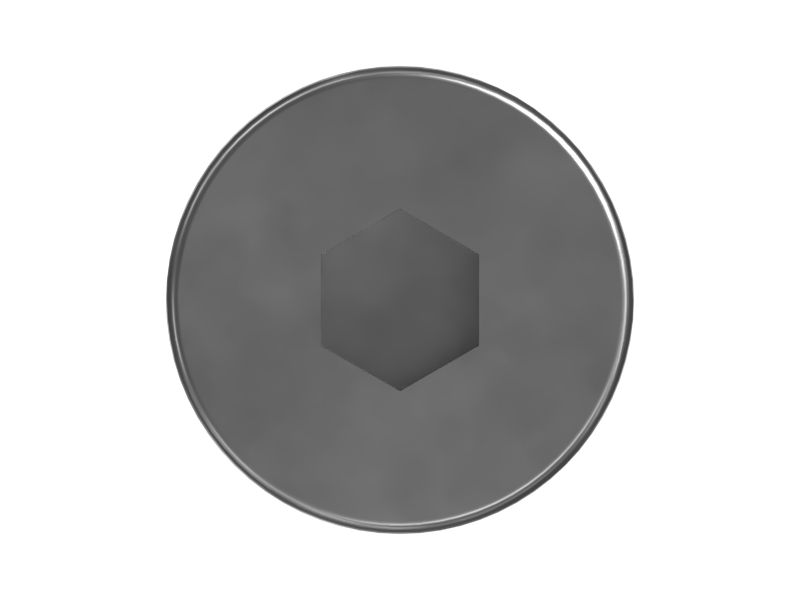

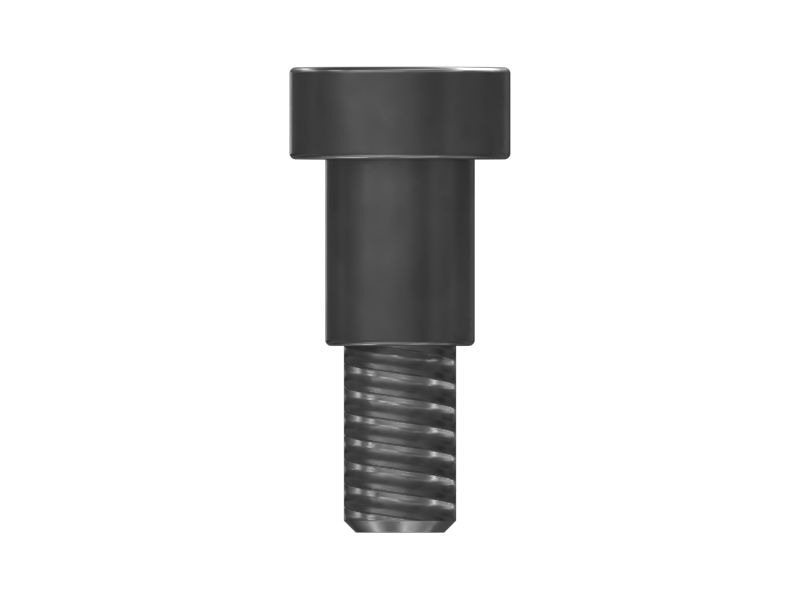

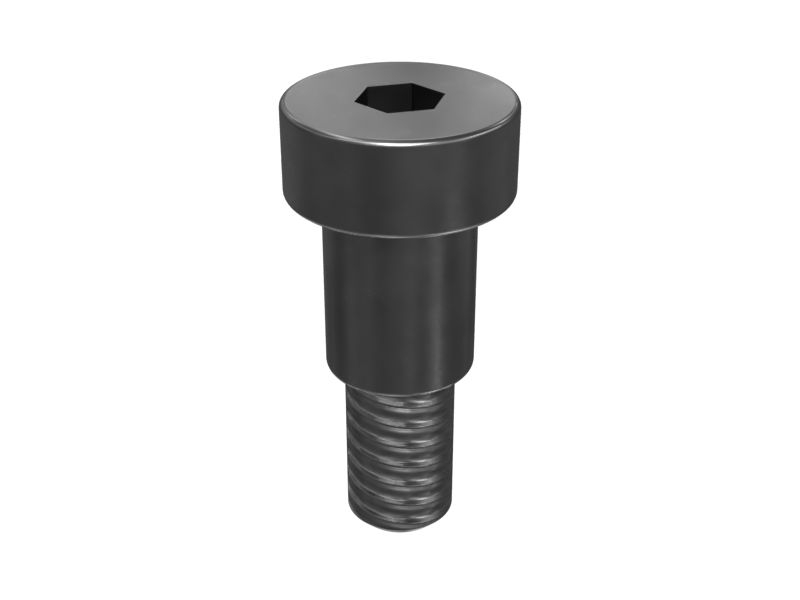

The Shoulder Bolt is a type of fastener used in the swivel slide seat mechanism of the truck's seat assembly. The main body of the shoulder bolt is cylindrical and consists of two distinct sections, the shoulder and the threaded portion. The shoulder is a larger diameter section of the bolt located between the head and the threaded section. It's typically smooth and unthreaded, serving as a load-bearing surface, spacer, or alignment reference. The threaded section is located at the end of the shoulder bolt and is used to secure the bolt into a threaded hole or nut. Designed to provide stability and adjustability, this shoulder bolt facilitates the smooth rotation and secure attachment of the swivel seat, enhancing operator comfort and convenience.

Attributes:
• Thread Type: 3/8-16-2A
• Precise alignment and spacing capabilities
• Simplifies assembly process by eliminating the need for additional spacers
• Shoulder serves as a spacer or alignment reference

Applications:
This Shoulder Bolt is used in the swivel slide seat mechanism of the seat assembly, enabling secure rotation and adjustment of the operator's seat.

• Thread Size (dia x pitch) (mm): 3/8x16

• Class or Grade: ASTM A574 (180 ksi)

• Coating: Zinc

• Hand of Thread: RH

• Material: Alloy Zinc,Alloy Steel
