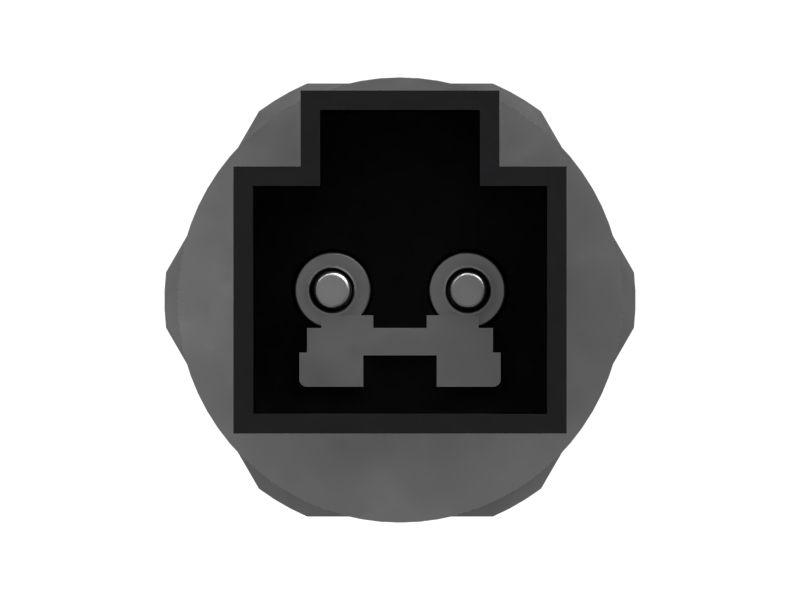

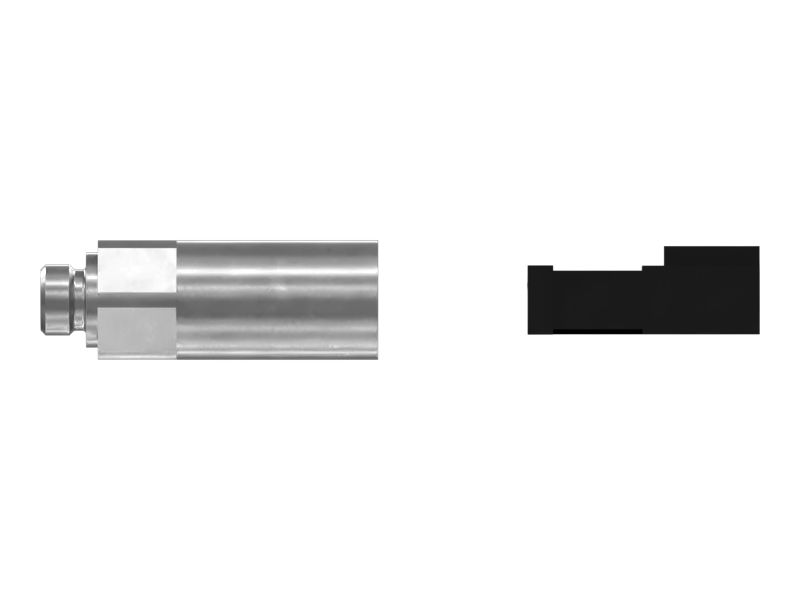

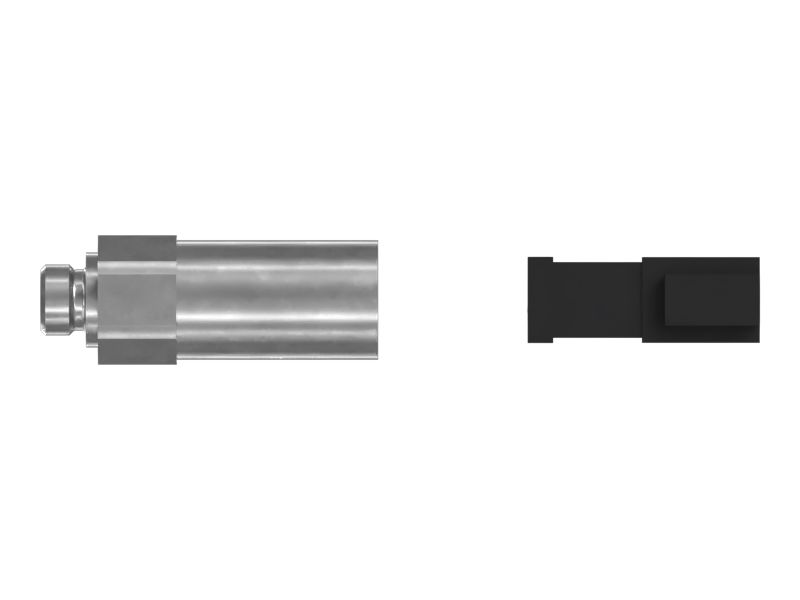

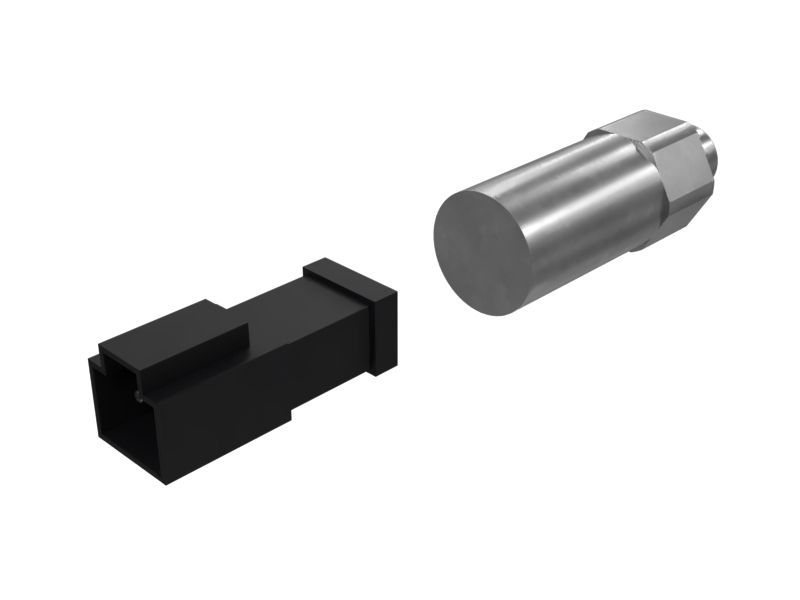

202-9002: ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ

Description:
A Pressure Switch for boom lowering control lines is a device installed in the hydraulic circuit of a boom system to monitor and control the pressure levels. It ensures safe operation by detecting the pressure in the control lines and triggering appropriate actions based on predefined thresholds. By continuously monitoring the pressure, the switch initiates safety measures such as alarms, emergency stops, or alerts to the operator if the pressure exceeds or falls below the set limits, preventing accidents and ensuring smooth boom-lowering operations.

Attributes:
• The pressure switch operating temperature is -40°C to 121°C.
• The pressure switch vibration rating is 10G's 18 to 2000 Hz.
• Withstand harsh operating conditions, such as high pressures, vibrations, and temperature variations.

Applications:
A Pressure Switch for boom lowering control lines is used to monitor the pressure in the hydraulic circuits controlling the lifting and lowering of loads, enhancing safety during material handling. It is mainly used in Cat 315D, 319D, 320C, 322C, 323D, 324D, 325C, 325D, 329D, 330C, 330D, 336D, 345C, 345D, 349D, 365B, 365C, 374D, 385B, 385C, 385D, 390D, and M325C Excavators, 325D, 330D, 345C, 365C, 385C, M325D, and M330D Material Handler.

• Diameter (in): 1.03

• Diameter (mm): 26.2

• Hex Size (in): 0.94

• Hex Size (mm): 23.8

• Length (in): 2.46

• Length (mm): 62.6

• Material: Stainless Steel

• Thread: 9/16-18

• Weight (kg): 0.11

• Weight (lb): 0.24

• Wire Length (in): 7.87

• Wire Length (mm): 200
