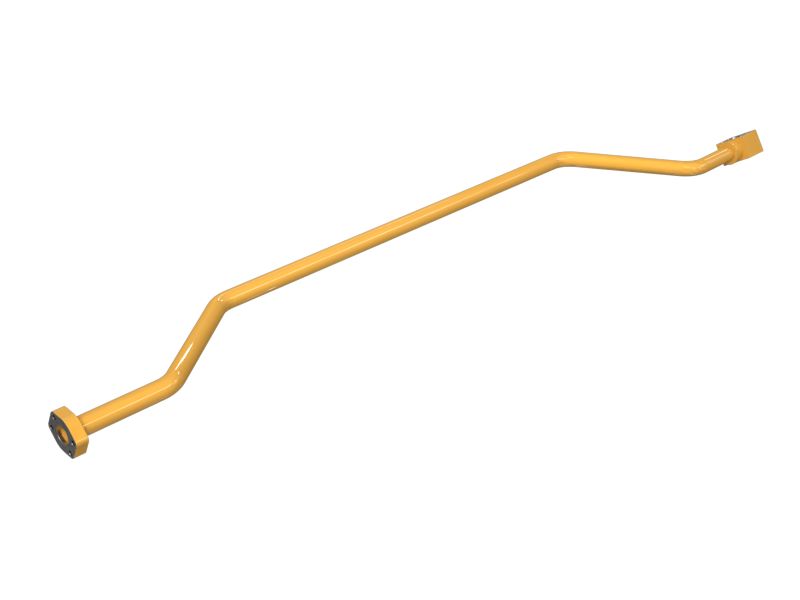

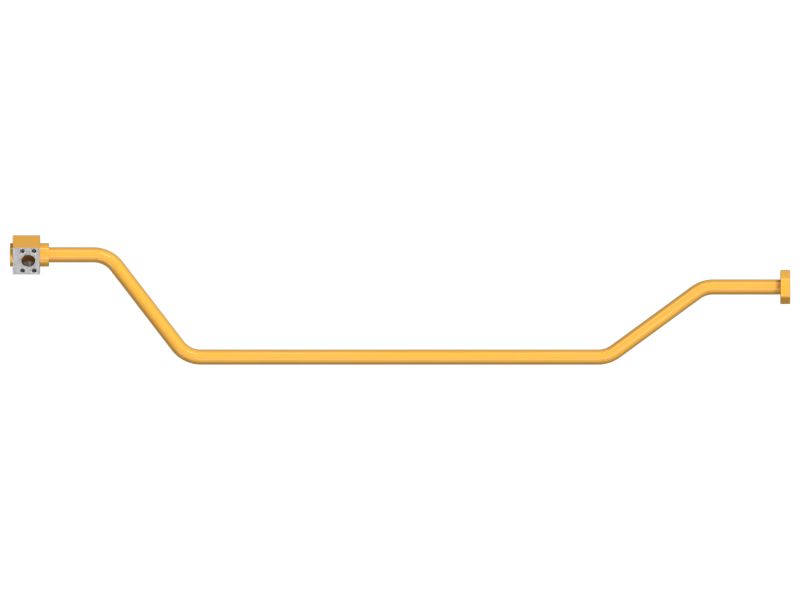

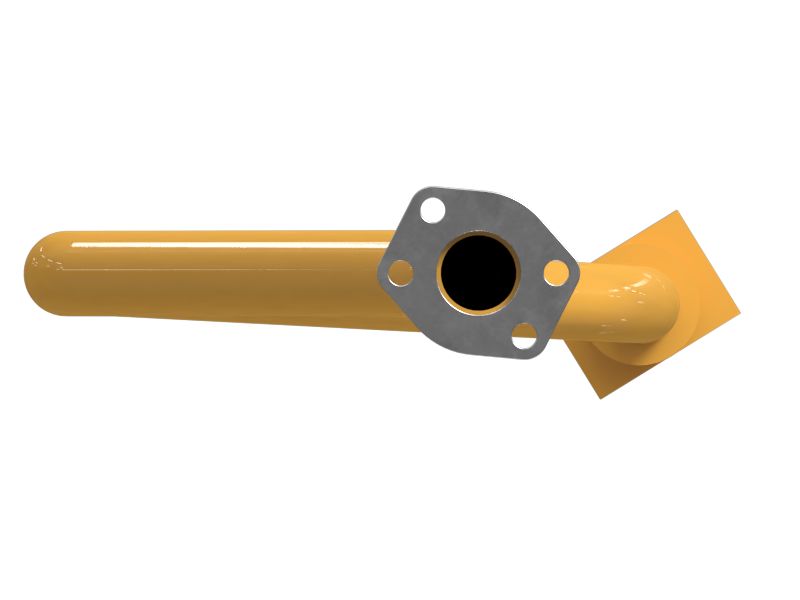

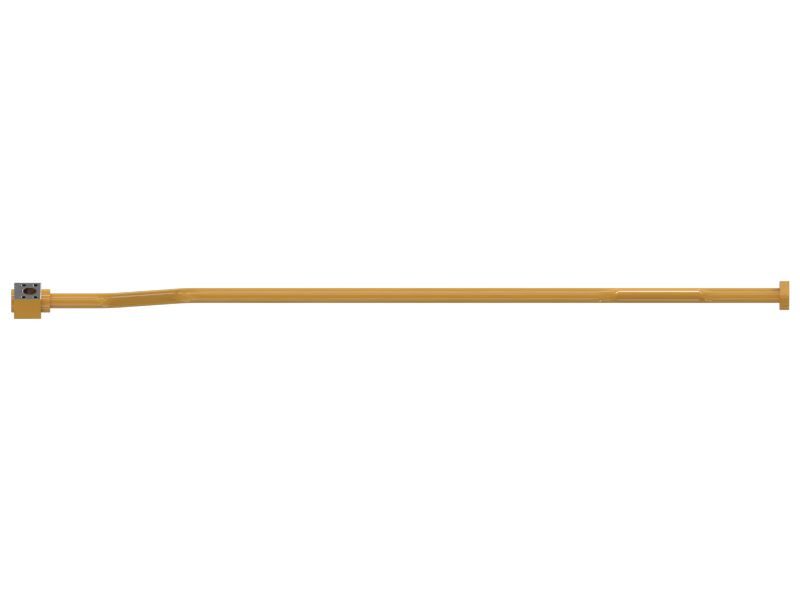

1U-0855: ТРУБКА В СБОРЕ

The Scraper Draft Frame Tube serves as a conduit for hydraulic fluid between the pump, valves, and hydraulic cylinders in the draft frame of scrapers. The primary function of the scraper draft frame tube is to transfer hydraulic fluid from the pump to the hydraulic cylinders and valves within the draft frame of the scraper to enable movement and control of the scraper's blade and other attachments, facilitating efficient soil excavation, leveling, and mining operations.

Attributes:
• Equipped with hydraulic fittings for secure connections.
• Withstand extreme pressures and harsh operating conditions.
• Provide optimal flow rates for efficient hydraulic system performance.

Applications:
The Scraper Draft Frame Tube is located within the draft frame of the scraper, connecting the hydraulic pump to the hydraulic cylinders and valves. It runs through the structural framework of the equipment, often secured along the internal chassis, ensuring protected and efficient fluid transfer to the operational components responsible for blade movement and other hydraulic functions.

• Material: Steel

• Outer Diameter (mm): 44

• Connector Type: Flange; Hydraulic Tee

• Flange Type: -24 Code 61

• Outer Diameter (in): 1.75
