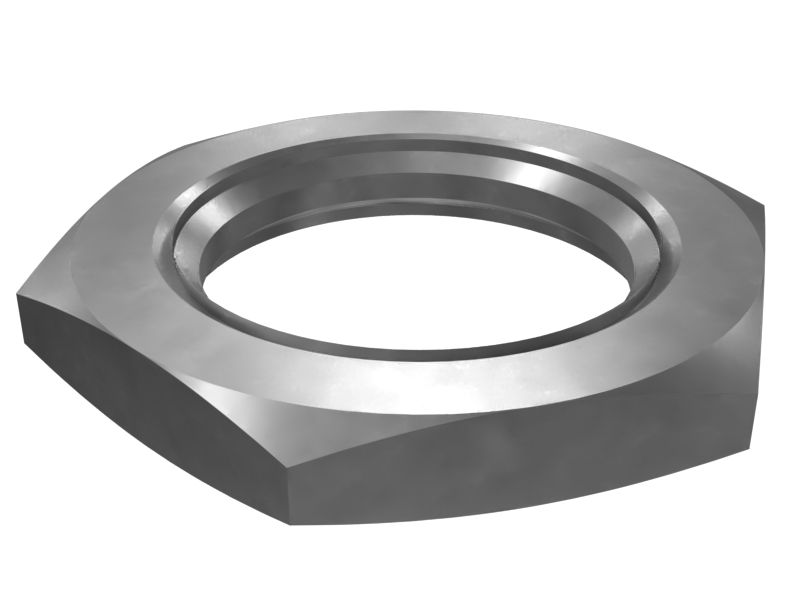

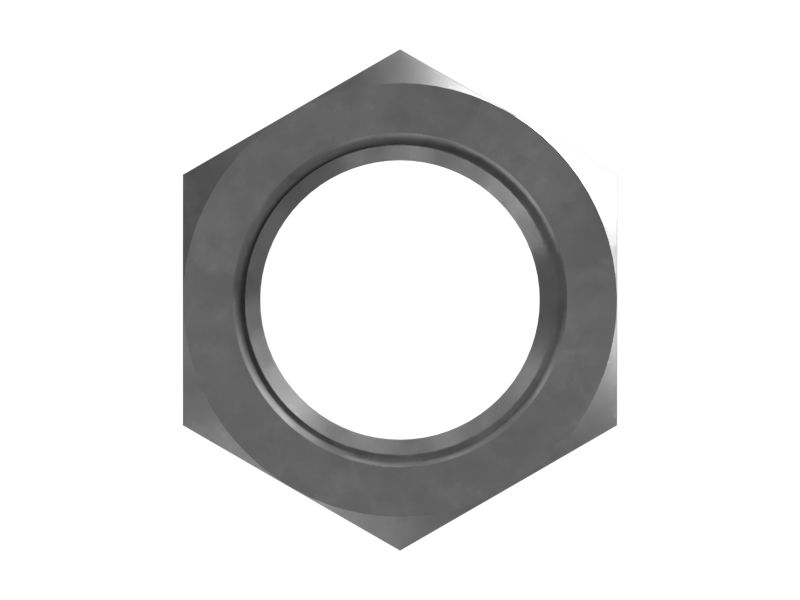

1M-6781: ГАЙКА

A jam nut is a type of locking nut used to prevent a bolt or screw from loosening. It is typically thinner than regular nuts and designed to be tightened against another nut or a surface to prevent the main nut from backing off due to vibration.

Attributes:
Helps to ensure that the joint remains secure and tight, even under extreme conditions
Manufactured to precise specifications and built for durability, reliability, and productivity

Applications:
A jam nut is used to create a jammed position that helps to keep the standard nut in place, widely used in Cat® Screed, Motor Graders, Engine (Piston), Excavators, Skid Steers, Tree Harvesters, OEM Applications, Generator Sets, Generator (Power), Lift Truck, Skidder, Turbine Engine, Pipelayer, Track Type Tractor, Wheel Tractor Scrapers, Scraper, Truck, Wagon, Bottom Dump Body, Wheel Type Tractor (For Dozer), Compactor, Wheel Loader, Track Loader, Bulldozer, Paving Equipment, Power Systems, Engine-General Platform (C15), Articulated Truck, Goer, Cargo - Tanker, Power Shift, Drills, Underground Mining, Material Handler, Powertrain.

• Hex Size (in): 0.87

• Hex Size (mm): 22.2

• Nut Type: Hex

• Thread Size (in - TPI) (in): 5/8-32

• Thread: 5/8 - 32

• Weight (kg): 0.01

• Weight (lb): 0.01

• Thread Size (dia x pitch) (mm): 5/8x32

• Coating: Zinc

• Class or Grade: None

• Hand of Thread: RH

• Material: Carbon Steel,Alloy Zinc
