1K-6856: ГАЙКА

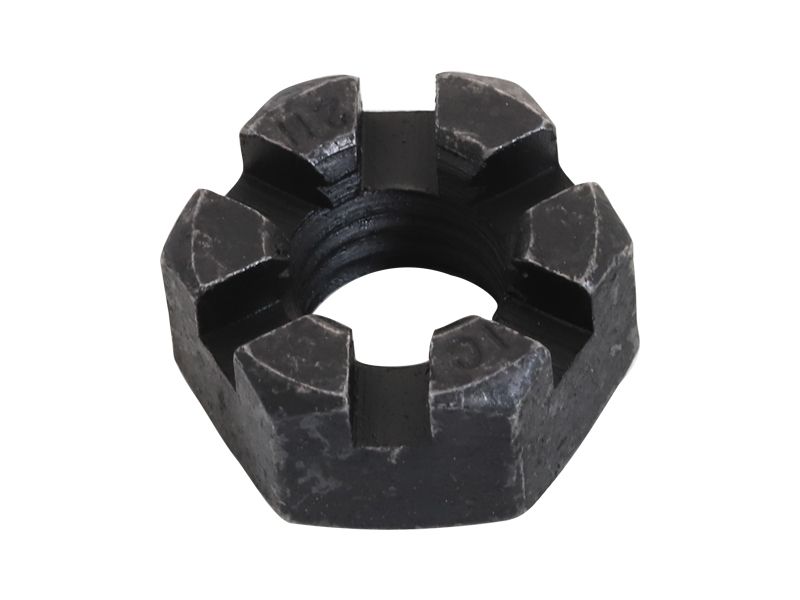

A slotted hexagonal nut is a type of fastener designed with slot cuts on the end of the nut, which allow for the use of a cotter pin or safety wire to prevent the nut from loosening due to vibration or other stresses during operation. It is typically made of a durable material such as steel and is designed to fit over a bolt or threaded rod.

Attributes:
Offers high strength and ductility
Provided with a slot width of 0.15 inches to accommodate a cotter pin

Applications:
A slotted hexagonal nut is used to provide a secure and reliable connection between two parts, widely used in Cat® Cable Control, Skid Steers, Tree Harvester, Excavators, Pipelayer, Wheel Tractor Scrapers, Scraper, Wheel Loader, Track Loader, Track Type Tractor, Bulldozer, Engine (Piston), Generator Set, Work Tools machine families.

• Hex Size (in): 0.88

• Hex Size (mm): 22.23

• Nut Type: Hex

• Material: Steel,Carbon Steel

• Thread Size (in - TPI) (in): 1/2-13

• Thread: 1/2 - 13

• Weight (kg): 0.03

• Weight (lb): 0.06

• Thread Size (dia x pitch) (mm): 1/2x13

• Class or Grade: SAE J995 Grade 5 (120 ksi)

• Hand of Thread: RH
