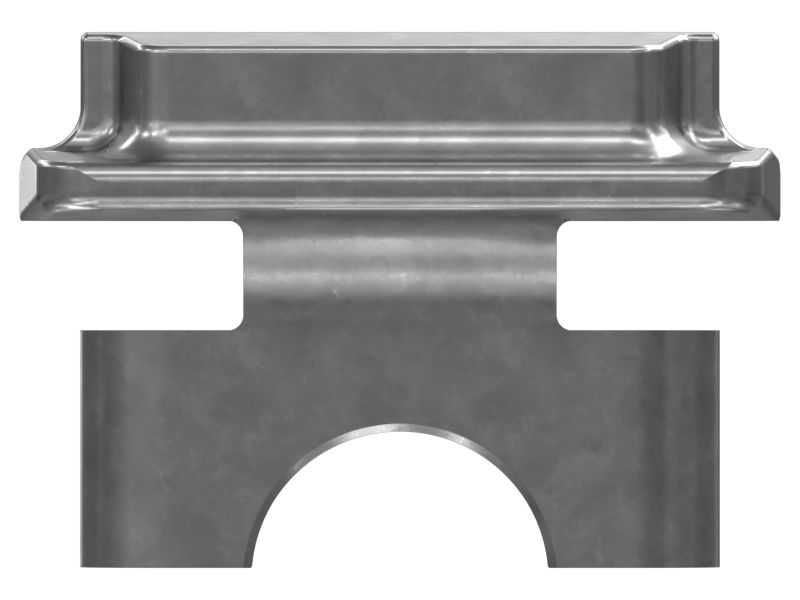

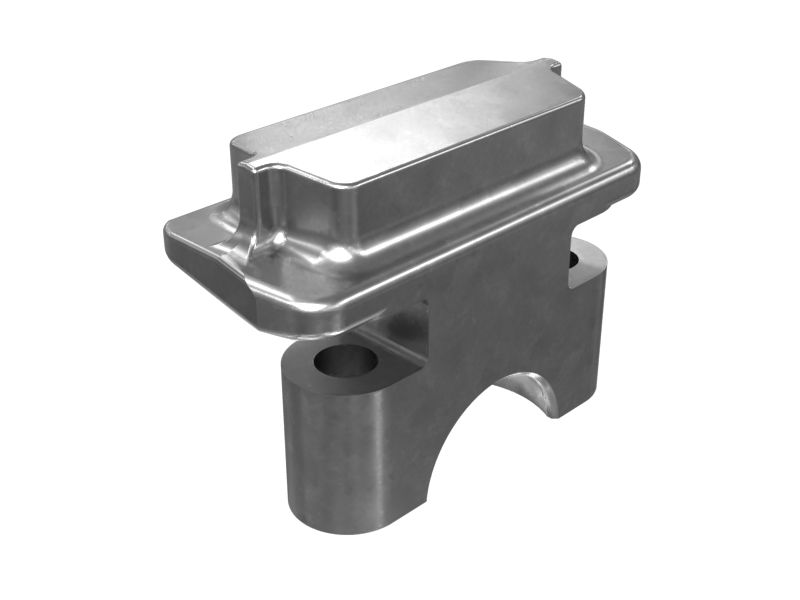

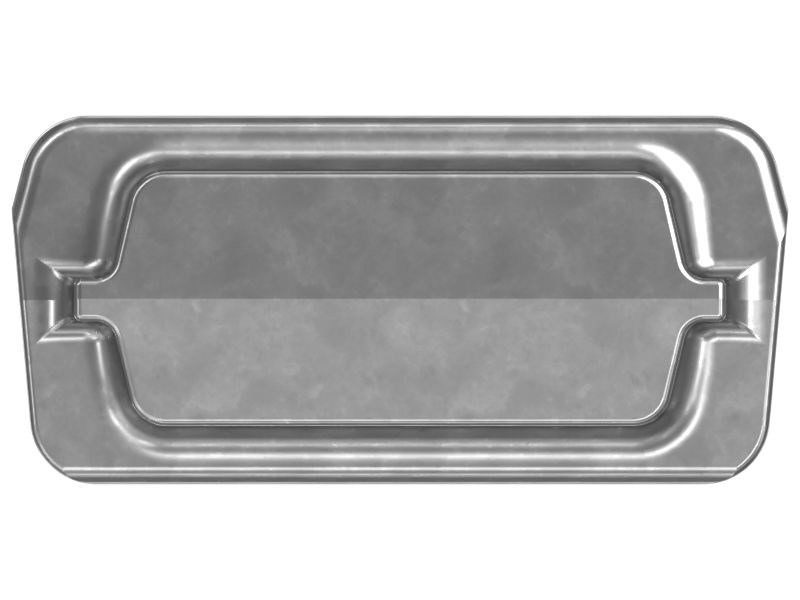

1J-6744: ПОДШИПНИК

A Push Arm Bearing is a sealed bearing unit pressed or bolted onto a mounting point on the C-frame. The push arm itself has a corresponding bearing surface that interfaces with the bearing unit. This allows for a rotational movement of the push arm relative to the C-frame, enabling suspension articulation. It provides a self-aligning capability to accommodate slight misalignment between the push arm and C-frame.

Attributes:
• Transfers loads effectively between the push arm and C-frame
• Manufactured to precise specifications and is built for durability and reliability

Applications:
A Push Arm Bearing allows the push-arm to pivot relative to the C-frame, enabling the suspension to compress and rebound as the machine traverses uneven terrain. The bearing design minimizes friction during pivoting, ensuring efficient suspension movement.

• Inner Diameter (mm): 128

• Inner Diameter (in): 5.03

• Overall Length (mm): 273

• Overall Length (in): 10.75

• Overall Width (mm): 199

• Overall Width (in): 7.81

• Material: Boron Steel,Carbon Steel
