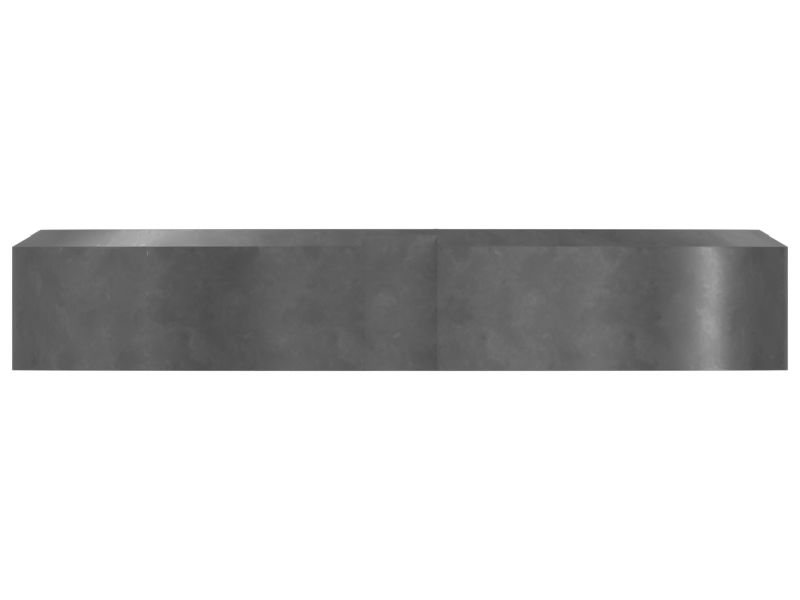

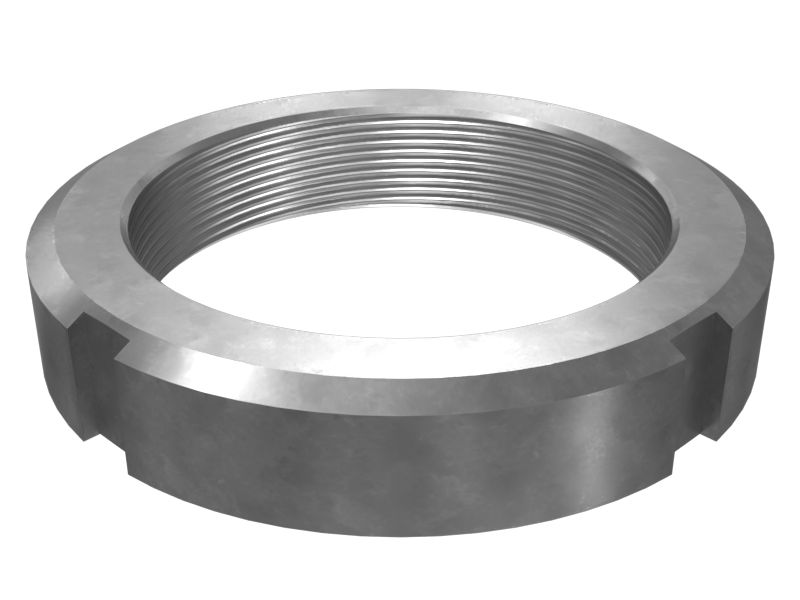

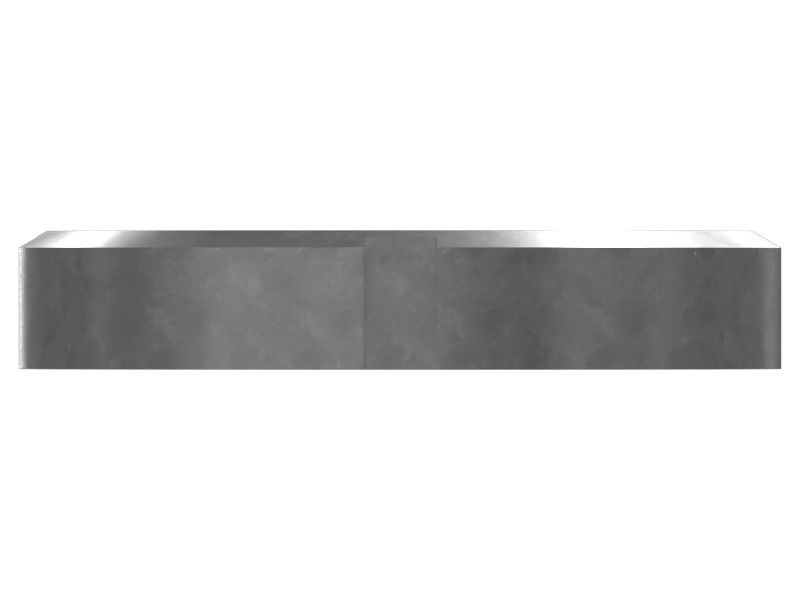

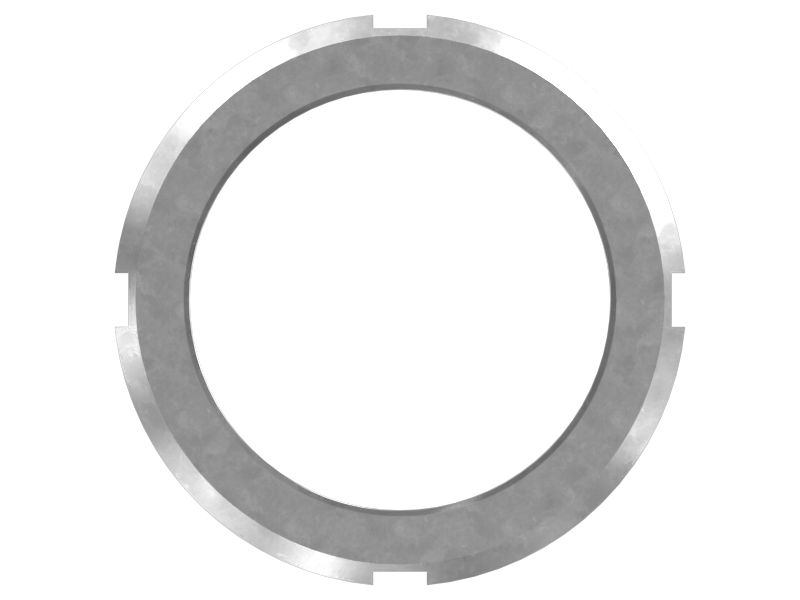

1G-9912: ГАЙКА

A Bearing Locknut is a type of fastener that is used to secure a bearing onto a shaft or other component. It is designed to prevent the bearing from loosening or shifting on the shaft. It includes a series of slots or notches on the outer surface. These slots or notches are designed to interact with a locking device, such as a cotter pin or a locking plate, to prevent the Nut from rotating and becoming loose.

Attributes:
Has high strength-to-weight ratio
Designed to withstand the torque without becoming damaged or loosening.

Applications:
A Bearing Locknut is used to ensure that bearings remain securely fastened, mostly used in Cat® CP-433, CS-433, CP-433B, CS-433B, CP-433C, CP-533, CP-533C, CP-563, CP-563C, CS-431B, CS-431C, CS-433, CS-433B, CS-433C, CS-531, CS-531C, CS-533, CS-533C, CS-563, CS-563C, and CS-563D Paving Equipment.

• Outer Diameter (in): 4.15

• Outer Diameter (mm): 105.6

• Nut Type: Round (Spanner or Bearing)

• Thread Size (in - TPI) (in): 22/7-12

• Thread: 3.137 -12

• Weight (kg): 0.43

• Weight (lb): 0.95

• Thread Size (dia x pitch) (mm): 3.137x12

• Hand of Thread: RH

• Material: Carbon Steel
