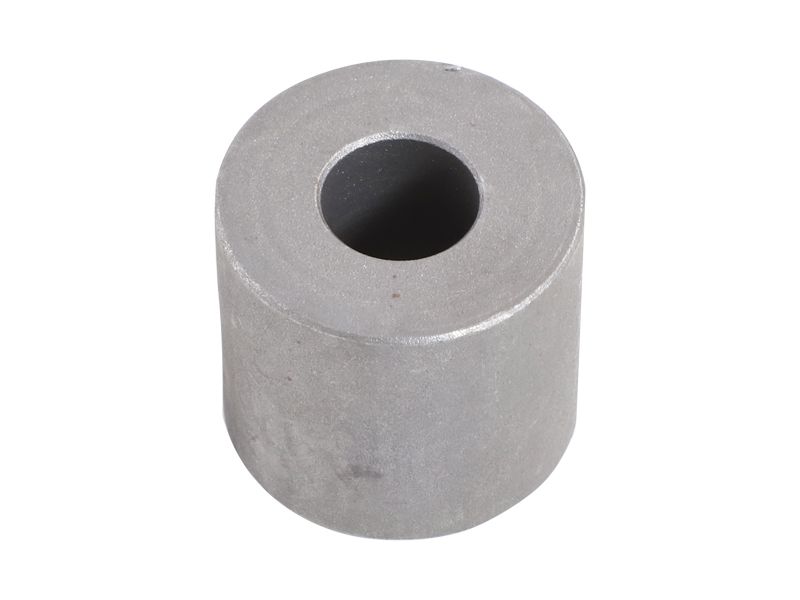

1D-5875: ПРОКЛАДКА

A Spacer creates a precise distance or gap between two objects. The spacer is designed to fit over fasteners. The size and shape of a steel spacer can vary depending on its intended use, but they are typically manufactured to very tight tolerance to ensure accurate spacing between components. Spacers can be coated or heat treated to enhance their properties.

Attributes:
Ensure precise positioning of components.
Withstand heavy loads and provide support for components in various applications.
Help reduce vibration, which can improve the efficiency of the machine and reduce wear and tear.

Applications:
A Spacer is used to increase the distance between the parts being fastened, mostly used in Cat® 22, 28, 40, 50, 75, D10, D10N, D10R, D10T, D2, D3B, D3C, D4, D4R, D4B, D4C, D5C, D6, D6R, D7, D7R, D8R2, R3, R4, and R5 Track Type Tractor, 3606, 3608, 3612, 3616, 4400G, D315, D318, D326, D330C, 3304, D333C, 3306, G3606, 3606, G3608, 3608, G3612, 3612, and G3616, 3616 Engine (Piston), 931B, 931C, 935B, and 935C Track Loader, DW20 Wheel Tractor Scrapers, FB508 Tree Harvester.

• Inner Diameter (in): 0.53

• Inner Diameter (mm): 13.49

• Material: Steel,Carbon Steel

• Outer Diameter (in): 1.25

• Outer Diameter (mm): 31.75

• Thickness (in): 0.13

• Thickness (mm): 28.57

• Weight (kg): 0.14

• Weight (lb): 0.3
