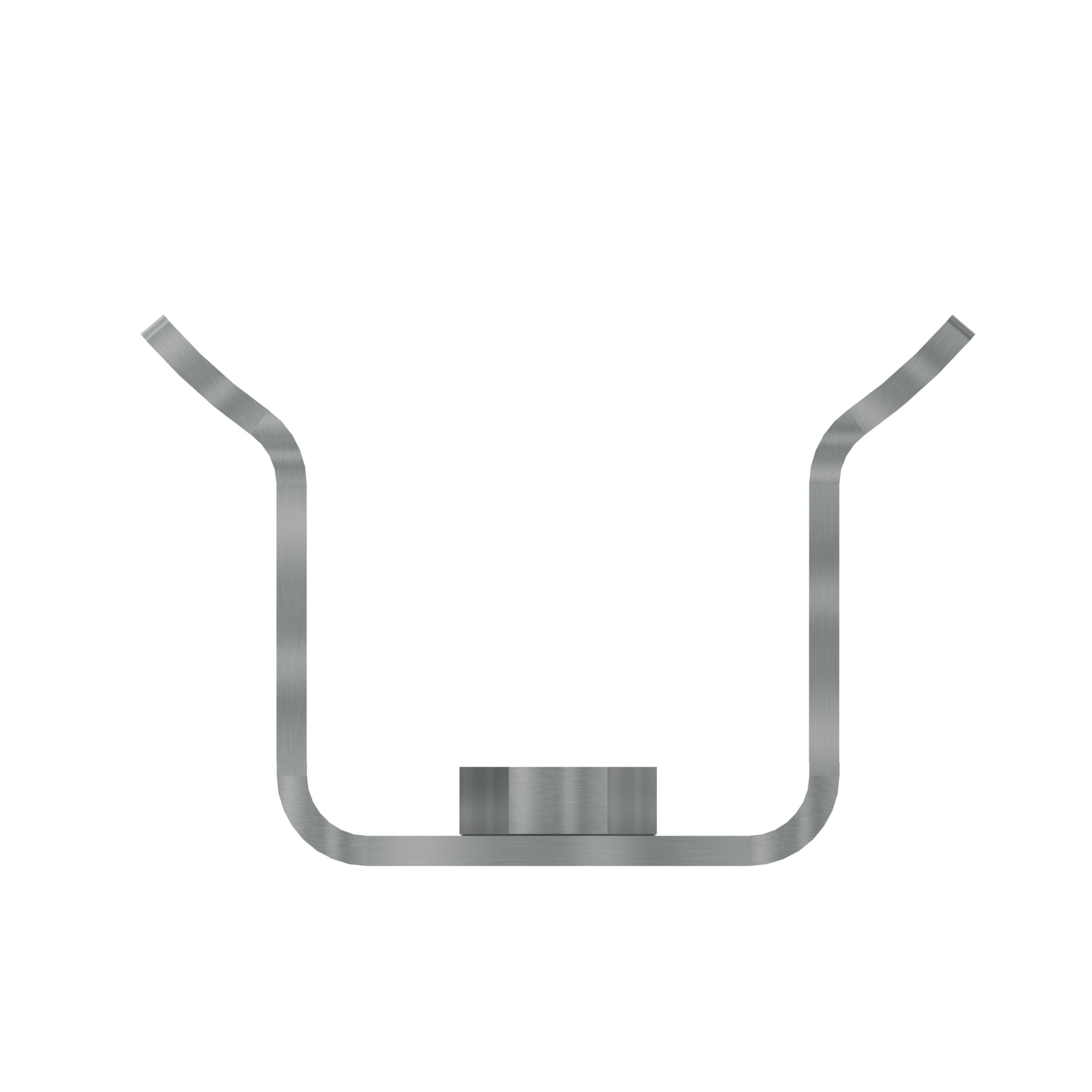

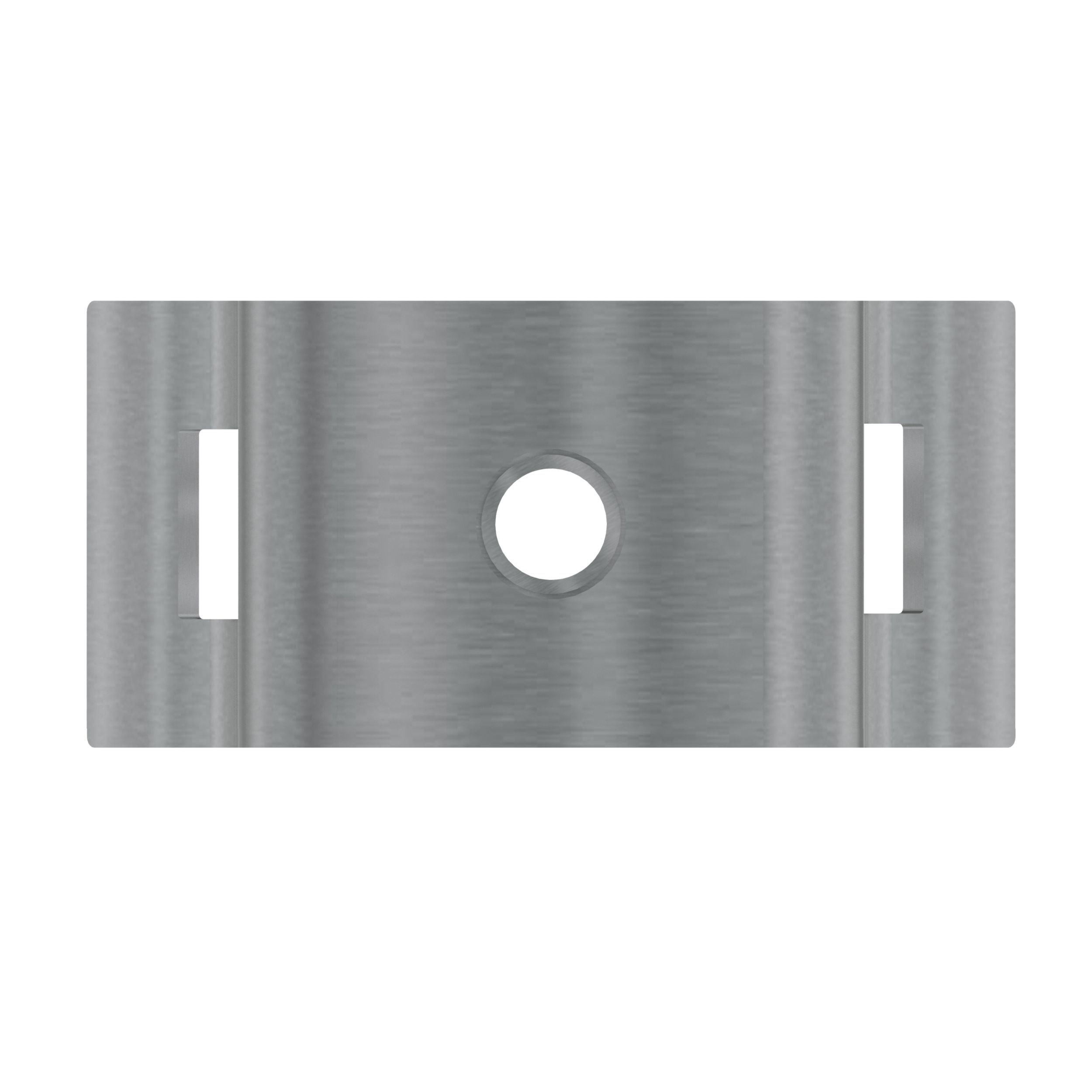

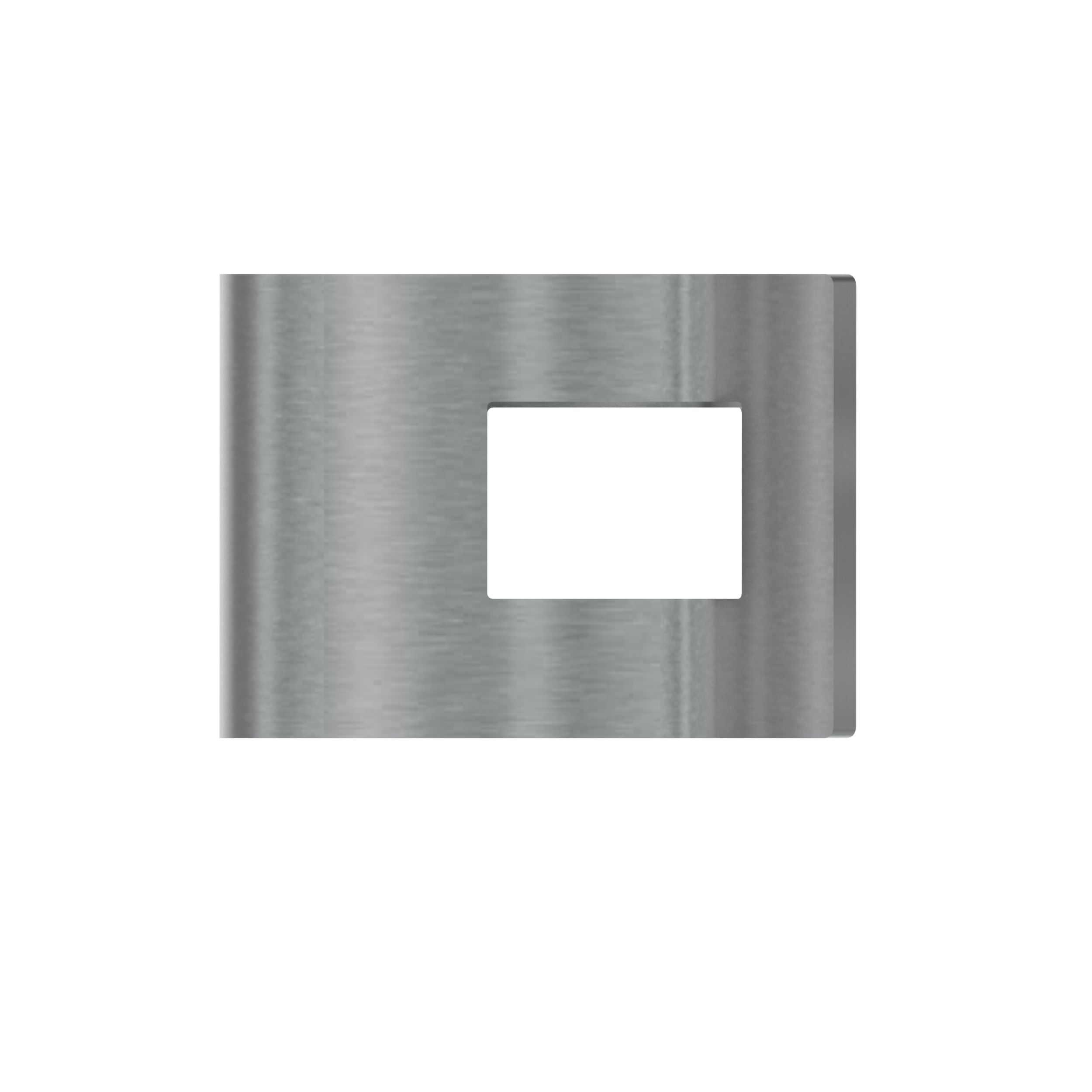

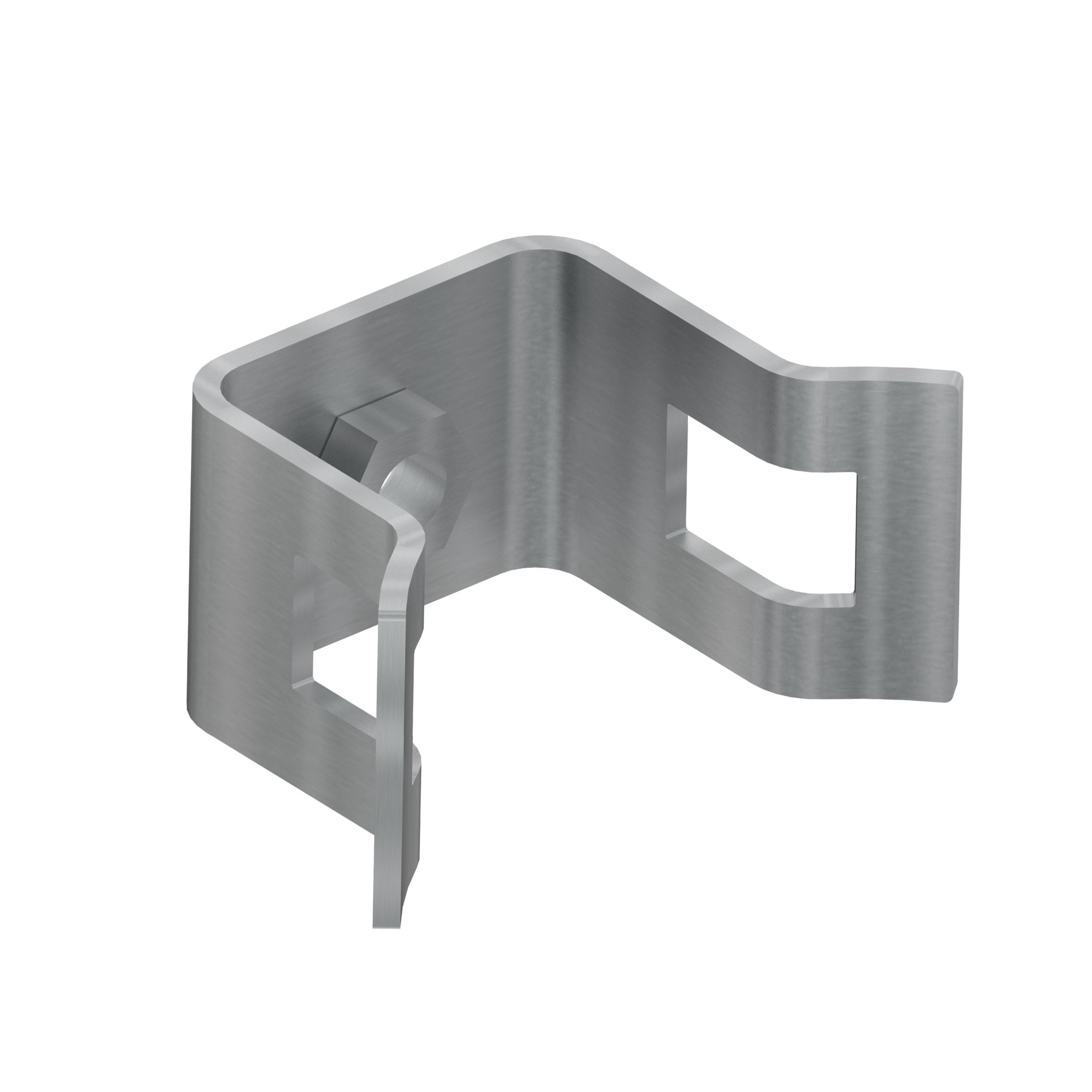

195-0268: КРОНШТЕЙН В СБОРЕ

A Hydraulic Line Support Bracket is designed to secure and guide the Hydraulic Lines connected to the Bucket Cylinder which is responsible for controlling the movement of the bucket, allowing it to extend, retract, and tilt. It includes a bracket and a weld-nut that is welded together to mount the clip and connected to the band clamp. It ensures that the hydraulic hoses remain securely in place, protecting them from damage and improving overall safety and efficiency.

Attributes:
• Withstand the vibrations and stresses encountered during the operation
• Provided with a welded nut of thread size M10 to secure the clip

Applications:
A Hydraulic Line Support Bracket is used to hold the clip that is intended to clamp the Hydraulic Hose in the Bucket Lines and prevent it from getting tangled and sagging against the components.

• Height (in): 1.57

• Height (mm): 40

• Length (in): 3.09

• Length (mm): 78.6

• Material: Steel,Alloy Mixed

• Thickness (in): 0.12

• Thickness (mm): 3

• Width (in): 2.16

• Width (mm): 54.9
