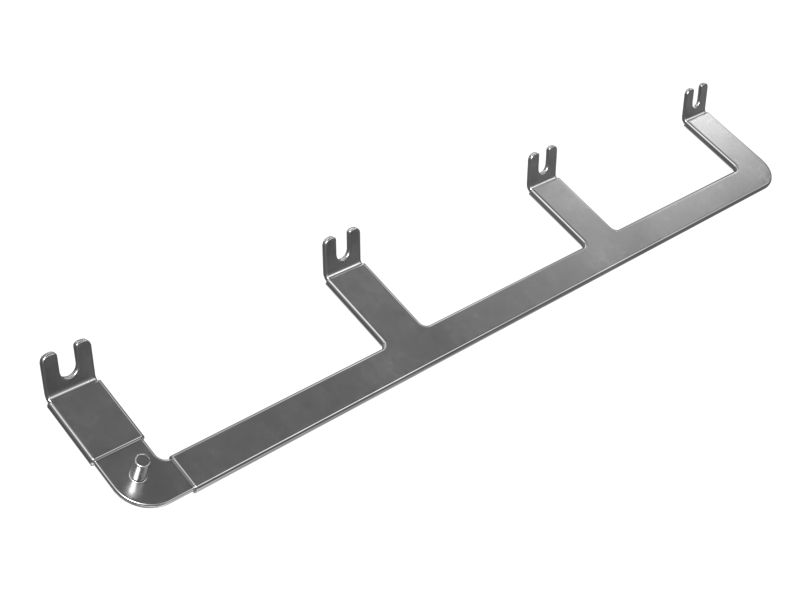

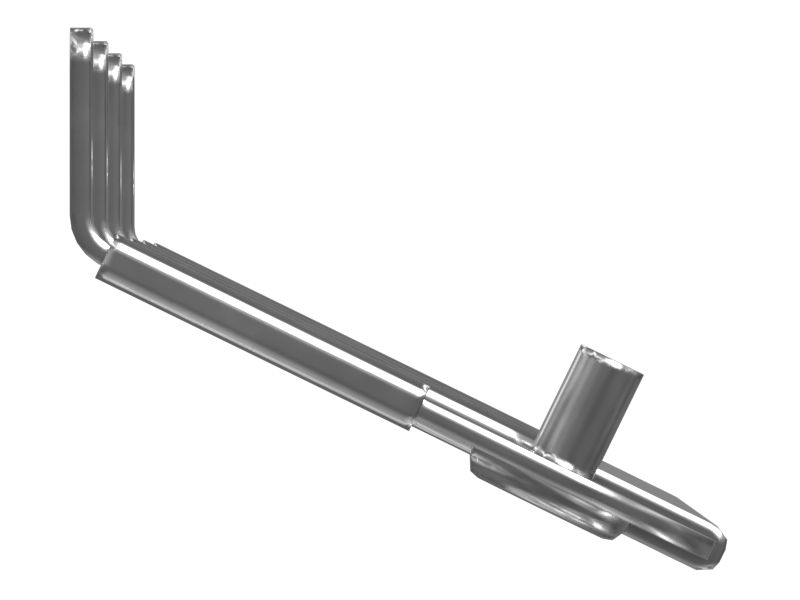

192-0105: ОПОРА ЗАГЛУШКИ

A bus bar support plug for an electrical connector is used to connect the glow plugs in an engine to the power source. Glow plugs are heating devices installed in diesel engines to assist with cold starting by preheating the combustion chambers. It is designed to connect multiple glow plugs together in a parallel configuration. It allows for a centralized power supply connection, simplifying the wiring and ensuring efficient power distribution to all the glow plugs.

Attributes:
It is designed to be compact and space-efficient to fit within the limited confines of the engine compartment.
withstand the operating conditions within the engine compartment, including heat, vibration, and exposure to engine fluids.
It provides a secure and reliable connection between the glow plugs.

Applications:
A bus bar connector allows for efficient power distribution to the glow plugs, aiding in reliable cold starting. It is mostly used in 216, 216B, 226, 226B, 232, 232B, 232D, 232D3, 239D, 242B, 247B, 249D and 257B Skid Steers, 3024, 3024C and C2.2 Engine (Piston), 304.5 Excavators, C2.2 Generator Sets.

• Material: Carbon Steel,Corrosion Preventative Fluid

• Overall Length (in): 11.65

• Overall Length (mm): 296

• Thickness (in): 0.05

• Thickness (mm): 1.2

• Weight (kg): 0.06

• Weight (lb): 0.14
