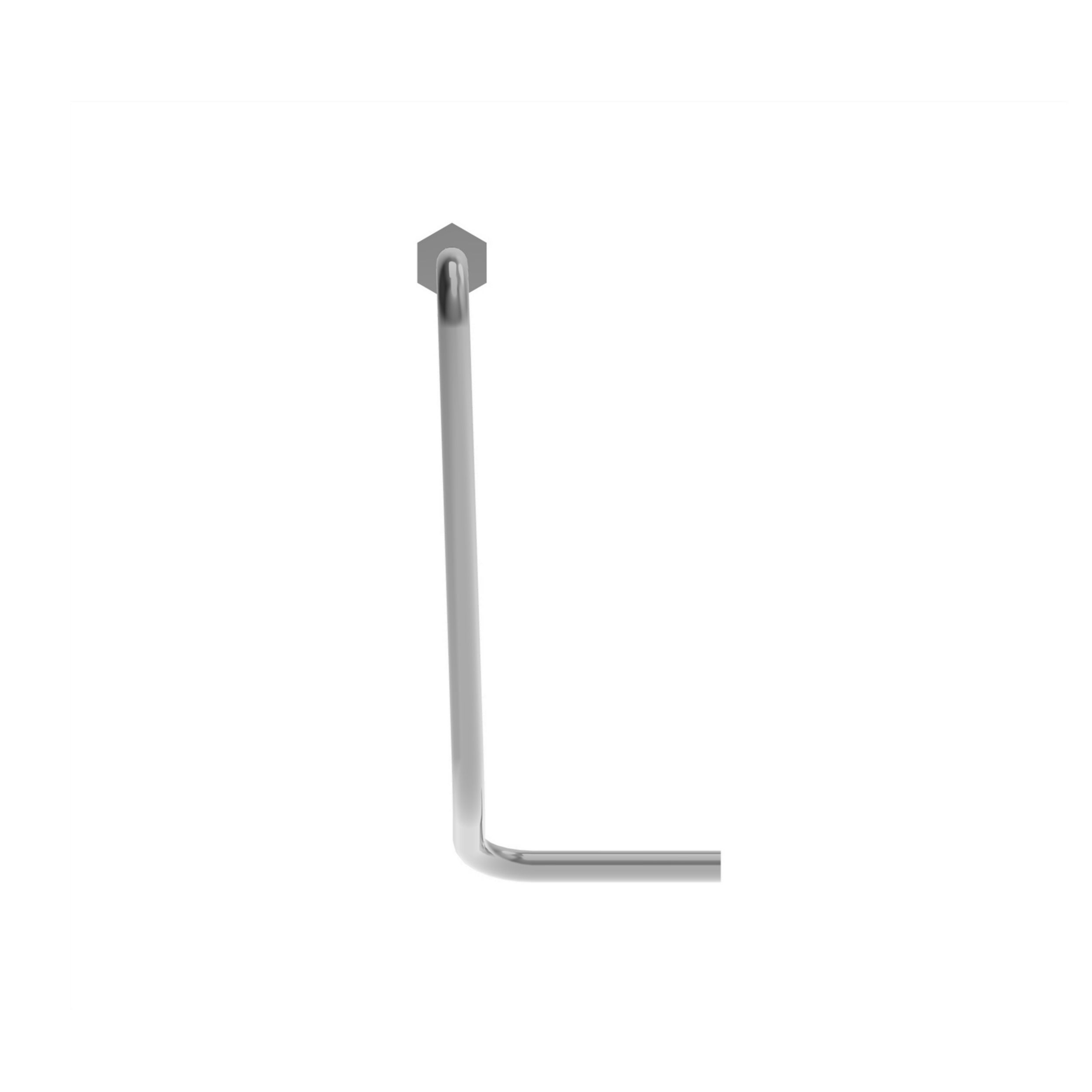

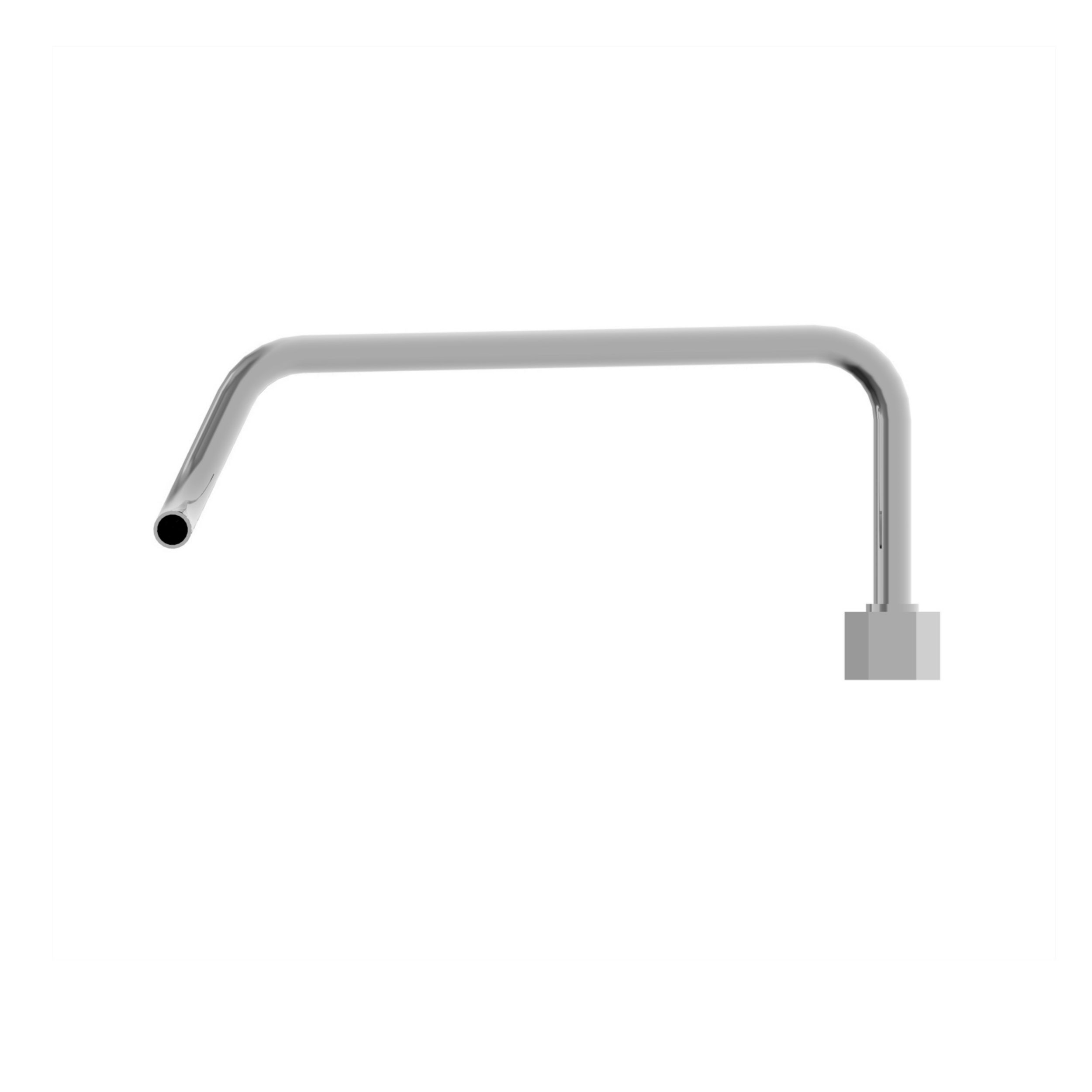

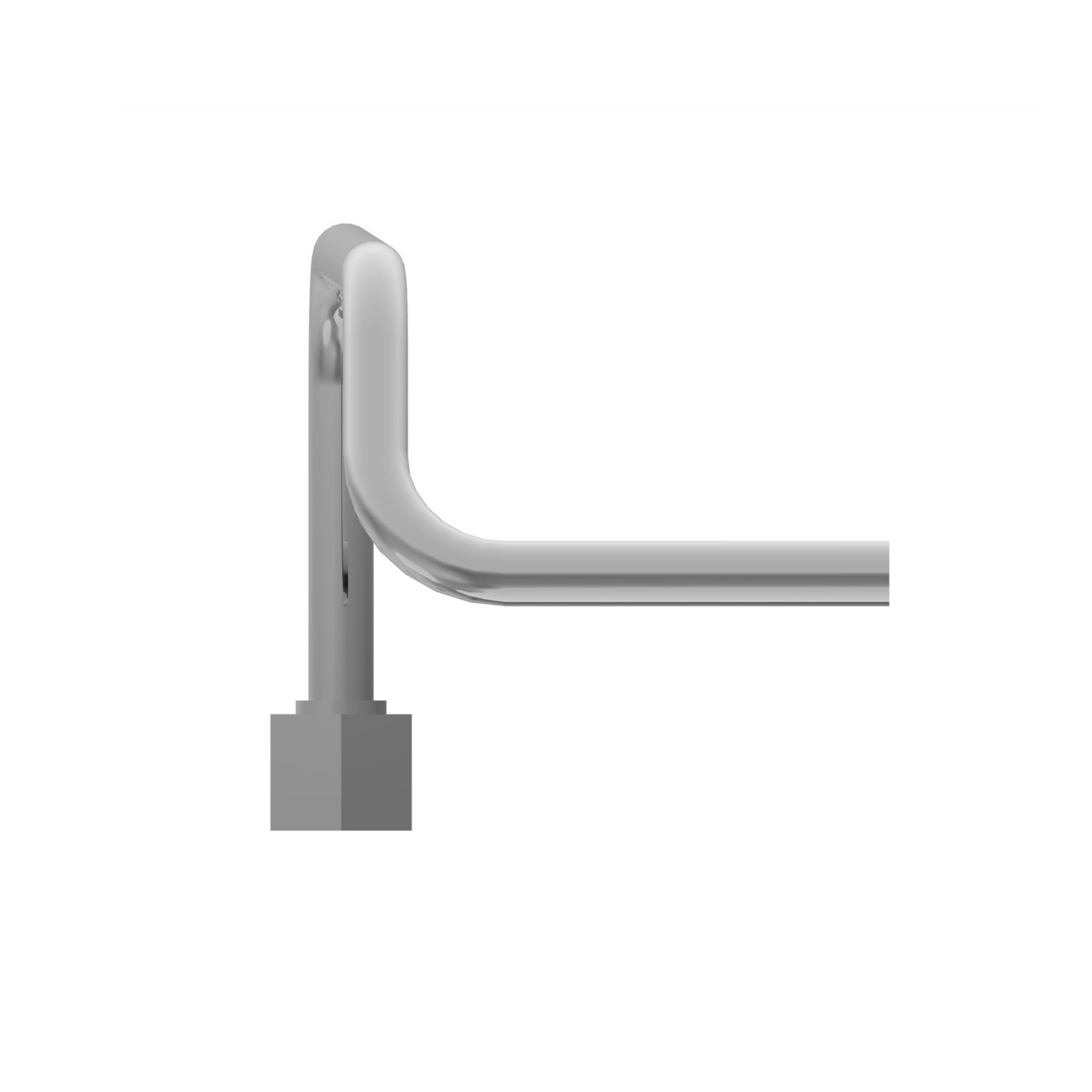

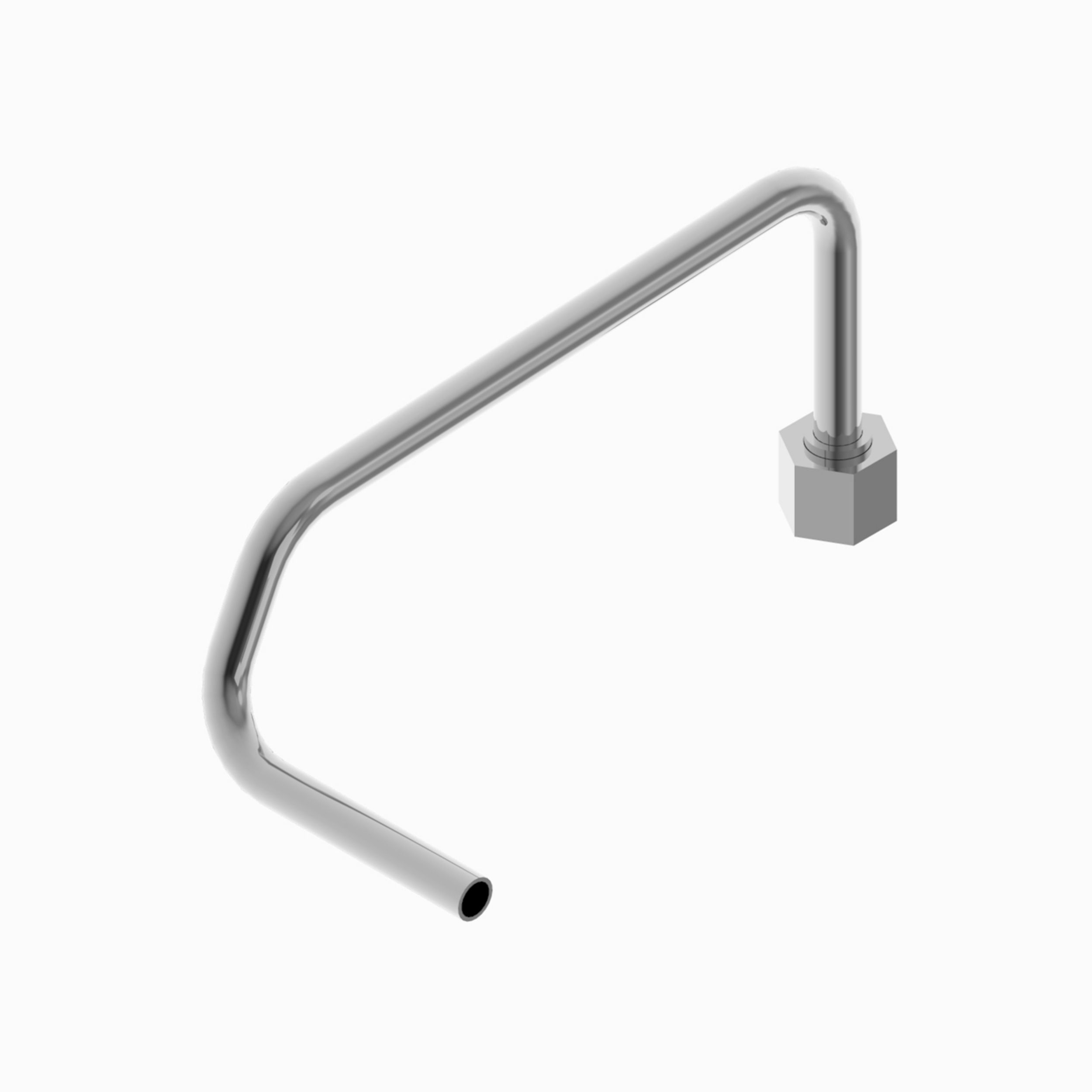

190-9838: ТРУБКА В СБОРЕ

Description:
Cat® Tube Assemblies are held to the highest standards of quality and reliability. These rigid tube assemblies (also commonly referred to as pipes) are designed to convey liquids or gases and are precisely engineered for each unique application. Each Cat® Tube Assembly utilizes superior materials and processes, fabricated specifically to withstand the application’s pressure and flow requirements which will ensure a long life and proper machine functionality.
Engineered with a specific application in mind, every Cat® Tube Assembly is designed and manufactured to exacting tolerances to ensure proper alignment with existing systems on your Cat® Machine.

Application:
Cat® Tube Assemblies are designed only for a specific application. Consult your owner’s manual or contact your local Cat® Dealer for more information.

• Overall Length (mm): 196.4

• Overall Length (in): 7.732

• Overall Height (mm): 89.3

• Overall Height (in): 3.515

• Overall Width (mm): 90.3

• Overall Width (in): 3.555

• Connector: Swivel Nut

• Connector Type: ORFS

• Hex Size (mm): 20.64

• Hex Size (in): 0.812

• Width (mm): 17

• Width (in): 0.669

• Thread Size (in): 11/16-16

• Outer Diameter (mm): 15.75

• Outer Diameter (in): 0.62

• Sleeve Inner Diameter or Thread (mm): 9.68

• Sleeve Inner Diameter or Thread (in): 0.381

• Sleeve Length (mm): 9.5

• Sleeve Length (in): 0.374

• Working Pressure (kPa): 240

• Working Pressure (psi): 34.809

• Weight (kg): 0.09

• Weight (lb): 0.198

• Material: Alloy Mixed
