184-2518: ПЕРЕХОДНИК

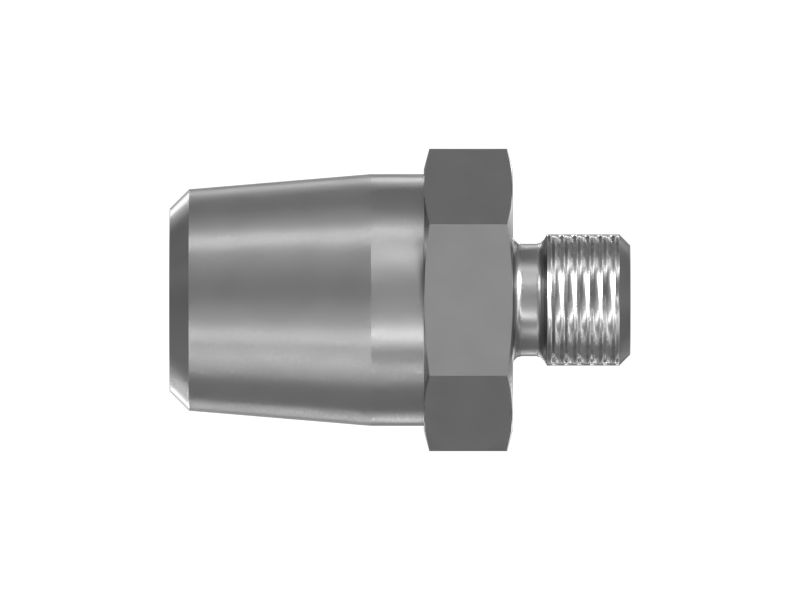

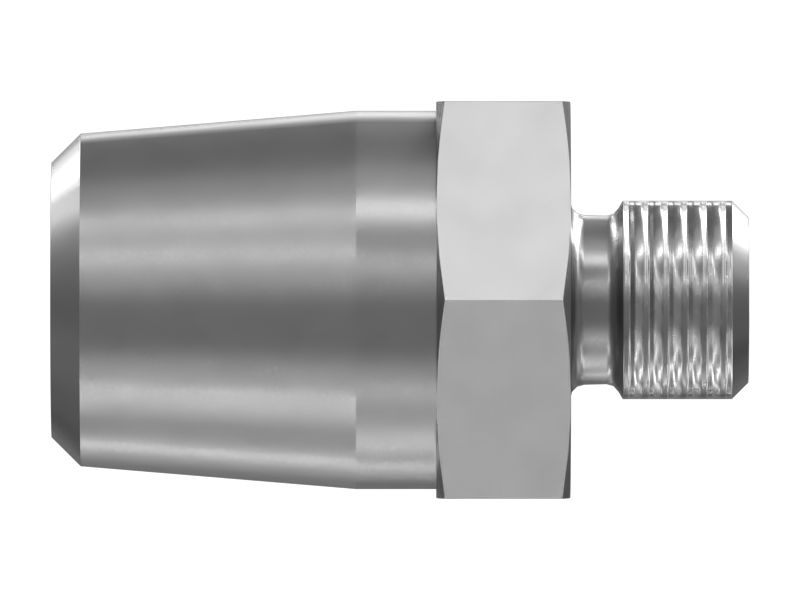

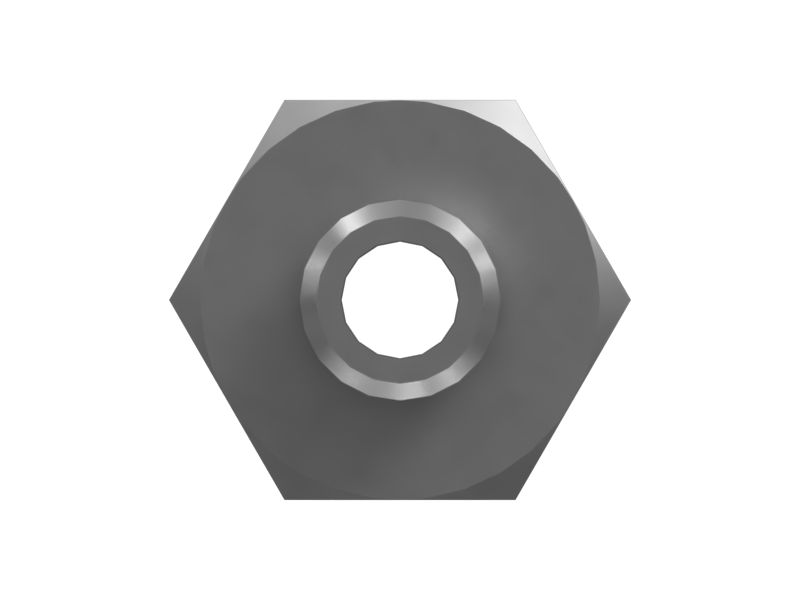

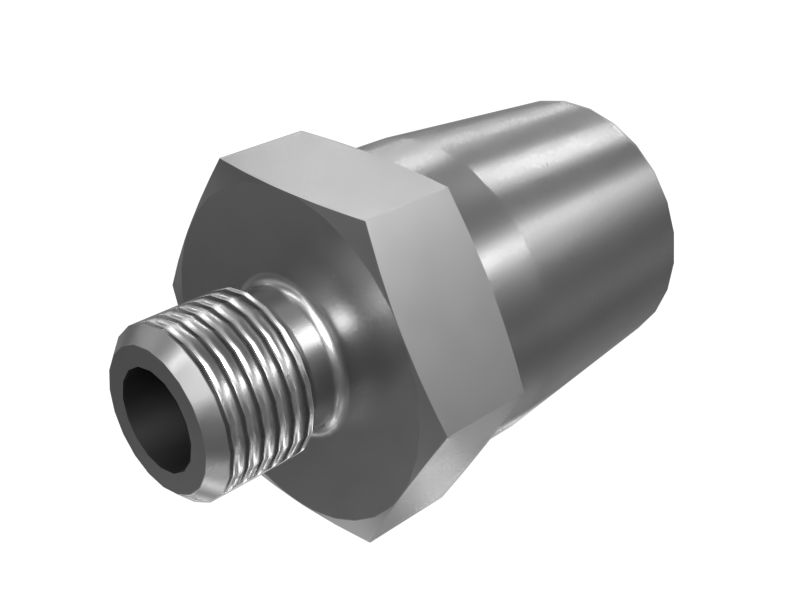

A thermocouple straight adapter is designed to allow the thermocouple to be inserted into the fluid flow path, where it can accurately measure the temperature of the fluid. The thermocouple fluid-carrying straight adapter typically consists of a male pipe thread or hose barb on one end, and a female connector for the thermocouple on the other end. The male end of the adapter is connected to the fluid-carrying pipe or hose, while the female end is used to insert the thermocouple.

Attributes:
• Provide a secure and leak-proof connection between the thermocouple and the fluid-carrying line.
• Maximum Operating Pressure: 10,300 psi.
• Withstands high temperatures.

Applications:
A thermocouple fluid-carrying straight adapter is a type of fitting used in temperature measurement applications to connect a thermocouple to a fluid-carrying pipe or hose.

• Transmission and Hydraulic Oil Compatibile Seal: 3J-7354 (7/16-20)

• Oil and Fuel Compatible Seal: 214-7566 (7/16-20)

• Coolant and Urea Compatible Seal: 6V-9027 (7/16-20)

• Material: Stainless Steel
