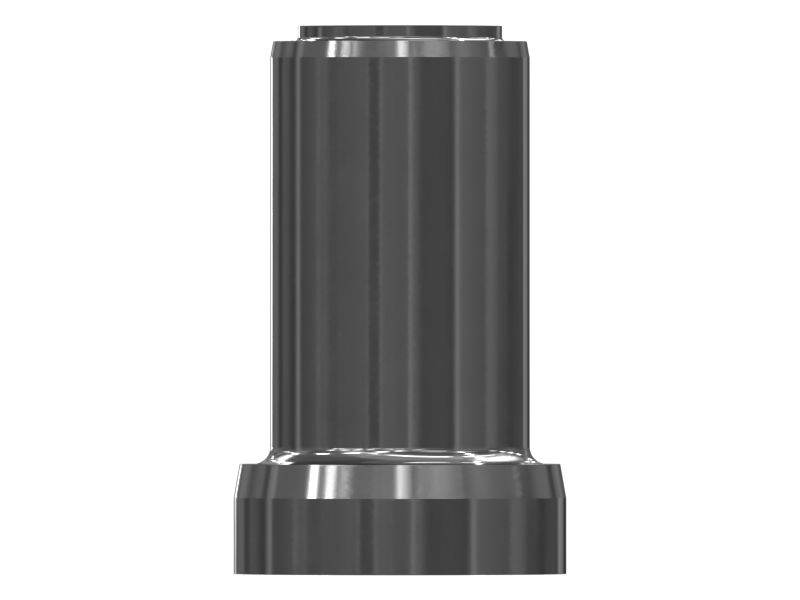

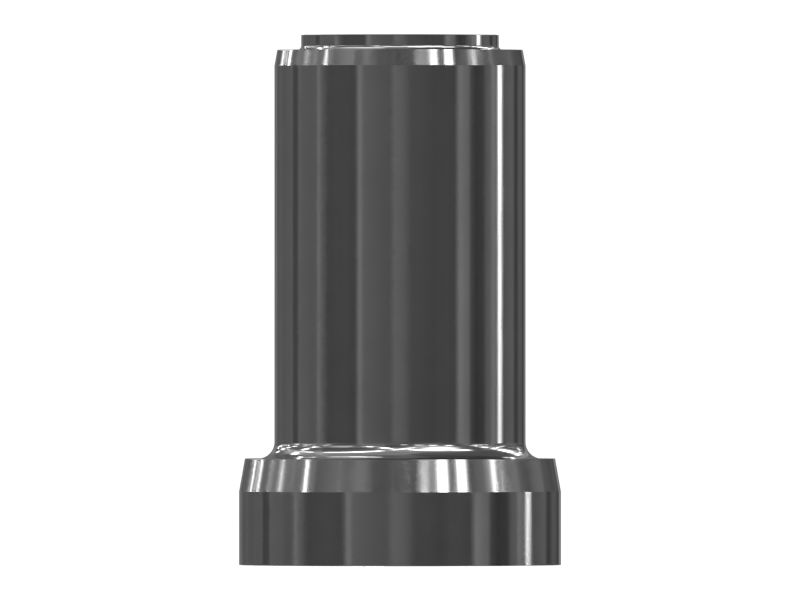

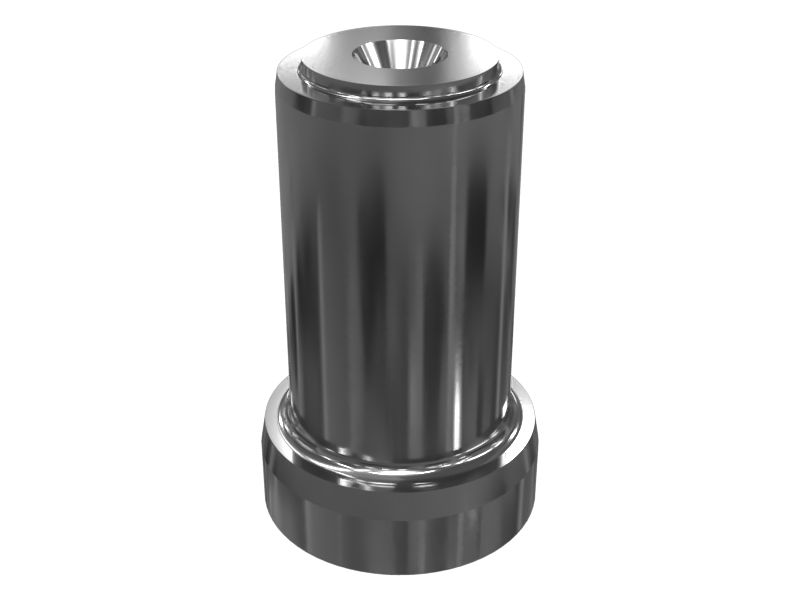

180-5134: ВАЛ

Description:
Cat drive train components must endure incredible torque, high impact loads, and frequent direction and gear changes. Cat designs and manufactures its transmissions and final drive components with these demands in mind. The result is a drive train that lasts longer and works harder over the life of the machine. Cat planetary shafts are designed to control the transmissions speed, direction and force for Cat machine operation.

Attributes:
• Hardened steel planet shaft
• Shaft Diameter: 44.482 mm (1.751 in)
• Shaft Effective Length: 75.2 mm (2.960 in)
• Head Diameter: 57.038 mm (2.245 in)
• Length: 94 mm (3.700 in)
• Thread Size: M12
• Chamfered ends

Application:
Service component for final drive groups. Consult your owner's manual or contact your local Cat Dealer for more information.

• Material Description: Steel

• Shaft Diameter (mm): 44.482

• Head Diameter (mm): 57.038

• Overall Length (mm): 94

• Thread Size (mm): M12

• Shaft Diameter (in): 1.751

• Head Diameter (in): 2.245

• Overall Length (in): 3.700

• Material: Microalloy Steel
