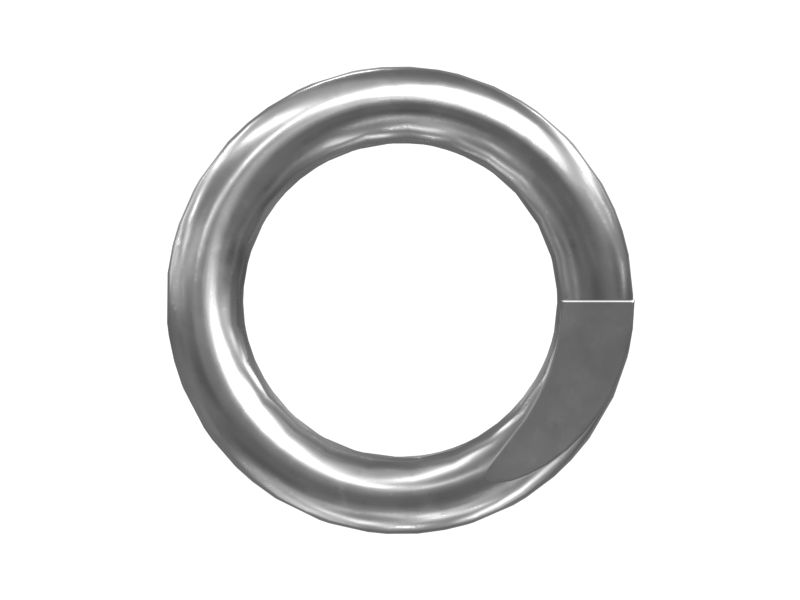

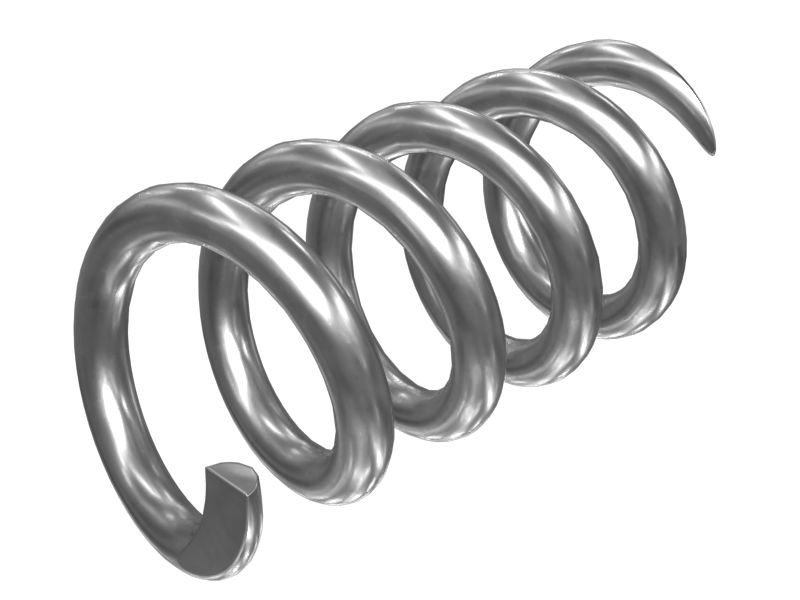

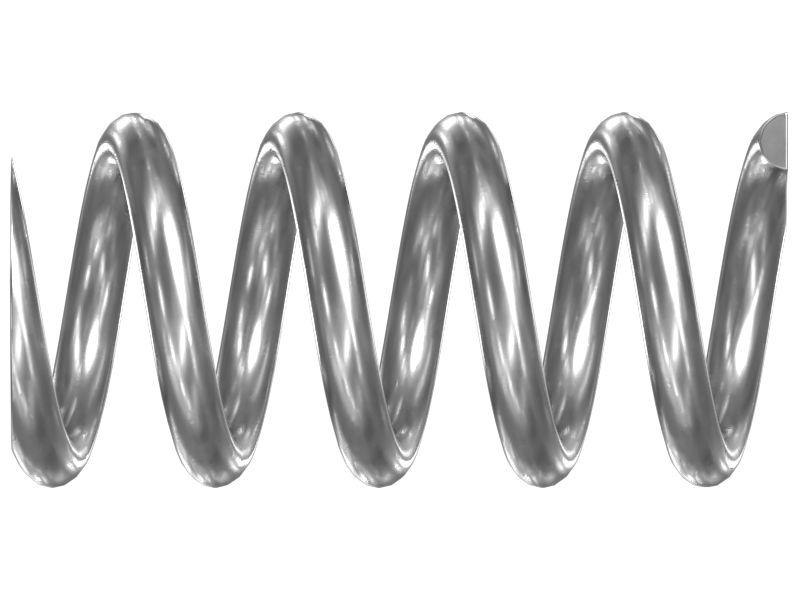

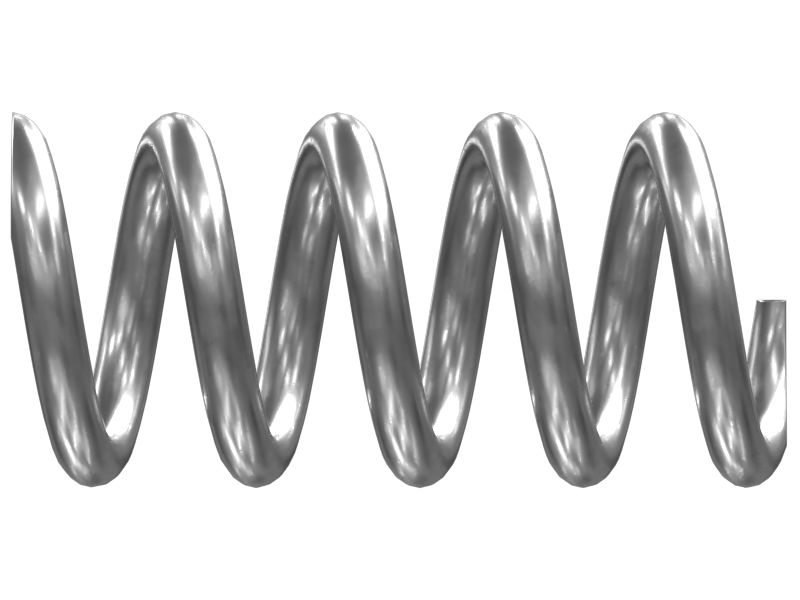

179-6924: ПРУЖИНА

Description:
A Compression Spring is positioned between the piston and retainer to hold it with the required pressure. The spring compresses, exerting a force that helps to regulate the flow of fluids through the valve. Compression Springs are used as they allow for more efficient energy storage methods and provide a smooth change in resistance over time.

Attributes:
• Manufactured to precise specifications and are built for durability and reliability
• Provided With Right-hand wound helical coil helps to maintain their shape and stability

Applications:
A Compression spring is used in Hydraulic systems to provide necessary pressure, this is widely used in Cat 312F, 313F, 349E, 365B, 365C, 365D, 374D, M313C, M313D, M314F, M315C, M315D, M315F, M316C, M316D, M316F, M317D, M317F, M318C, M318D, M320D, M322C, M322D, M323F and M324D Excavators, 365C, M318D, M322D, MH3037, MH3049, MH3059 and MH3059B Material Handler, 550, 550B, 560B, 570, 570B, 580 and 580B Tree Harvester, 560 Harvester - 6 Wheel (Tree), TR43 Powertrain.

• Inner Diameter (in): 0.22

• Inner Diameter (mm): 5.55

• Length (in): 0.65

• Length (mm): 16.6

• Outer Diameter (mm): 8.05

• Outside Diameter (in): 0.32

• Spring Type: Compression

• Wire Size (in): 0.05

• Wire Size (mm): 1.25
