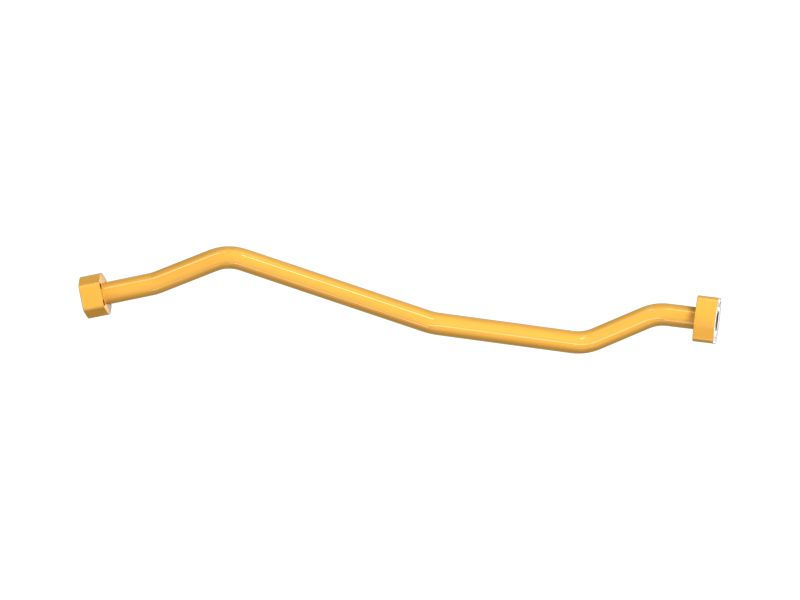

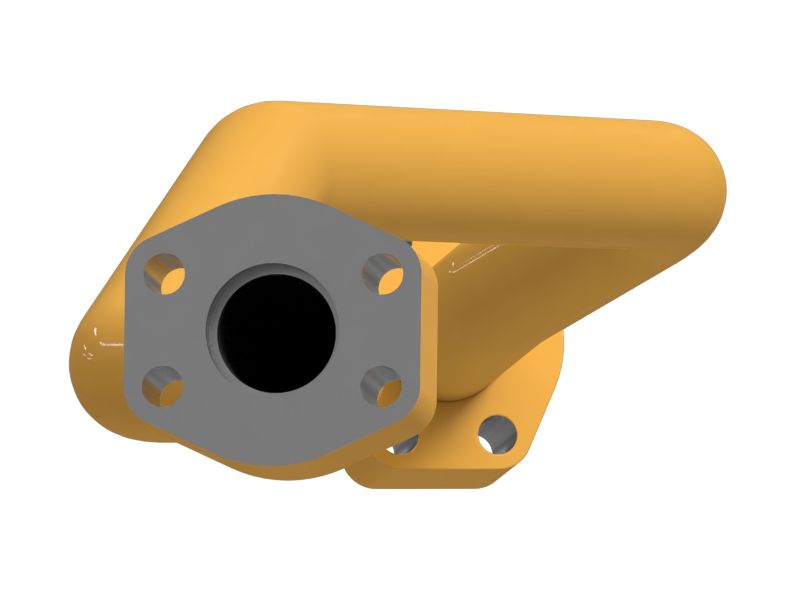

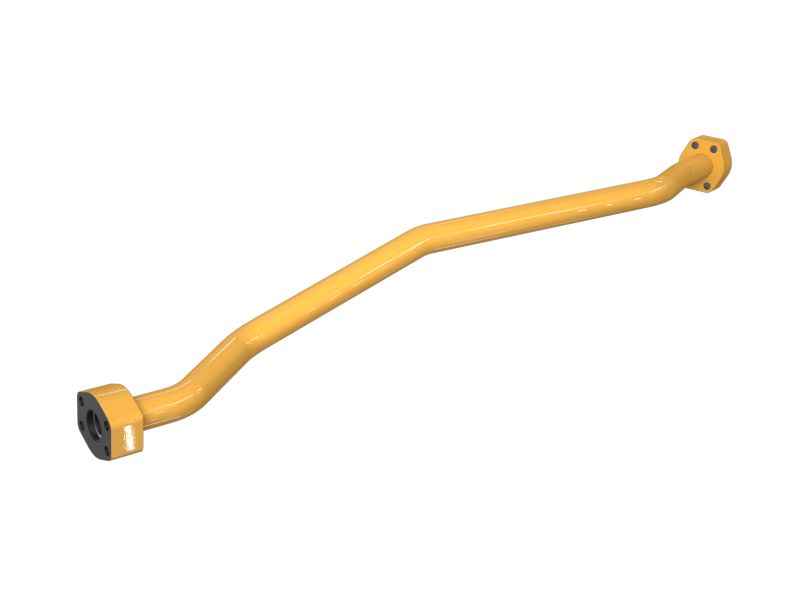

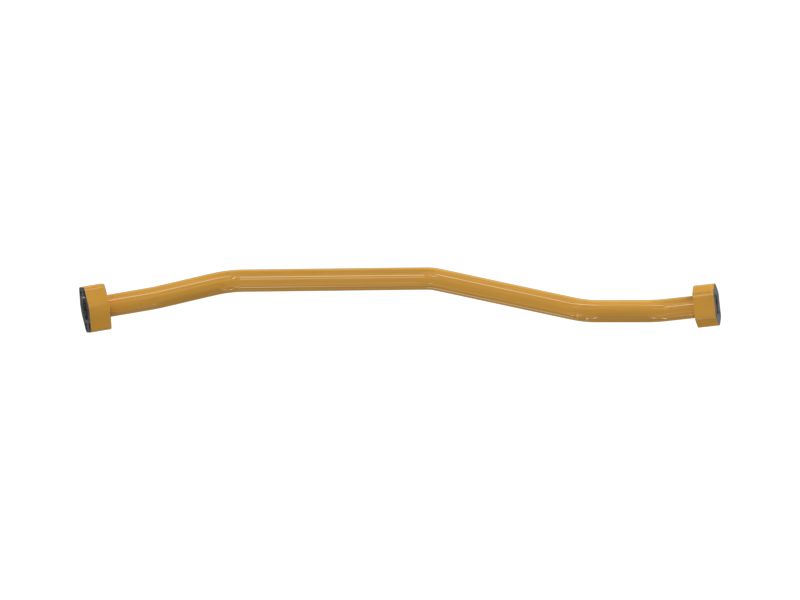

179-4831: ТРУБКА В СБОРЕ

A Lift Cylinder Tube Assembly facilitates the transmission of hydraulic fluid to operate the lift cylinder. It consists of a cylindrical tube with flanges at both ends, allowing seamless connection to the hydraulic hoses. The assembly transmits hydraulic fluid from the lift cylinder, enabling controlled lifting and lowering of loads. The flanges provide secure attachment points for hydraulic hoses, ensuring leak-free operation. The tube is designed to withstand high pressures encountered in lifting tasks and prevents hydraulic fluid leakage to maintain hydraulic pressure during operation.

Attributes:
• High-pressure resistance.
• Sealed design to prevent fluid leakage.
• Resistant to wear and tear.
• Designed to withstand 18790 kilopascals relief valve pressure.

Applications:
A Lift Cylinder Tube Assembly is positioned within the hydraulic lift system, between the two hydraulic hoses, providing a conduit for hydraulic flow from the lift cylinder to facilitate lifting and lowering operations.

• Outer Diameter (mm): 38

• Outer Diameter (in): 1.5

• Approximate Overall Length (mm): 1158

• Material: STEEL
