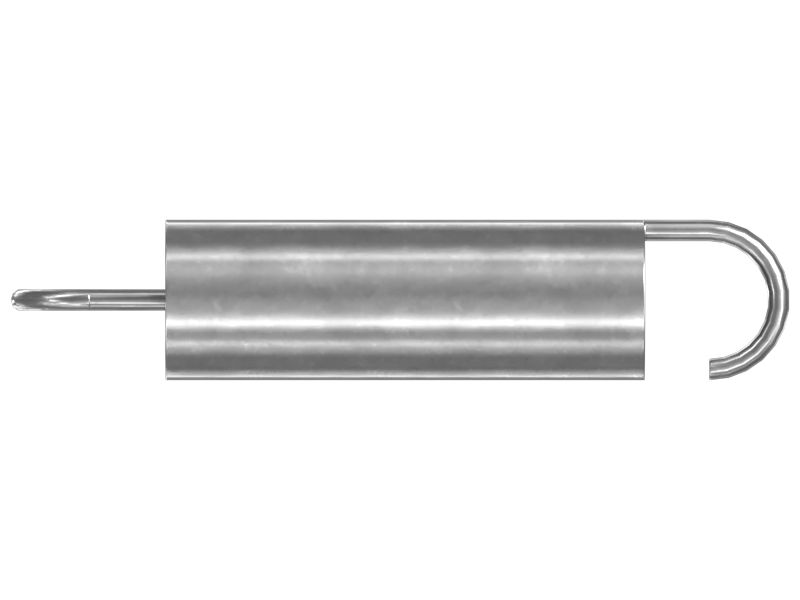

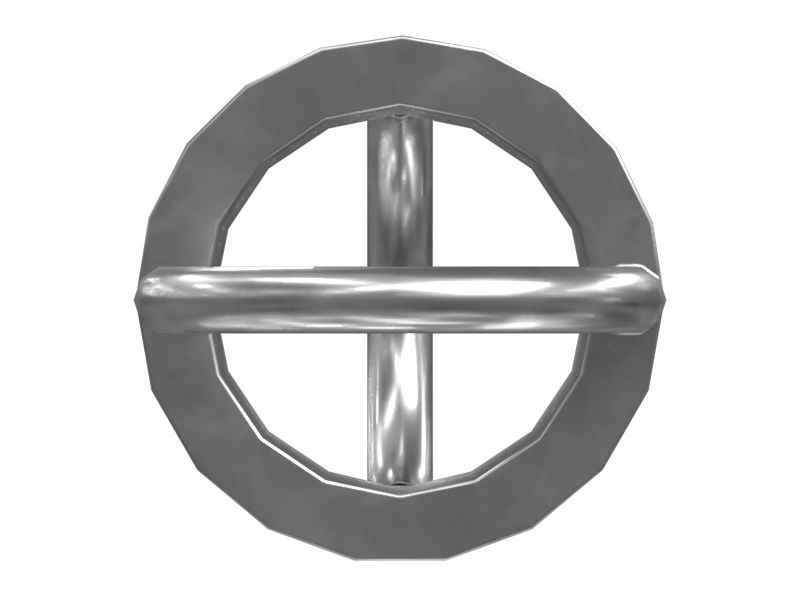

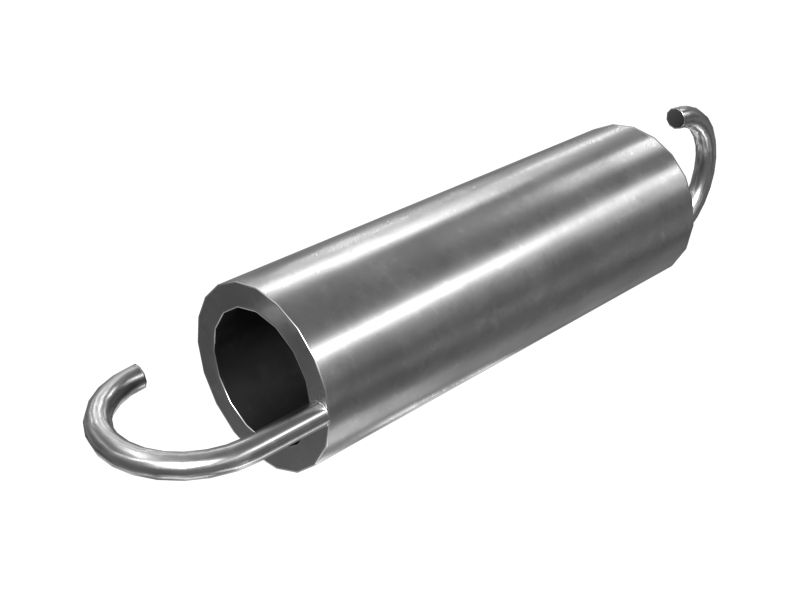

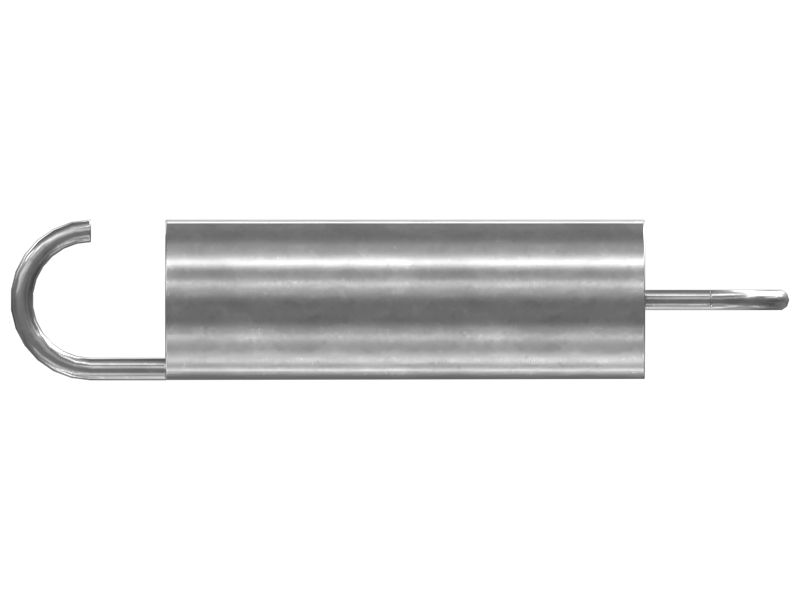

177-1941: ПРУЖИНА

Description:
The Tension Spring is usually installed in the handle or the back of the blade, and it helps to keep the blade securely in place when it is closed or opened. When the blade is closed, the tension spring applies pressure to the tang of the blade, holding it in place against the handle. It is Also called extension springs, tension springs provide extended force when the spring is pulled apart from its original length. The spring stretches to a specific length as the load/force is applied, absorbing energy to create resistance to the pulling force.

Attributes:
•Manufactured to precise specifications and are built for durability, reliability, and productivity.
• Initial tension maintained at 14 N/mm
• Provided With Right-hand wound helical coil helps to maintain their shape and stability.

Applications:
The Tension springs are attached blades and they help with the movements of blades in blade arrangements. Widely used in Cat 931B, 931C, 933, 935B, 935C, and 939 Track Loader, D3B, D3C, D4B, D4C, and D5C Track Type Tractor.

• Inner Diameter (in): 1.93

• Inner Diameter (mm): 49.13

• Length (in): 11.7

• Length (mm): 297.2

• Outer Diameter (mm): 66.55

• Outside Diameter (in): 2.62

• Spring Type: Tension

• Wire Size (in): 0.34

• Wire Size (mm): 8.71

• Material: Alloy Steel
