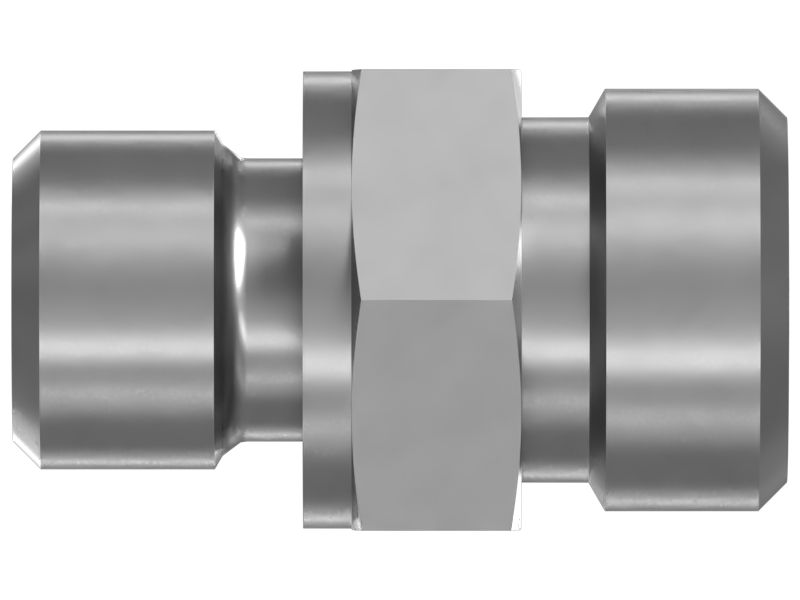

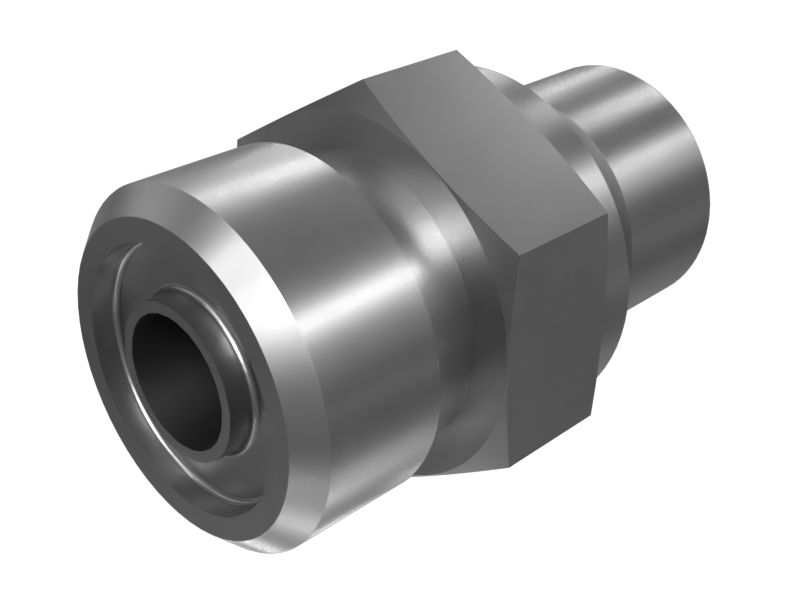

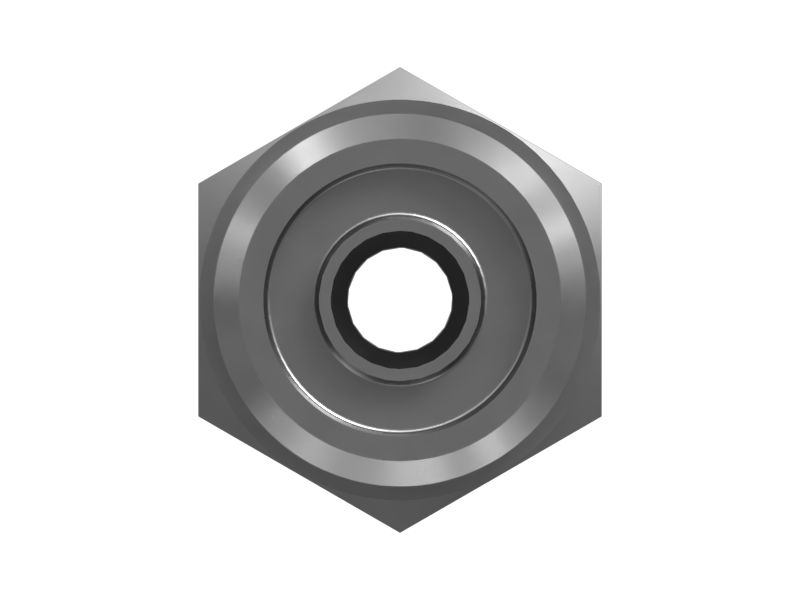

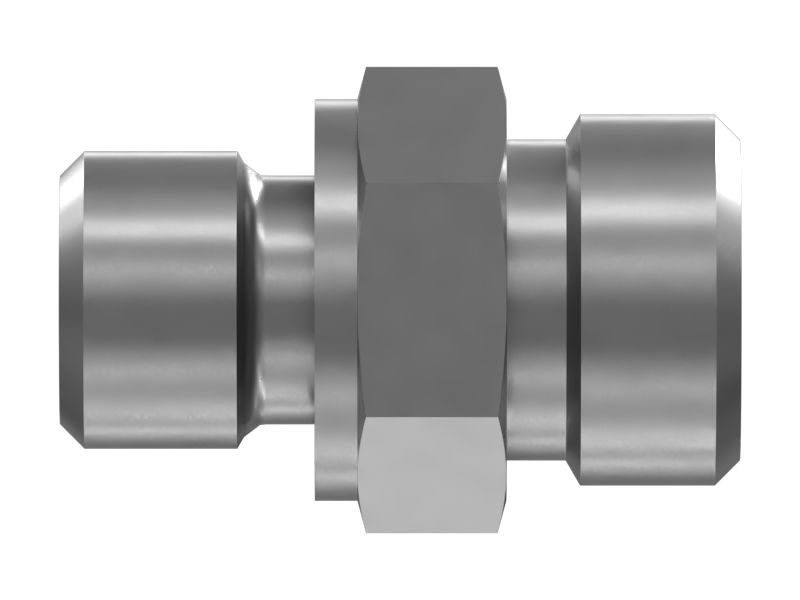

169-1578: ПЕРЕХОДНИК СТАНДАРТНЫЙ

A Straight adapter for hydraulic hose lines is a specialized component designed to facilitate the connection between two hydraulic hoses or between a hose and a hydraulic system. It serves as an intermediary fitting that ensures a secure and leak-free link, allowing for the efficient transfer of hydraulic fluid under high pressure.

Attributes:
Constructed with corrosion-resistant materials.
Designed for easy installation, typically featuring a hexagonal or knurled surface on one or both ends.

Applications:
A Straight adapter for hydraulic hose lines is a crucial component that enables the seamless connection between hydraulic hoses or between hoses and system components. Its sturdy construction, threaded ends, and sealing mechanisms ensure a secure, leak-free, and efficient transfer of hydraulic fluid within a hydraulic system and it is widely used in Cat® 312, 320, 325, 330, 330C and 336 Oem Applications, 317, 330C, 365C, 385C, 6020B, 6030, 6040, 6060, 6060X, M312, M313C, M315, M315C, M316C, M318, M318C, M320, M322C, M325C, and MH3050 Excavators, 330C, M325D, M333F, MH3037, MH3040, MH3049, MH3059, TH103, TH62, TH63, TH82 and TH83 Material Handler, 539, 552, 554, 564, 574, 574B, and 584 Tree Harvester, 7495 Surface Extraction, AP255E, CB-534D, CB-536D, CB-546D, PF-300B, PF-300C, PS-300B, PS-300C and PS-500B Paving Equipment, MD5050T Drills, TR13 and TR35 Powertrain.

• Hex Size (in): 0.75

• Coolant and Urea Compatible Seal: 216-8579 (M14 X 1.5), 6D-7128 (11/16-16)

• Hex Size (mm): 19

• Oil and Fuel Compatible Seal: 228-7101 (M14 X 1.5), 228-7089 (11/16-16)

• Overall Diameter (in): 0.74

• Transmission and Hydraulic Oil Compatibile Seal: 6V-6560 (M14 X 1.5), 6V-8397 (11/16-16)

• Overall Diameter (mm): 18.9

• Overall Length (in): 1.26

• Overall Length (mm): 32

• Thread Size (in): 11/16-16

• Thread Size (mm): M14x1.5

• Weight (kg): 0.05

• Weight (lb): 0.1

• Material: Carbon Steel
