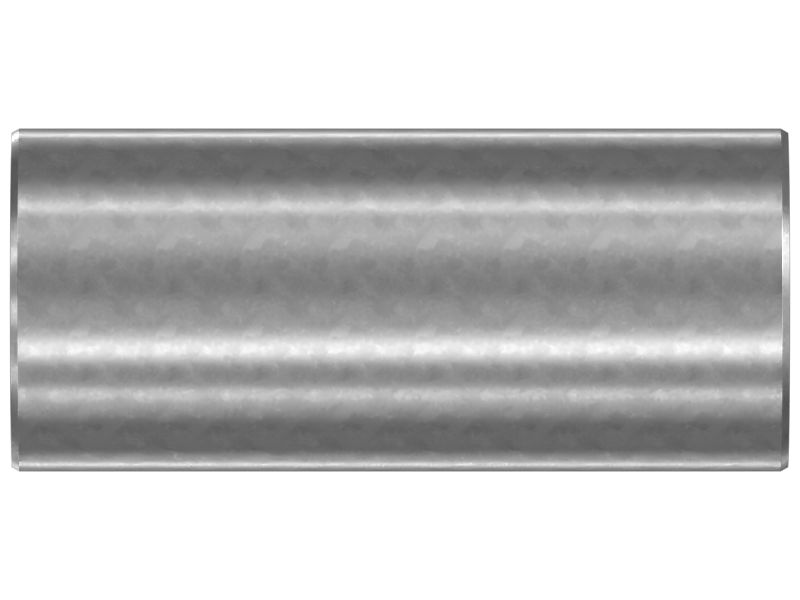

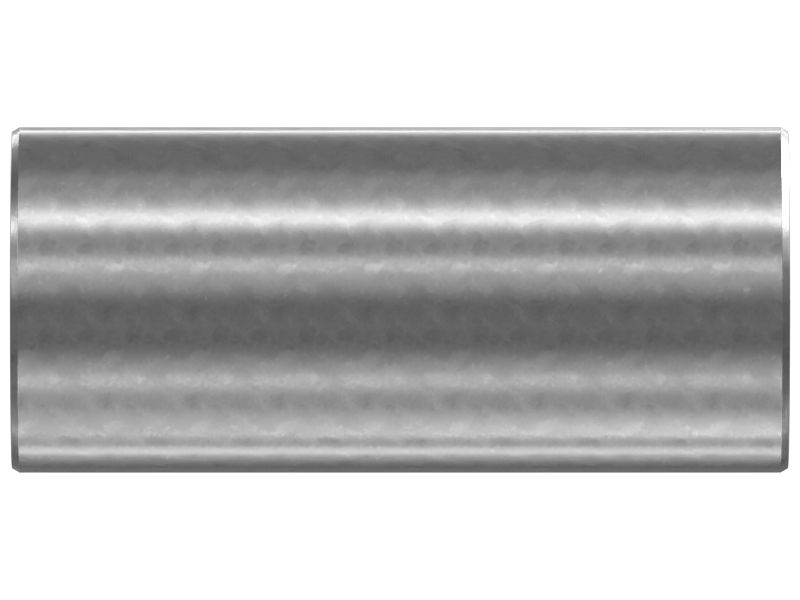

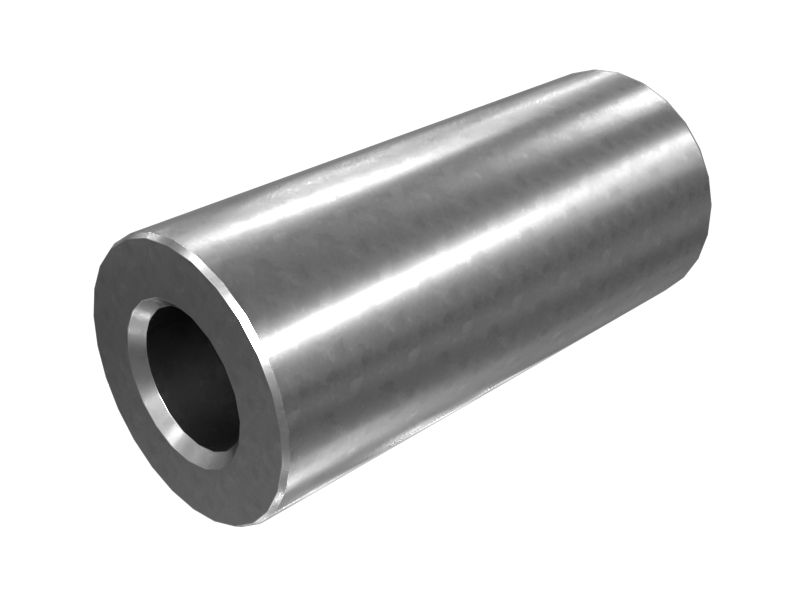

168-7226: ПАЛЕЦ ПОРШНЯ

Description:
A Gudgeon Pin, also known as the wrist pin or piston pin. The Gudgeon Pin is a cylindrical metal rod that connects the piston to the connecting rod. It serves as a pivot point, allowing the piston to move freely while maintaining alignment with the connecting rod. The gudgeon pin also helps transfer the force from the expanding gases in the combustion chamber to the connecting rod, which ultimately drives the crankshaft.

Attributes:
• Durable and can withstand high forces and repetitive loading cycles within the engine.
• Help minimize unwanted noises caused by piston slaps or excessive play between the pin and connecting rod.
• Piston pin provides smooth operation and minimizes the risk of galling or scoring.

Application:
A Gudgeon Pin is an essential component in an engine, connecting the piston to the connecting rod and enabling the transfer of motion and forces and is mainly used in Cat 1088XLC Forwarder - Wheel (Tree), 120H, 120K, 12K, 12M, 135H, 140, 140G, 140K, 140M, 150, 160, 160K and 160M Motor Grader, 2510 Harvester, 2570 Feller Buncher, 2748, 2948, 533, 539, 543, 550, 550B, 560B, 570, 570B, 574, 574B, 580, 580B, 584, TK370, TK371, TK380, TK381, TK711, TK721 and TK722 Tree Harvester, 55, D5N, D6N, D7R,MT725, MT735 and MTC735 Track Type Tractor, 307, 312, 315, 320, 322, 323D, 324D, 325, 325C, 325D, 328D, 329D, 330, 330D, 336D, 525C, 545C, 938G, 962H and D5G Oem Applications, 3116, 3126, 3126A, 3126B, 3126B, 3126E, 3126E, C7, C7, 3126E and C9 Engine (Piston), 322C, 324D, 325B, 325C, 325D, 326D, 328D, 329D, 349E, M325C, MC230 and MC230B Excavators, 325C, 325D and M325D Material Handler, 3516C, C15 and C7 Generator Set, 434F and 444F Backhoe, 450, 460, 465 and 470 Combine Harvester, 487 and 495 Harvester - 4 Wheel (Tree), 515B, 525, 525B, 525C, 535B, 535C and 545C Skidder, 550 Harvester-Tree, Wheeled Ctl Harvester, 560, 687 and 695 Harvester - 6 Wheel (Tree), 561N Pipelayer, 563 and 573 Harvester-Tree, Wheel Feller Buncher, 815 and 815B Compactor, 924G, 930H, 938G, 950F, 950G, 950H, 960F, 962G, 962H, 966D, 966E, 966F, 966G, IT38G, IT62G and IT62H Wheel Loader, 953, 953C, 963B and 963C Track Loader, 953, TR16, TR28, TR35 and TR43 Powertrain, AP-1000D, AP-1055D, AP-755, BB-781, BG-2455D, BG-260D, CS-683E, PM-102 and PM-122X Paving Equipment, C7 Engine - General Platform (C7), C7 Power Systems, C9.3 Engine-General Platform (C9), CL210, CL210B and CL215 Underground Mining, HAL3126 and SPP101 Pumper, Cement Trucks.

• Inner Diameter (in): 0.79

• Inner Diameter (mm): 20

• Material: Steel,Low Alloy Steel

• Outer Diameter (in): 1.54

• Outer Diameter (mm): 39

• Overall Length (in): 3.54

• Overall Length (mm): 89.95

• Weight (kg): 0.66

• Weight (lb): 1.46
