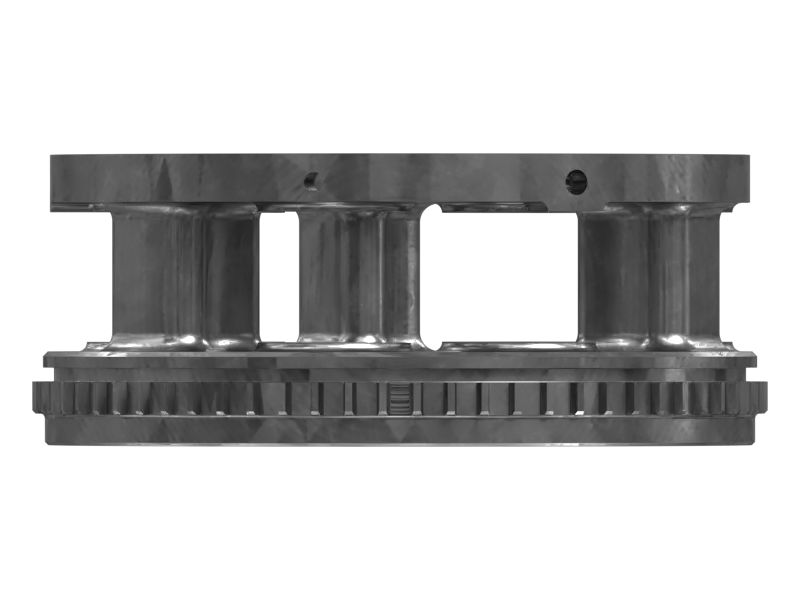

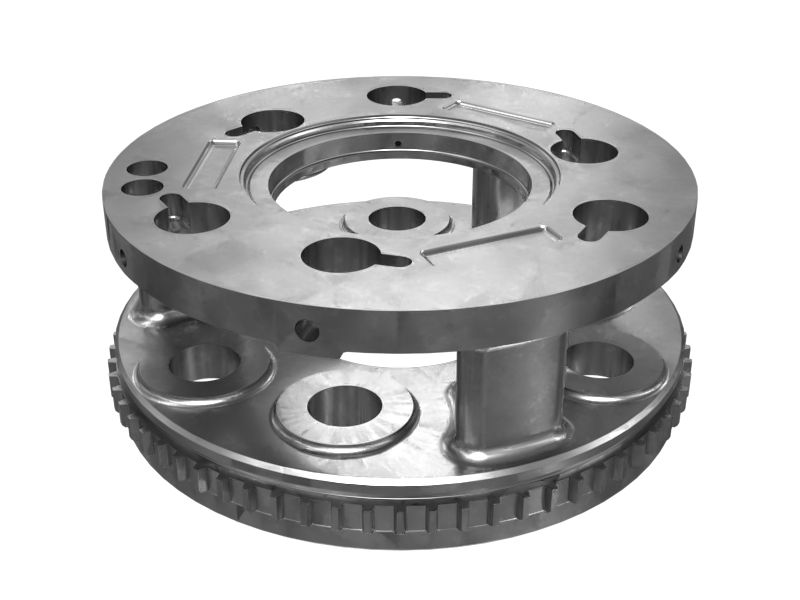

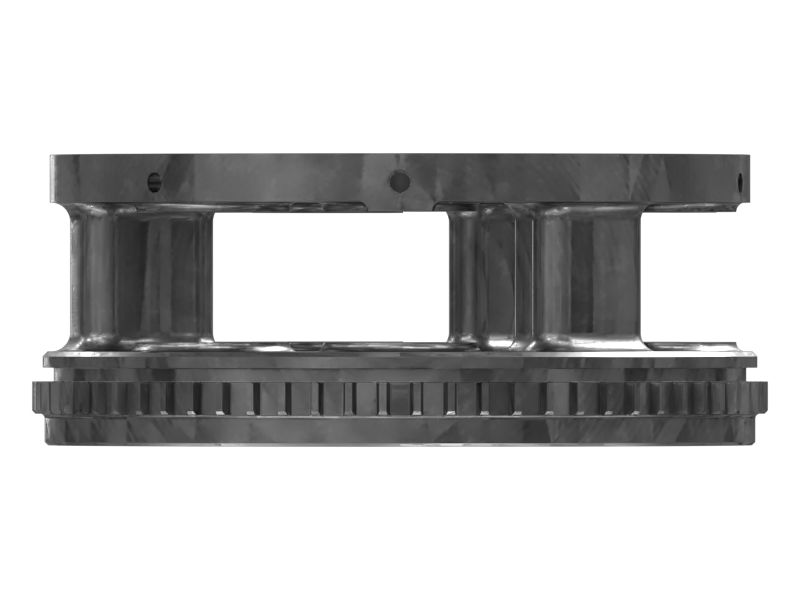

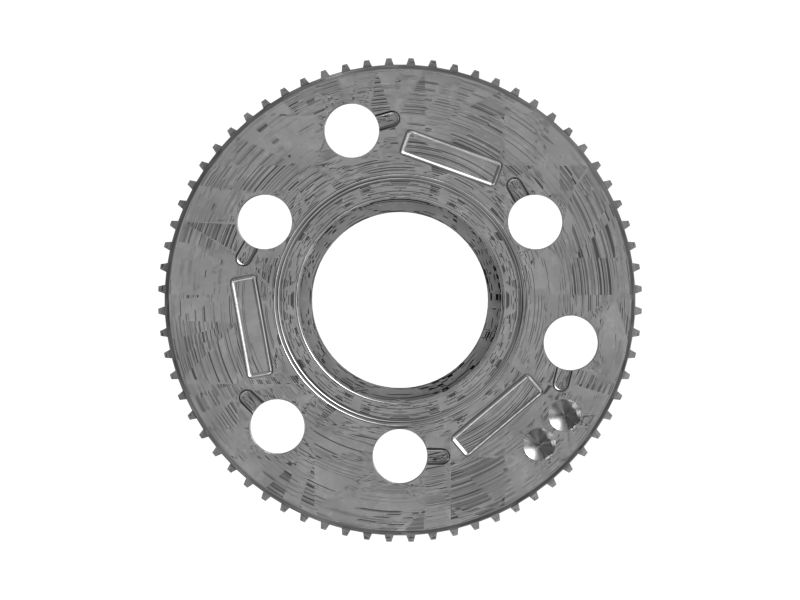

165-7789: ВОДИЛО В СБОРЕ

Description:
Cat drive train components must endure incredible torque, high impact loads, and frequent direction and gear changes. Cat designs and manufactures its transmissions and final drive components with these demands in mind. The result is a drive train that lasts longer and works harder over the life of the machine. Cat carrier assemblies are key components in the drive train that connect the planet gears with the sun gear in a planetary drive system.

Attributes:
• Planetary carrier assembly with sleeve bearing
• External Spline Number of Teeth: 68
• Pitch Diameter: 215.9 mm (8.500 in)

Application:
Cat carrier assemblies are used in the planetary transmission of Cat machines. Consult your owner’s manual or contact your local Cat Dealer for more information.

• Outside Diameter (mm): 232.01

• Inside Diameter (mm): 84.6

• Overall Length (mm): 91.47

• Outside Diameter (in): 9.134

• Inside Diameter (in): 3.330

• Overall Length (in): 3.601

• Material: Sealants / Adhesives Adhesive
