160-8504: ГАЙКА

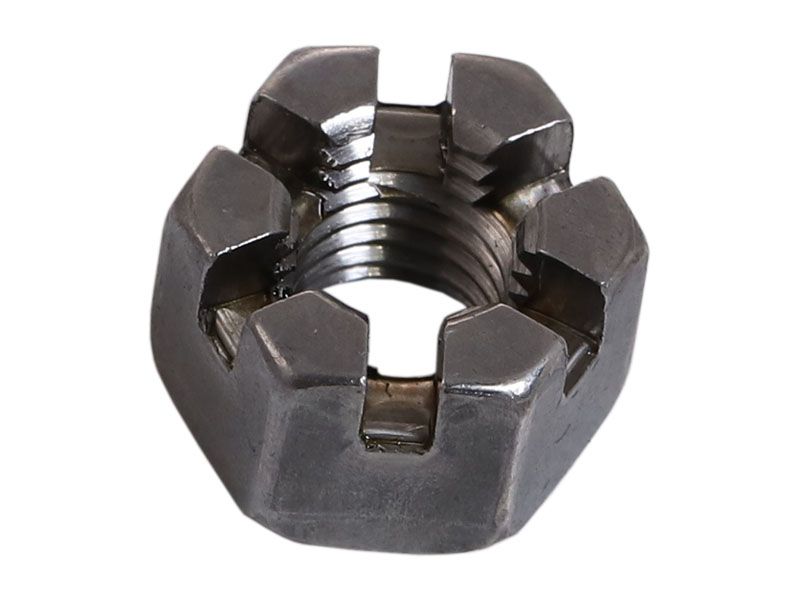

A Slotted Hexagonal Nut has six sides with a slot cut into one of the faces. The slot allows for a screwdriver or other tool to be inserted and used to turn the Nut. It provides a secure grip, which makes it easy to tighten and loosen the Nut using a wrench or pliers.

Attributes:
Provided with a slot width of 2.92mm to accommodate a cotter pin.
Manufactured to precise specifications and built for durability, reliability, and productivity.

Applications:
A Slotted Hexagonal Nut is threaded onto the bolt or rod and tightened to secure two components together, mostly used in Cat® 305, 305.5, 305.5E, 306, 306.5, 306E, 307, 307.5, 307E, 308, 308E, and 309 Excavators, 432F Backhoe, 6M20, 8M20, and 9M20 Generator Set, B6 and B8 Work Tools, D10, D10R, D10T, D11, D11R, D11T, and D9 Track Type Tractor.

• Hex Size (in): 0.62

• Hex Size (mm): 16

• Thread: RH Coarse

• Nut Type: Hex

• Thread Size (in - TPI) (in): M10-1.5

• Weight (kg): 0.02

• Weight (lb): 0.03

• Thread Size (dia x pitch) (mm): M10x1.5

• Class or Grade: ISO 898-2 Class 8

• Hand of Thread: RH

• Material: Carbon Steel
