154-1935: ОПОРА ЗАГЛУШКИ

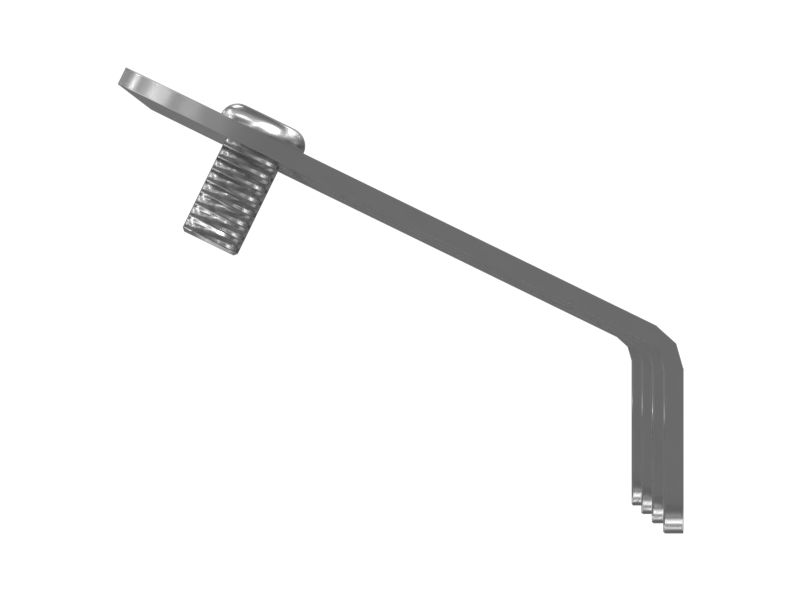

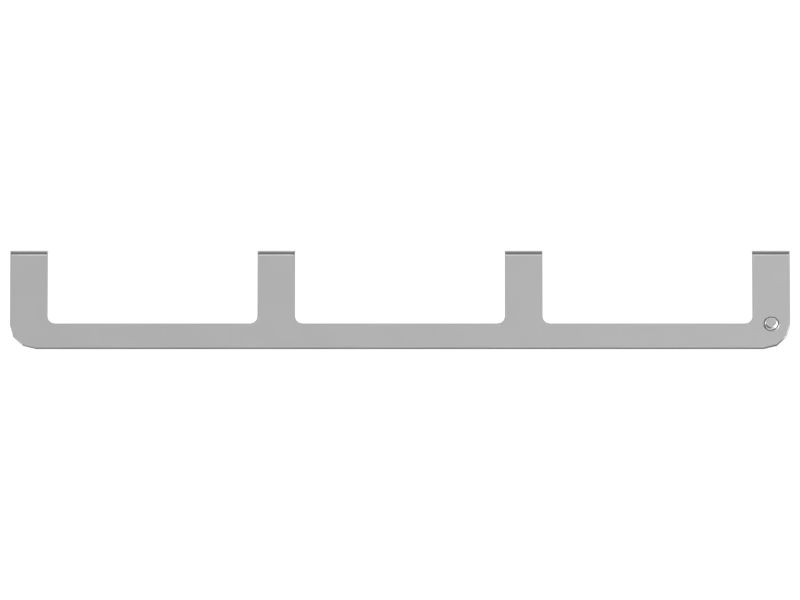

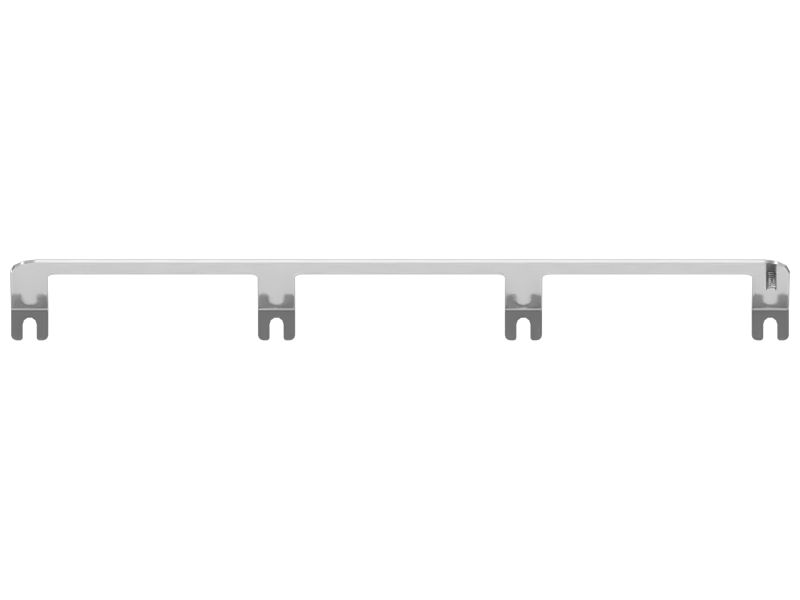

A bus bar connector for engine glow plugs is a type of electrical connector used to connect the glow plugs in an engine to the power source. Glow plugs are heating devices installed in diesel engines to assist with cold starting by preheating the combustion chambers. The bus bar connector is designed to connect multiple glow plugs together in a parallel configuration. It allows for a centralized power supply connection, simplifying the wiring and ensuring efficient power distribution to all the glow plugs.

Attributes:
It is designed to be compact and space-efficient to fit within the limited confines of the engine compartment.
withstand the operating conditions within the engine compartment, including heat, vibration, and exposure to engine fluids.
It provides a secure and reliable connection between the glow plugs.
The coating to Ep-Fe/Zn5/CM2

Applications:
A bus bar connector allows for efficient power distribution to the glow plugs, aiding in reliable cold starting. It is mostly used in Cat® 216, 216B, 226, 226B, 232, 232B, 232D, 232D3, 236D, 239D, 242B, 247B, 249D and 257B Skid Steers, 3003, 3011C, 3013, 3014, 3024, 3024C, C1.1 and C2.2 Engine (Piston), 301.5, 301.6, 301.7, 301.8, 302, 304.5, 305.5, 306.5, 307 and 307.5 Excavators, 902 Wheel Loader, AP255E, BB-621C, BB621E, CB-334D, CB-334E, CB-335D, CB-335E, CB34 and CC34 Paving Equipment, C1.1, C2.2, D20, D25, D30 and XQP20 Generator Set, C2.2 Power Systems, CB-334E, CB34B, CB36B, CB4.0, CB4.4, CC34B, and CC4.0 Compactors.

• Overall Length (in): 11.65

• Overall Length (mm): 296

• Thickness (in): 0.05

• Thickness (mm): 1.2

• Weight (kg): 0.04

• Weight (lb): 0.08

• Material: Corrosion Preventative Fluid,Carbon Steel,Alloy Z
