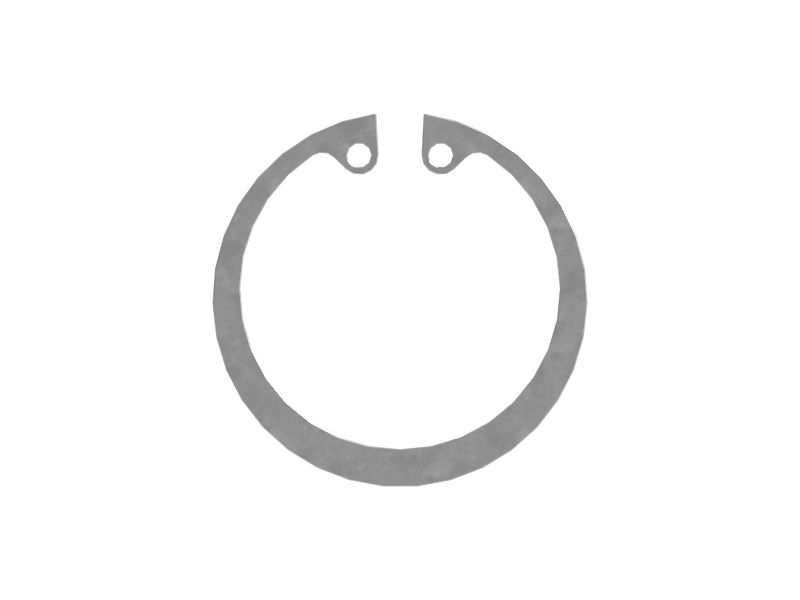

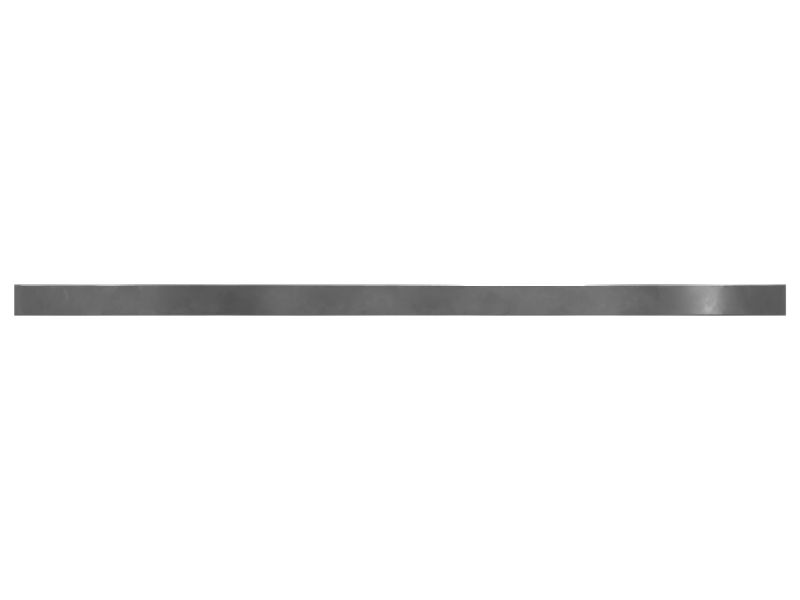

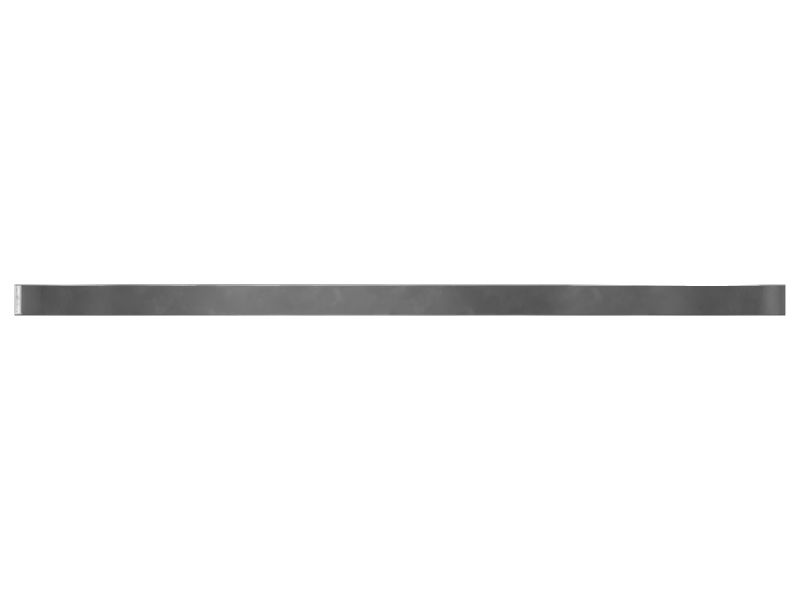

154-0874: ПРУЖИННОЕ КОЛЬЦО

An Internal Retaining ring, also known as an internal circlip or internal snap ring, is a type of fastening device used to secure components or assemblies onto a shaft or within a bore. It is designed to fit inside a groove or recess in the housing or shaft and provide axial retention of the components.

Attributes:
Manufactured to a precise specification and are built for durability, reliability, and productivity.
The split allows the ring to expand and contract for Installation and removal.

Applications:
An Internal Retaining ring is used to secure Wrist Pin in Piston and is mainly used in Cat® 216, 216B, 226, 226B, 226D, 226D3, 232, 232B, 232D, 232D3, 236D, 239D, 242B, 247B, 249D, and 257B Skid Steers, 3003, 3011C, 3013, 3013C, 3014, 3024, 3024C, C1.1, C1.5, C1.7 and C2.2 Engine (Piston), 302.5, 303.5, 304, 304.5, 305, 305.5, 306, 306.5, 307, and 307.5 Excavators, 901, 902, 902, 902, and 903 Wheel Loader, AP255E, BB-621C, BB621E, CB-214D, CB-214E, CB-224D, CB-224E, CB-225D, CB-225E, CB-334D, CB-334E, CB-335D, CB-335E, CB22, CB24, CB32, CB34, CC24, and CC34 Paving Equipment, C1.1, C1.5, C2.2, D20, D25, D30, XQ20, XQ35, and XQP20 Generator Set, C2.2 Power Systems, CB-334E, CB2.5, CB2.7, CB2.9, CB22B, CB24B, CB32B, CB34B, CB36B, CB4.0, CB4.4, CC2.6, CC2.7, CC24B, CC34B, and CC4.0 Compactor.

• Diameter (in): 1.19

• Diameter (mm): 30.1

• Thickness (in): 0.06

• Thickness (mm): 1.59

• Weight (kg): 0.002

• Weight (lb): 0.004

• Width (in): 0.05

• Width (mm): 1.2

• Material: Carbon Steel
