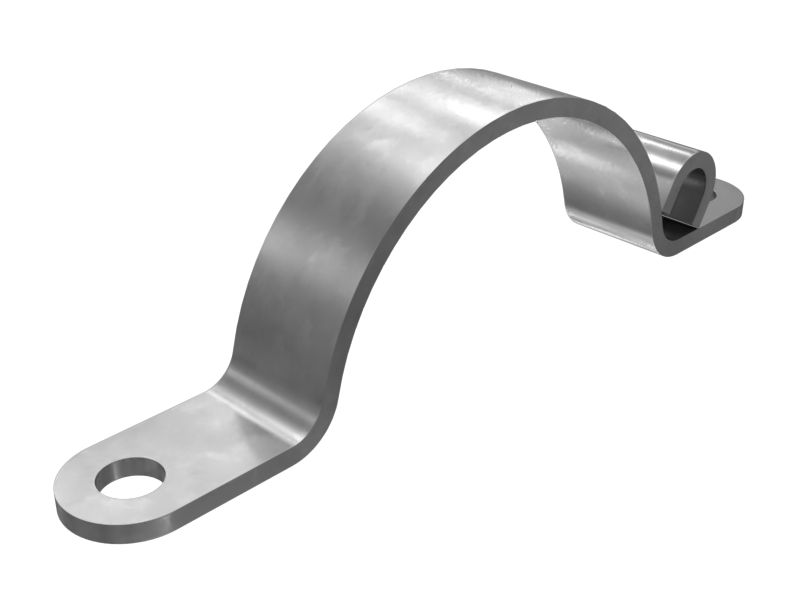

153-9482: ХОМУТ В СБОРЕ

A Single Tube Half Saddle Clamp is used to secure tubes in a fixed position. It has saddle that fits over the tube and a bolt or screw that tightens the saddle down onto the tube holding them securely in fixed place. This Clamp assembly consists of a saddle clamp and a hoop that is welded with the Clamp which prevents the clamp from rotating or loosening. They are often used in situations where it is not possible or desirable to mount the tube directly to the surface, such as when the surface is uneven or irregular.

Attributes:
• Suitable to clamp tube with outer diameter of 101.6mm
• Manufactured from steel which provides high strength, durability and wear resistance.
• Provided with 2 mounting holes and a hoop to fit the fastener of size M10
• Provided a hoop with thickness of 4mm and minimum weld length of 20mm, to lock with the flange.

Applications:
A Single Tube Half Saddle Clamp is used to hold or secure Tubes in Air and Water Lines Group with the help of other half clamp, hoops and fasteners.

• Distance between retainer holes (in): 6.85

• Distance between retainer holes (mm): 174

• Fits Bolt Sizes (in): 3/8

• Fits Bolt Sizes (mm): M10

• Inside Diameter (in): 4

• Inside Diameter (mm): 101.6

• Length (in): 7.87

• Length (mm): 200

• Material: Steel,Carbon Steel,Alloy Steel,Alloy Zinc,Structu

• Material Thickness (in): 0.15

• Material Thickness (mm): 4

• Width (in): 1.02

• Width (mm): 26
