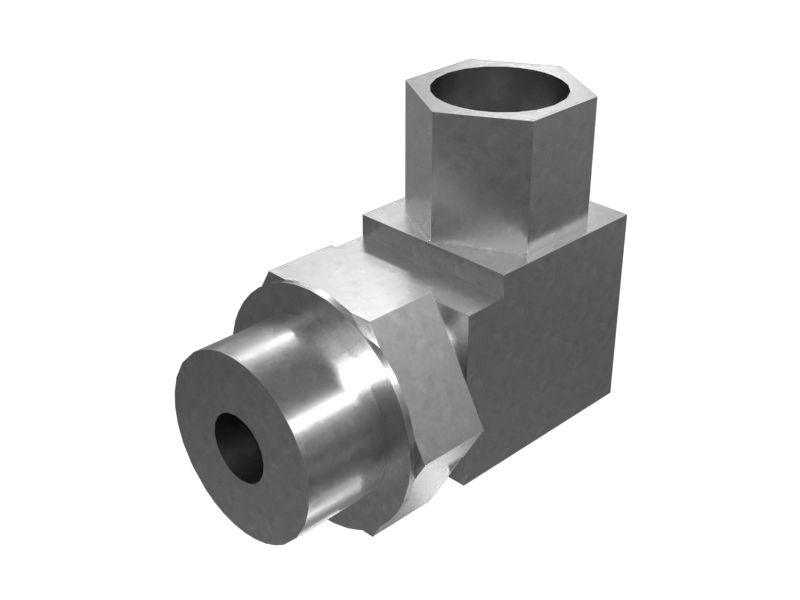

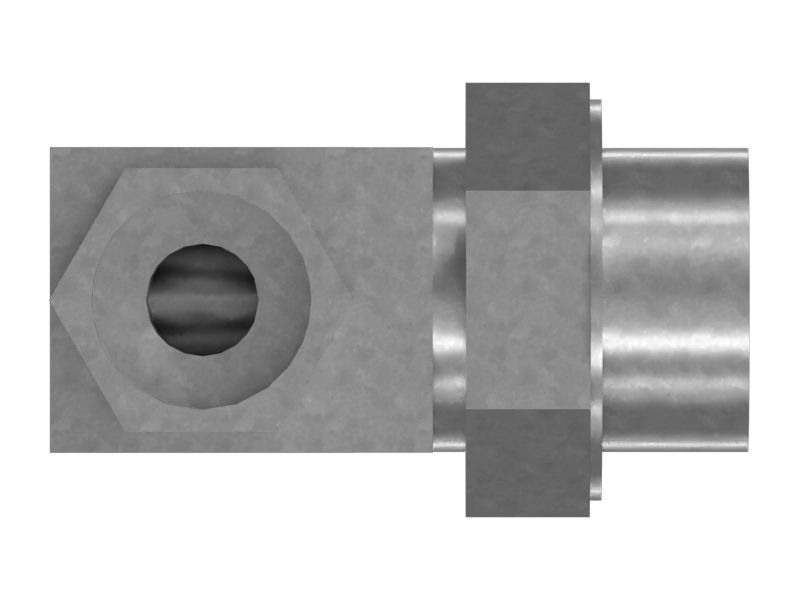

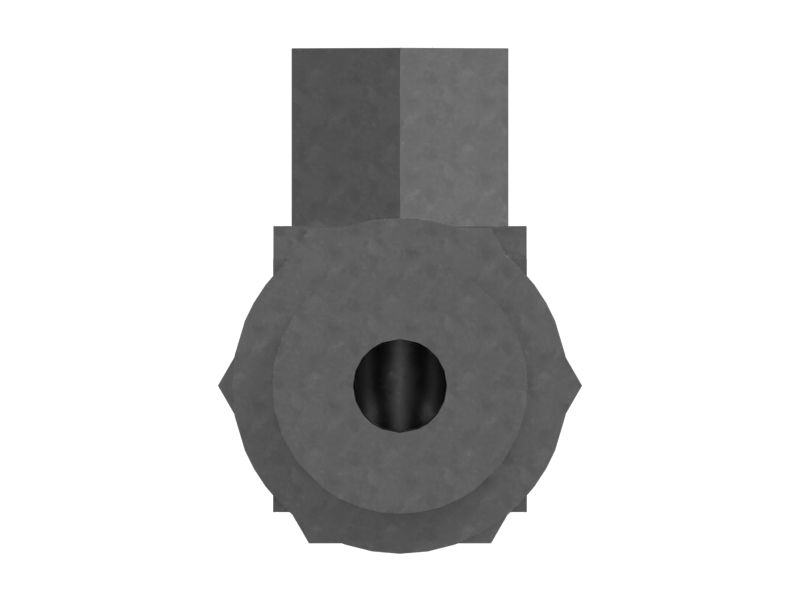

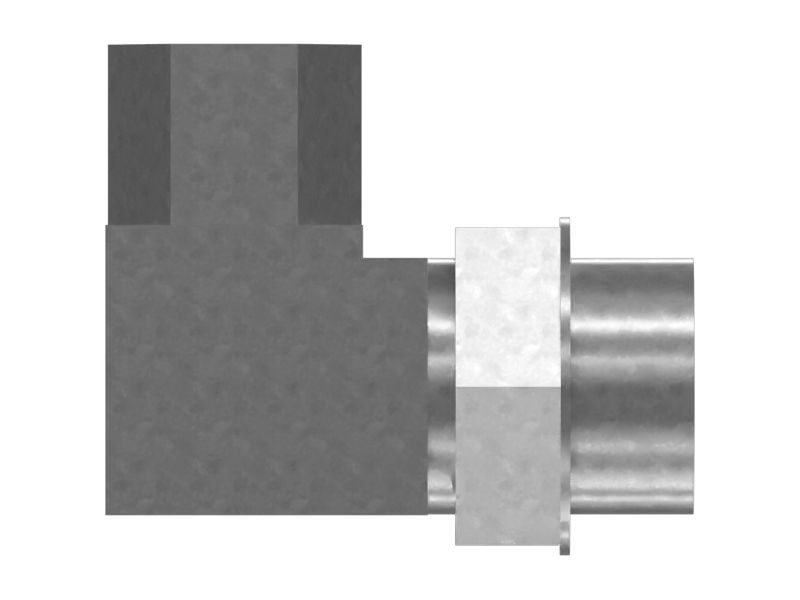

153-6229: КОЛЕНЧАТЫЙ ПАТРУБОК 90-ГРАД.

The 90-degree swivel Elbow is designed to enable smooth directional changes in the flow of hydraulic fluids, this elbow features a swiveling mechanism that allows it to rotate up to 90 degrees, providing flexibility in routing hydraulic lines and connections. Its design ensures reliable performance and leak-free operation, even under high pressure and demanding conditions.

Attributes:
• Facilitates secure connection between O-ring port to O-ring face seal.
• Features a 90-degree angle design for efficient flow direction changes.
• Resistant to high-pressure conditions.
• Provides flexibility in hydraulic line routing.

Applications:
The 90-degree swivel Elbow is used for efficient routing and connection of hydraulic lines and components, thereby optimizing fluid flow and system performance.

• Coolant and Urea Compatible Seal: 6V-5138 (1-14), 6V-5064 (1-5/16-12)

• Oil and Fuel Compatible Seal: 228-7091 (1-14), 238-5084 (1-5/16-12)

• Transmission and Hydraulic Oil Compatibile Seal: 7J-9108 (1-14), 7M-8485 (1-5/16-12)

• Material: Carbon Steel
