151-8274: ПЛАСТИНА

Description:
Cat drive train components must endure incredible torque, high impact loads, and frequent direction and gear changes. Cat designs and manufactures its transmissions and final drive components with these demands in mind. The result is a drive train that lasts longer and works harder over the life of the machine. Discs and plates are designed to work with the differential to transmit power and compensate for difference in speeds between wheels on either side of machine and provide for positive traction.

Attributes:

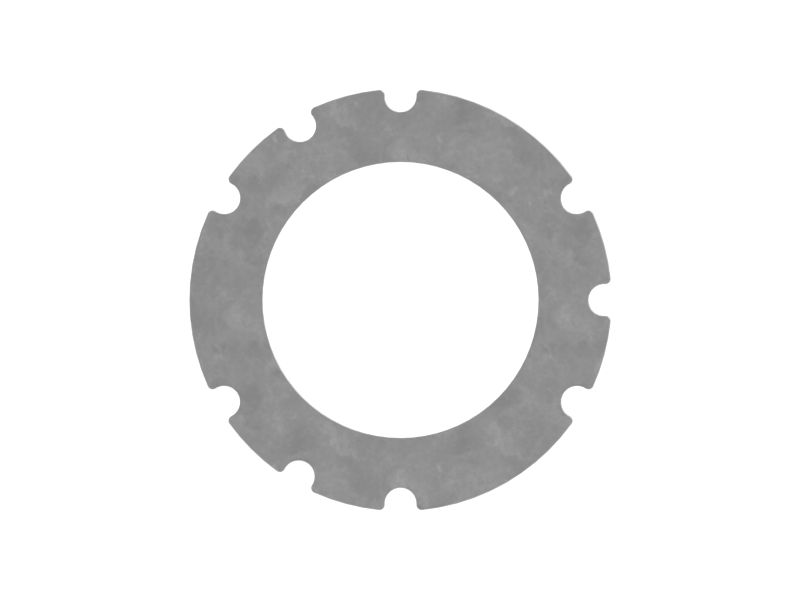

• Hardened steel clutch plate
• 9 notches with dowel and spring clearance provide exact OEM fit
• Outside Diameter: 256 mm (10.0787 in)
• Inside Diameter: 168 mm (6.614 in)

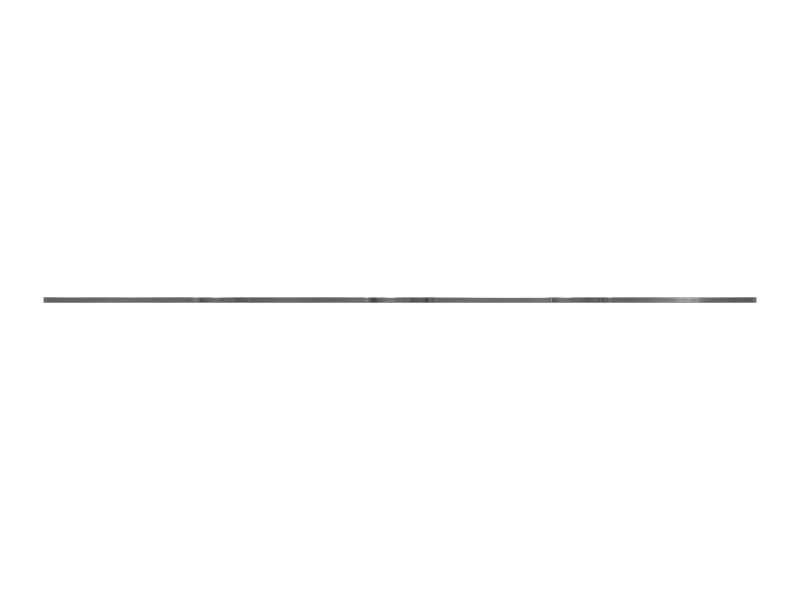

• Thickness: 1.9 mm (0.0748 in)

Application:
Consult your owner’s manual or contact your local Cat Dealer for more information.

• Outside Diameter (mm): 256

• Inside Diameter (mm): 168

• Thickness (mm): 1.9

• Outside Diameter (in): 10.0787

• Inside Diameter (in): 6.614

• Thickness (in): 0.0748

• Material: Carbon Steel
