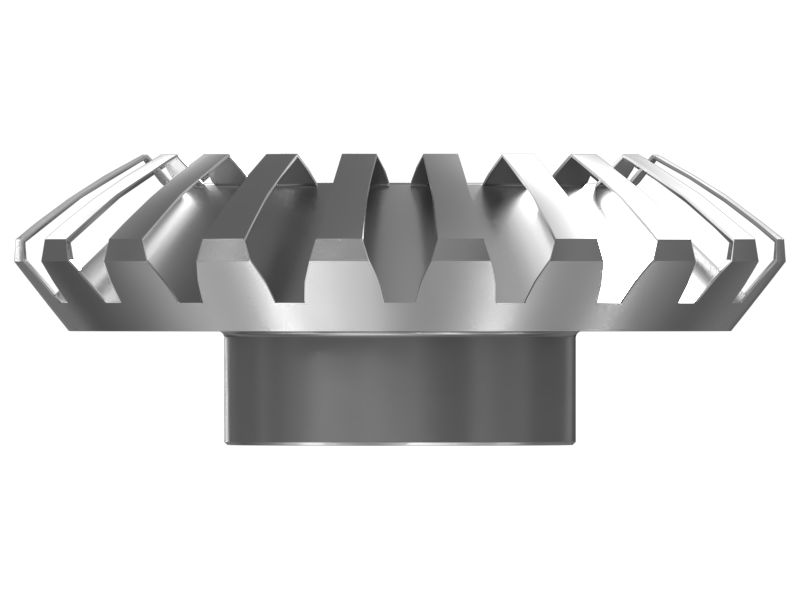

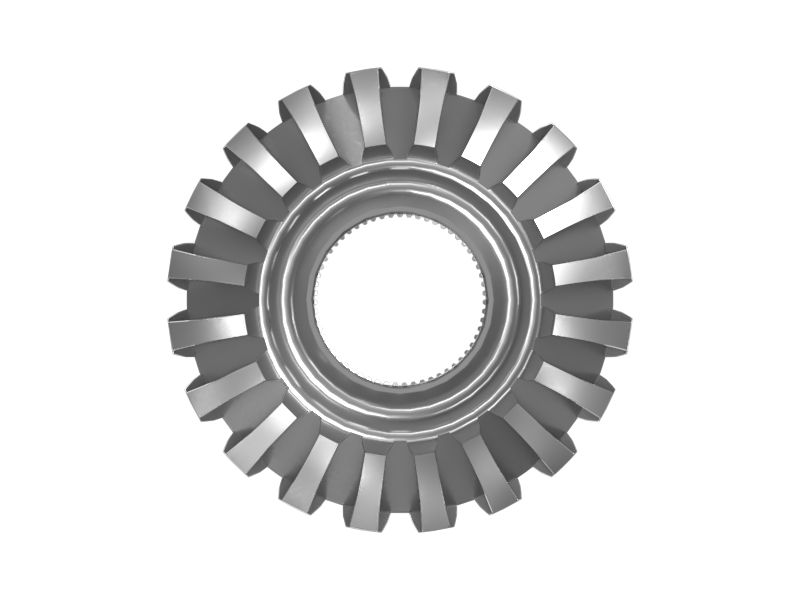

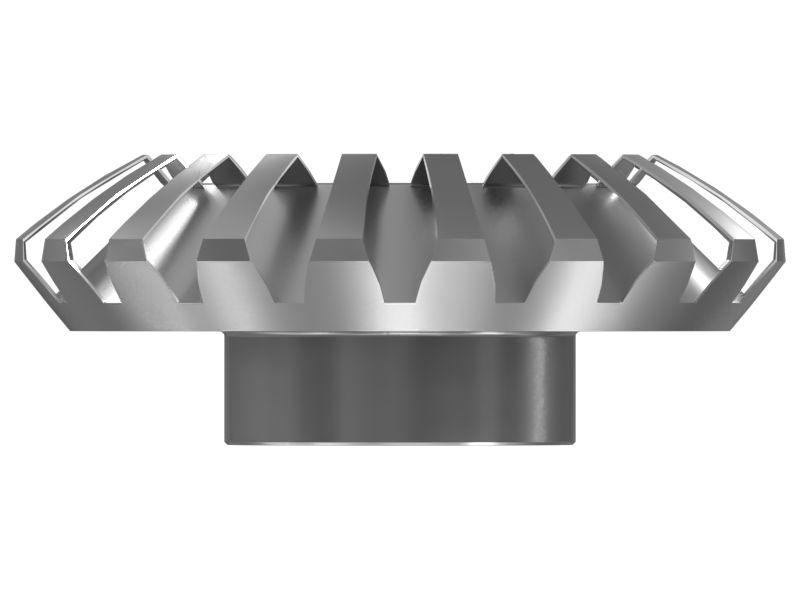

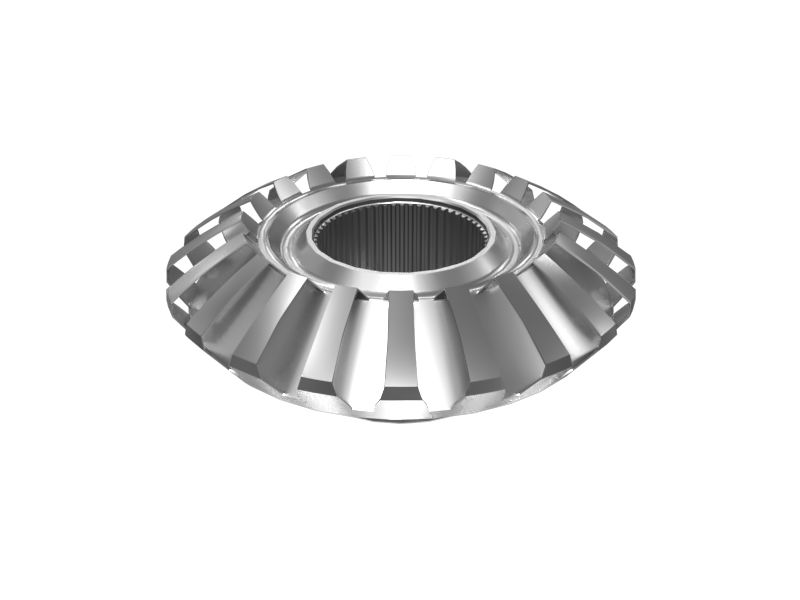

151-6395: ШЕСТЕРНЯ ДИФФЕРЕНЦИАЛА

Description:
Bevel gears, like part 151-6395, transfer rotary motion between intersecting shafts that meet at right angles. They have cone-shaped profiles, teeth that project radially from their bore, and operate in pairs with varying teeth counts but similar angle pressure, tooth length, and diametric pitch. They're used to alter speeds and increase torque in mechanical applications such as differential drives, plant and mill machinery, and power tools.

All Cat gears have unique metallurgy compositions tailored to specific applications, with special steel formulas that improve impact resistance and ensure uniformity and proper load transfer. Some Cat gears also undergo proprietary heat treat processes to improve surface, bore, and core hardness. The result is greater durability, which means longer life and better performance.

Attributes:
• Hardened steel gear
• Straight Bevel Gear Number of Teeth: 20
• Pitch Diameter: 254 mm (10.00 in)
• Internal Spline Number of Teeth: 59
• Inside Diameter: 92.03 mm (3.62 in)
• Outside Diameter: 259.22 mm (10.21 in)
• Width: 96.63 mm (3.80 in)

Application:
Consult your owner's manual or contact your local Cat Dealer for more information.

• Material: Steel,Low_Alloy Steel,Low Alloy Steel

• Number of Teeth: 20 (Gear); 59 (Internal Spline)

• Inside Diameter (mm): 92.03

• Outside Diameter (mm): 259.22

• Width (mm): 96.63

• Inside Diameter (in): 3.62

• Outside Diameter (in): 10.21

• Width (in): 3.80
