150-3754: ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ

Description:
Cat pressure switch assemblies are designed to open and close based on the change in system set pressure. Cat components make certain that your equipment is operating at an optimal level.

Attributes:

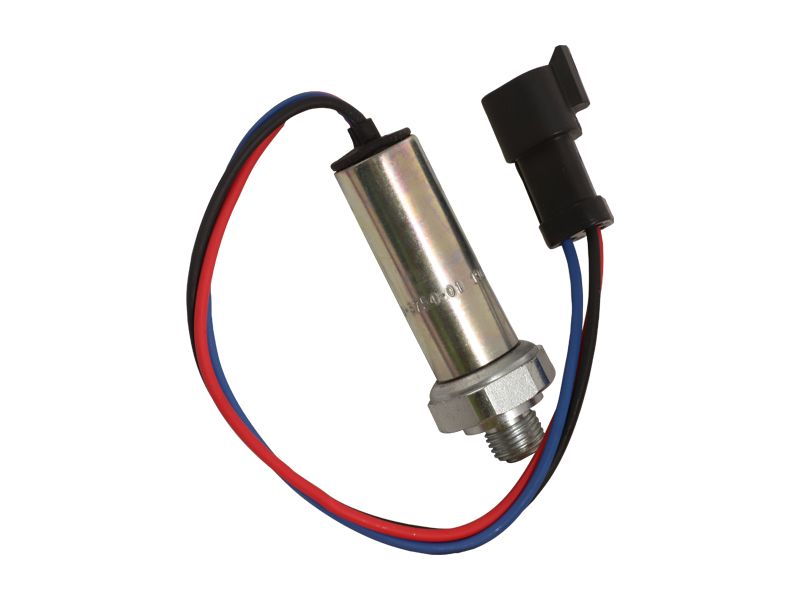

• Pressure switch with pigtail connector
• Actuation Pressure: 5857 kPa (849 psi)
• Contact Position: Normally open and normally closed
• Connector Type: 3-pin DT
• Medium: Oil, fuel, air
• Thread Size: 9/16-18
• RoHS compliant
• Dust proof and splash resistant
• Rugged design for long service life
• High precision for consistent performance
• Easy and fast mounting
• Designed to work in unison with the rest of your Cat components to ensure maximum potential of your equipment

Application:
Typically used in braking systems in Cat machines. Consult your owner's manual or contact your local Cat Dealer for more information. Cat components can operate in heavy-duty applications such as severe vibration, shock, extreme operating temperature ranges, thermal cycle, thermal shock, humidity, corrosion and excessive dust.

• Overall Length (mm): 378.67

• Wire Length (mm): 250

• Hex Size (mm): 30.15

• Connector Type: 3-pin DT

• Overall Length (in): 14.9

• Wire Length (in): 9.84

• Hex Size (in): 1.187

• Thread Size (in): 9/16-18

• Material: Carbon Steel
