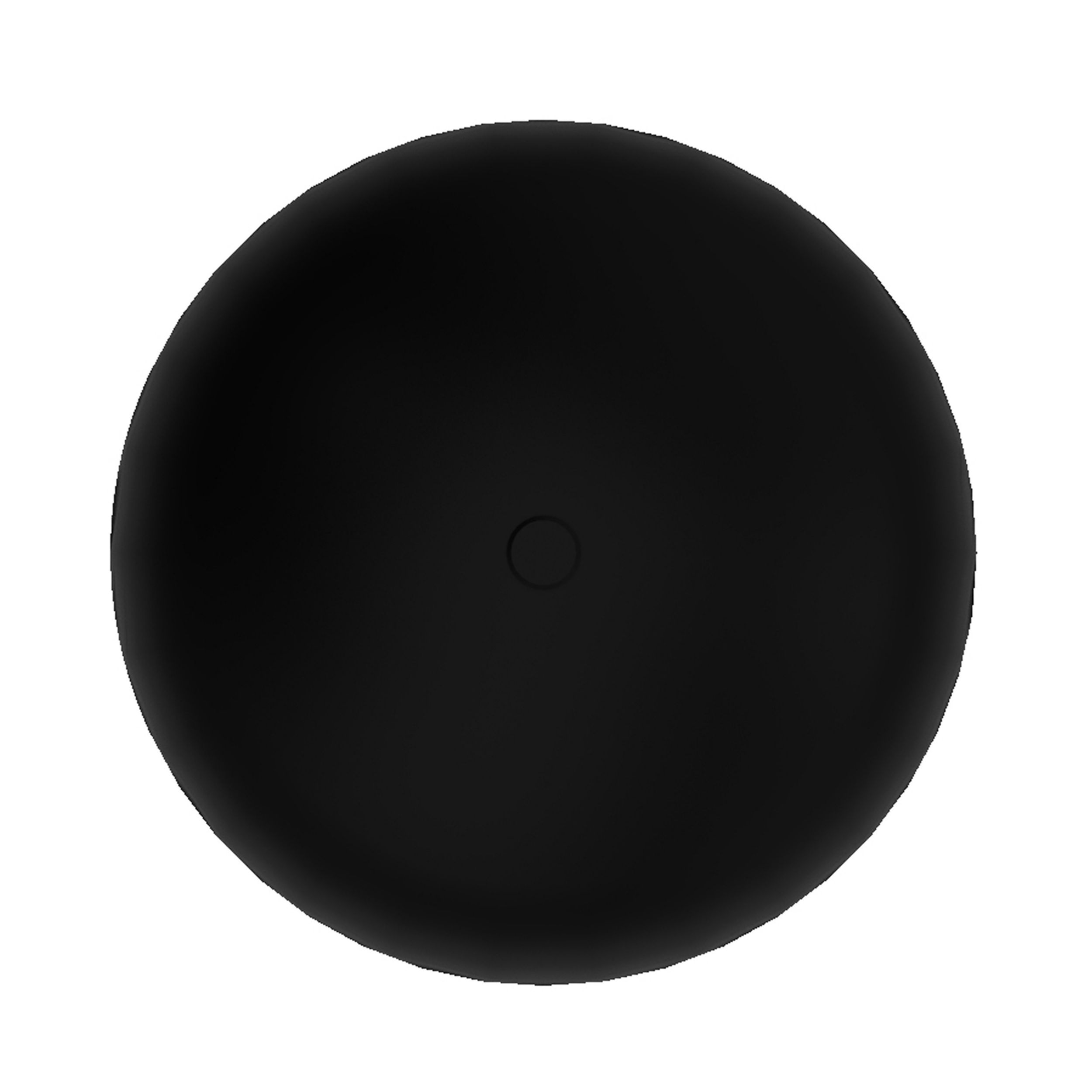

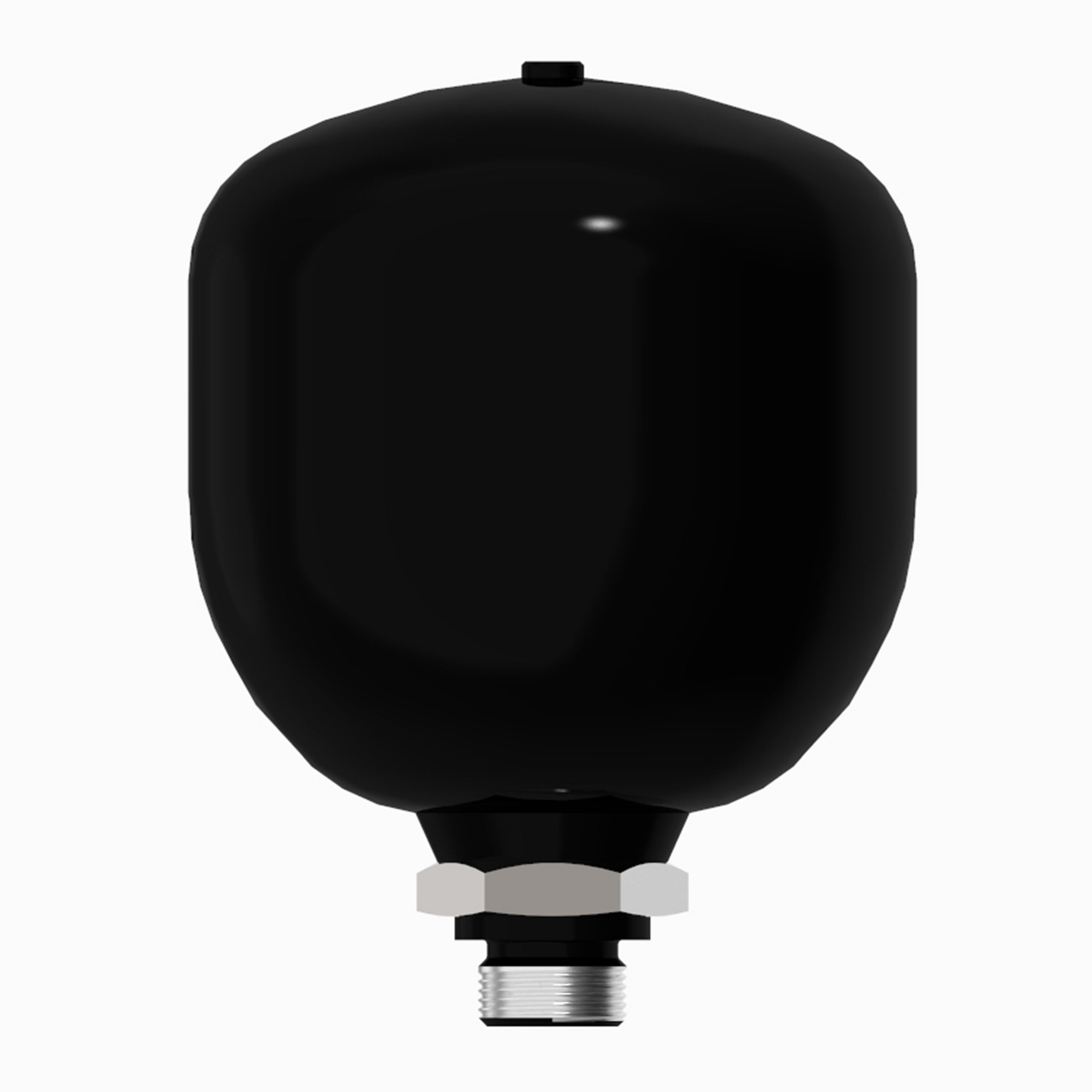

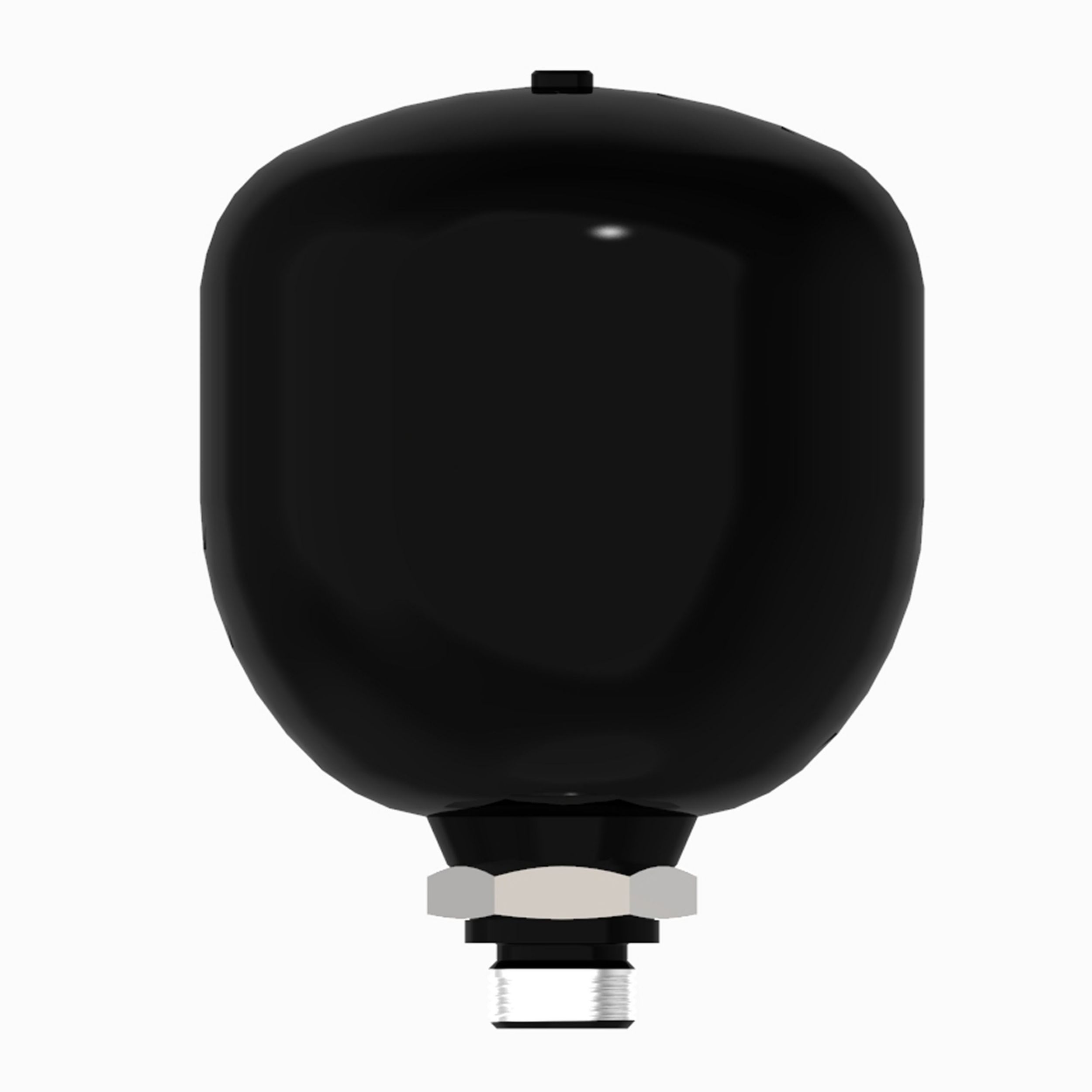

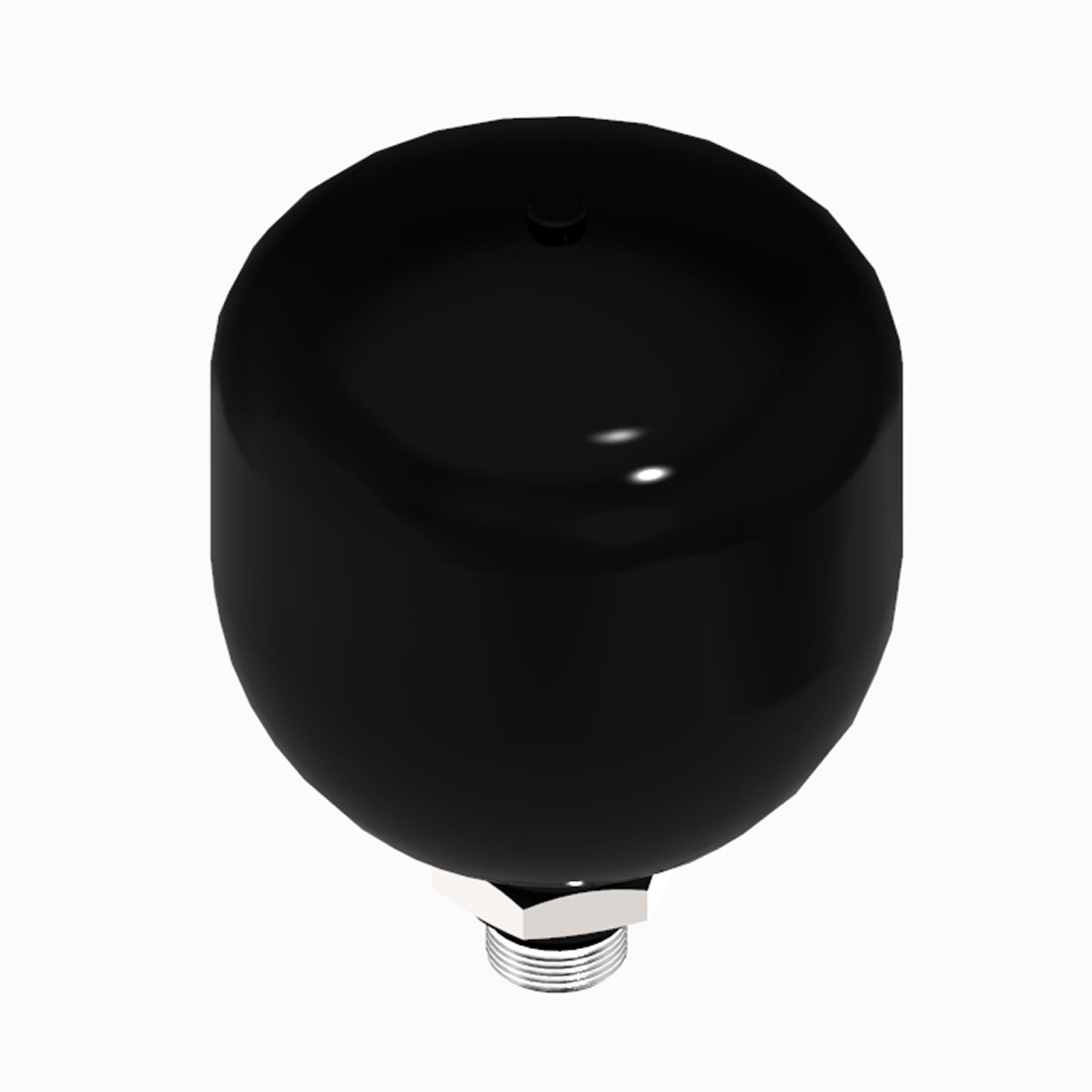

149-0686: ГИДРОАККУМУЛЯТОР

Description:
A Hydraulic Accumulator consists of a fluid section and a gas section with the diaphragm acting as the gas-proof screen. The fluid section is connected to the hydraulic circuit so that the diaphragm accumulator draws in fluid when the pressure increases and the gas is compressed.

Attributes:
• Maximum operating pressure is 7200 kPa.
• Minimum burst pressure is 82740 Kpa.
• Charging medium is dry nitrogen.
• Capacity of the vessel is 0.32 L.
• Painted Black

Applications:
A Hydraulic Accumulator is used in low flow-rate hydraulic systems to store pressurized hydraulic fluid and release it as needed in order to maintain steady pump flow and pressure, mostly used in CAT 216, 226, 228, 236, 239D3, 246, 248, 249D3, 297D, 297D XHP Skid Steer Loaders, 301.5, 301.6, 301.8, 302.5 Mini Hydraulic Excavators, 910K, 914K Wheel Type Loaders, 420D, 432D, 442D Backhoe Loaders.

• Diameter (in): 3.66

• Diameter (mm): 93

• Length (in): 4.84

• Length (mm): 123

• Thread: 3/4-16 UNF

• Weight (kg): 1.3

• Weight (lb): 2.87

• Material: Carbon Steel
