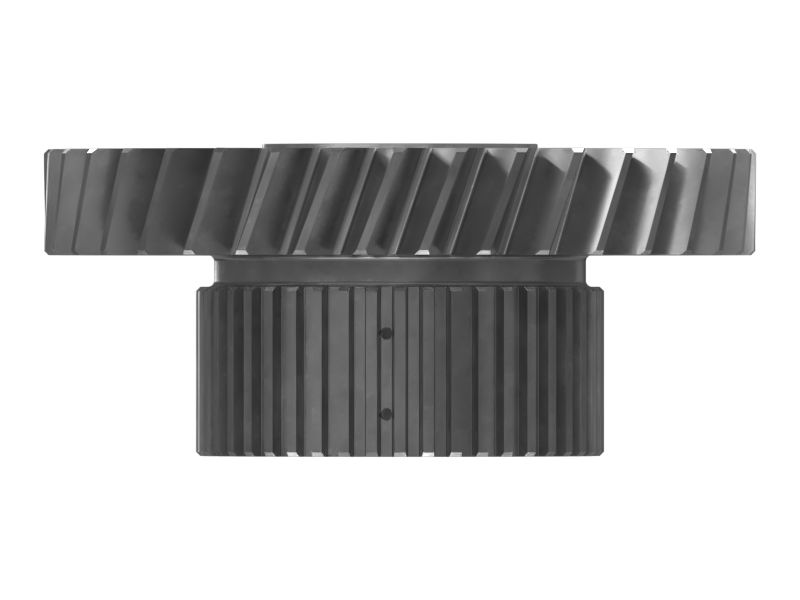

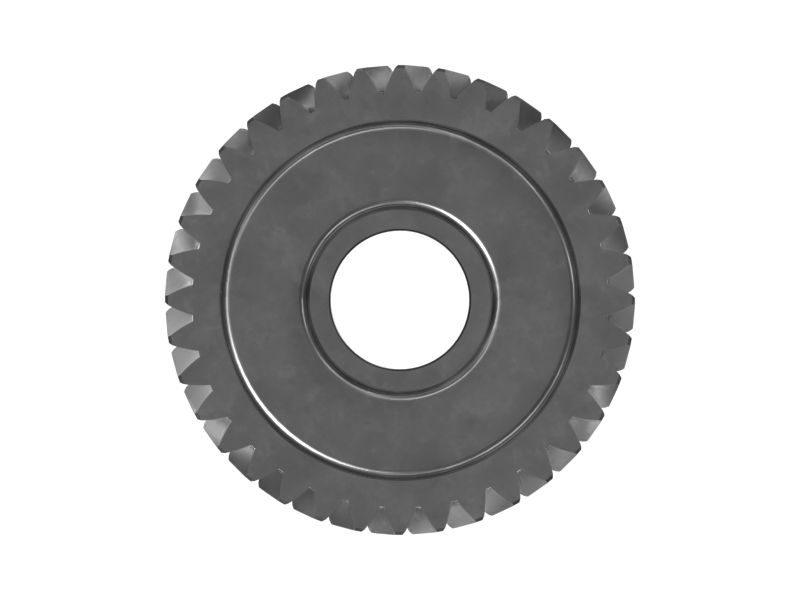

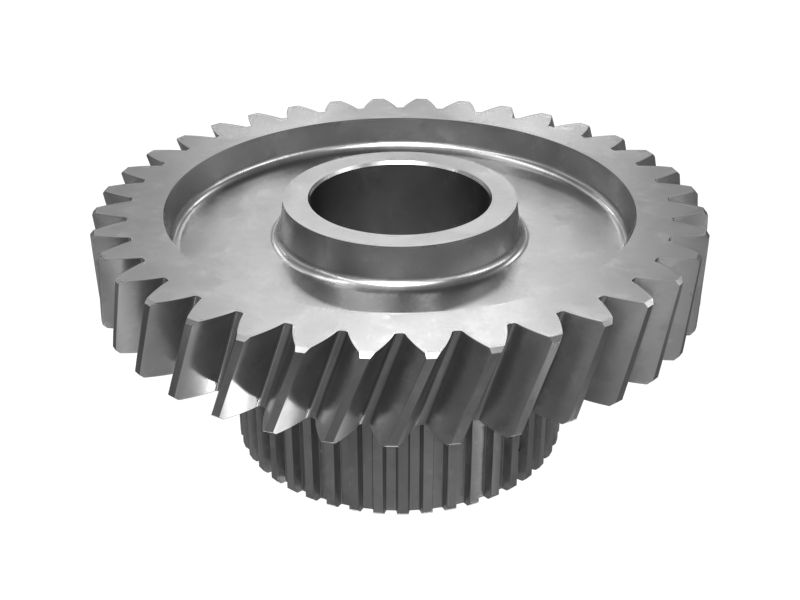

147-0210: ШЕСТЕРНЯ

Description:
Gear is used for the output shaft in transmissions on the Cat Backhoe product line.

Attributes:
• Material: Steel
• End 1 External Spline Number of Teeth: 45
• End 2 Helical Gear Number of Teeth: 36
• Helix Hand: RH
• Cat gears are machined from carefully selected materials to exacting specifications that match the loads encountered in Cat machines. They are manufactured using special, and in some cases proprietary, heat treat processes — including case carburizing, nitriding, and induction hardening. Cat gears have the industry's highest power density, or the amount of power a gear can transmit relative to its size and are designed with reusability in mind. Consequently, they are more durable and keep your overall machine operating costs down.

Application:
Consult your owner's manual or contact your local Cat Dealer for more information.

• Material Description: Steel

• Outside Diameter (mm): 168.73

• Inside Diameter (mm): 50.009

• Height (mm): 73.8

• Outside Diameter (in): 6.642

• Inside Diameter (in): 1.968

• Height (in): 2.905

• Material: Carbon Steel,Low Alloy Steel
