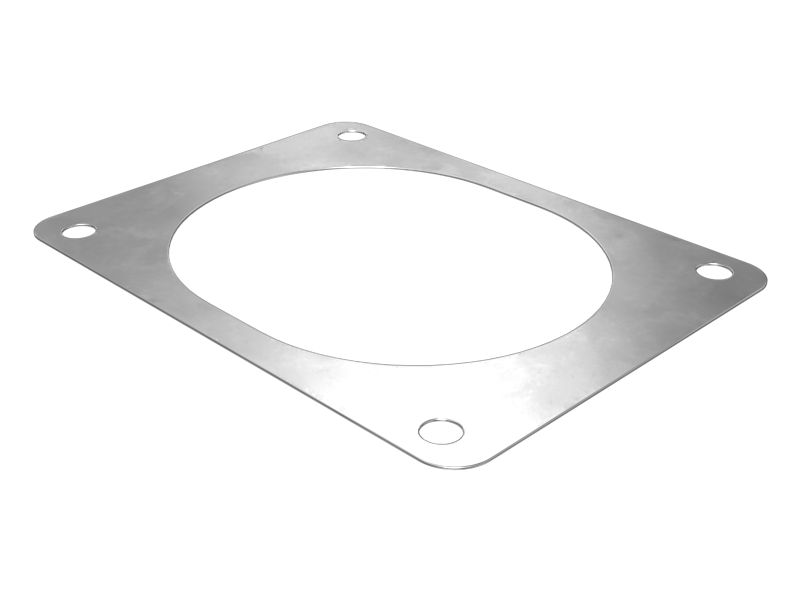

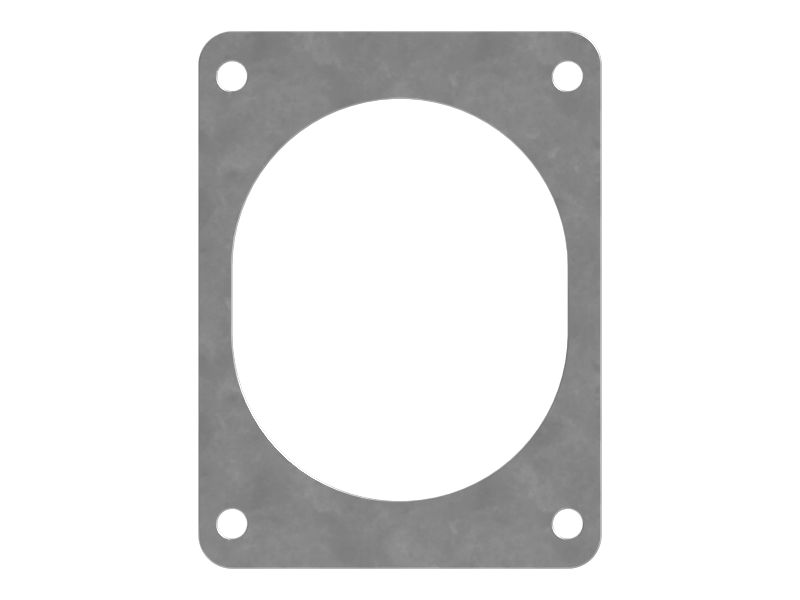

146-1689: ПРОКЛАДКА

An Exhaust Pipe Gasket serves as a sealing component between the exhaust pipe flange and the engine enclosure frame. Its function is to prevent exhaust gas leaks at the connection point, ensuring that all exhaust gases are properly directed through the pipe. It features a slot in the center to match the surfaces of mating components. The gasket also features holes to accommodate bolts or other components in the assembly.

Attributes:
• Withstands the demanding thermal conditions of the exhaust system
• Manufactured to precise specifications and is built for durability and reliability

Applications:
An Exhaust Pipe Gasket compresses, filling any gaps between the exhaust pipe plate and the engine enclosure frame. This compression creates a tight seal that prevents exhaust gases from leaking out of the connection point.

• Hole Size (in): 0.53 (4X)

• Hole Size (mm): 13.5 (4X)

• Length (in): 9.45

• Length (mm): 240.0

• Material: Low compressibility, sheet gasket material,Rubber

• Style: Flat

• Thickness (in): 0.03

• Thickness (mm): 0.8

• Type: Square-Rectangular

• Width (in): 7.09

• Width (mm): 180.0
