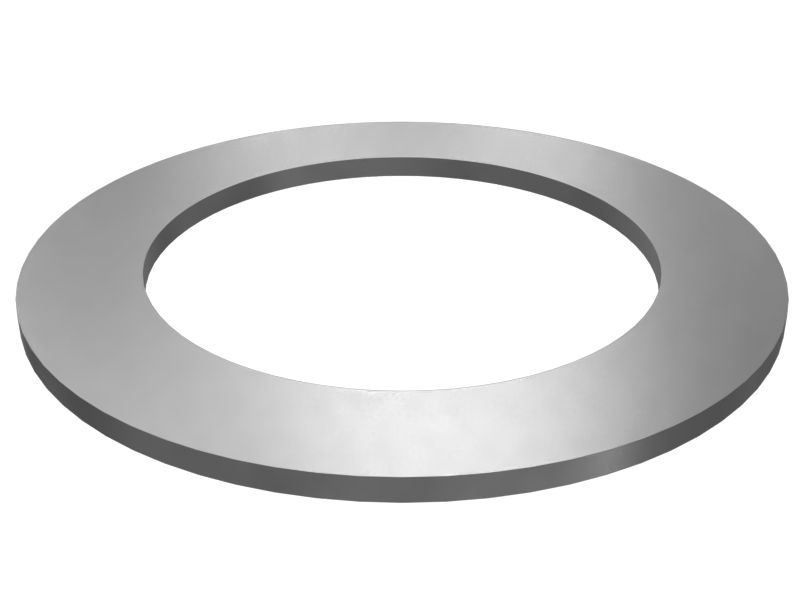

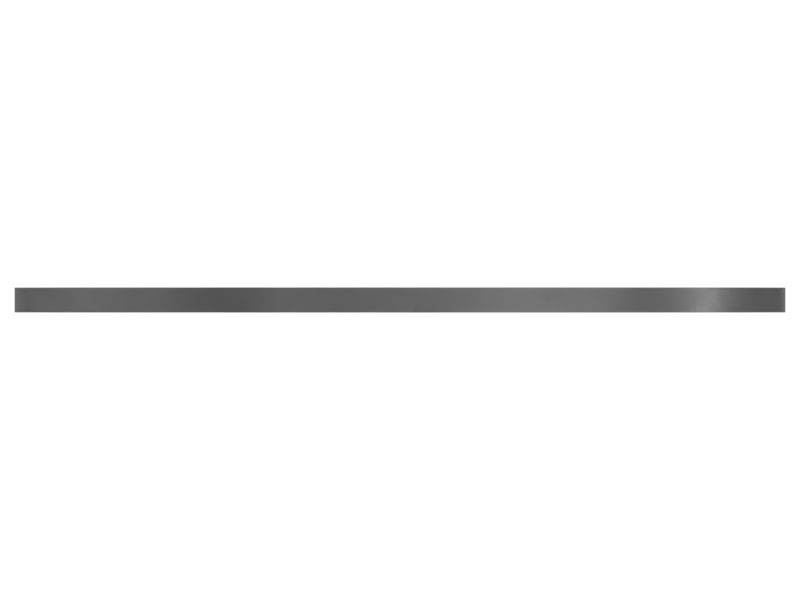

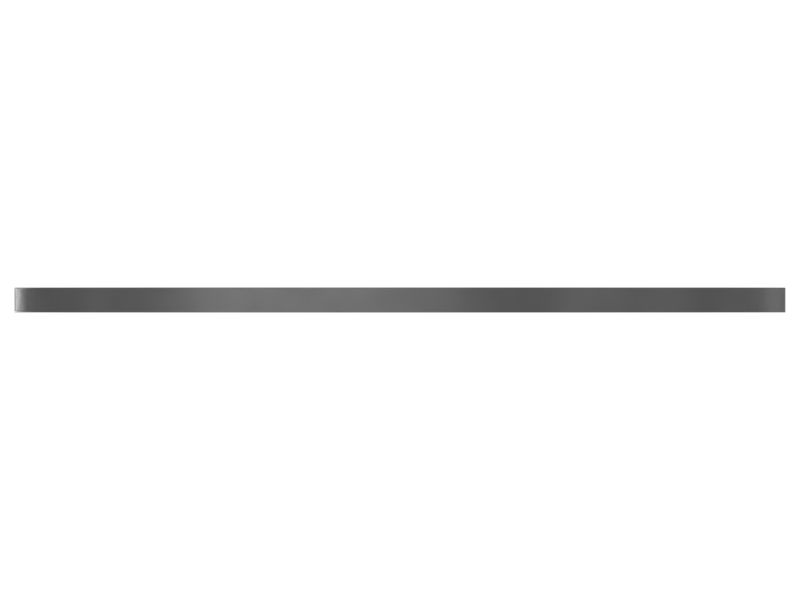

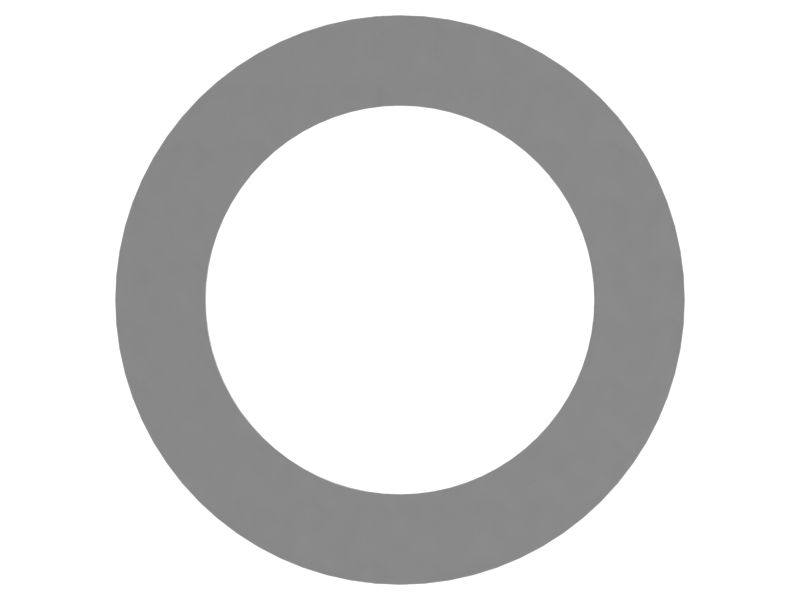

139-1996: ПРОКЛАДКА

The Tilt Lever Hinge Pin Spacer is used to ensure smooth and stable movement of the tilt lever hinge pin. It provides spacing and support within the hinge mechanism, allowing the tilt lever to pivot effectively. Its accuracy ensures proper alignment and reduces wear on the hinge pin, contributing to the overall operational reliability and longevity of the equipment.

Attributes:
• Facilitates smooth pivoting action of the tilt lever.
• Provides an accurate fit for hinge pin alignment.
• Maintains optimal spacing for proper function.
• Reduces friction between the tilt lever and hinge pin.

Applications:
The Tilt Lever Hinge Pin Spacer is located within the tilt lever mechanism of the equipment, providing necessary spacing and support for the hinge pin to facilitate reliable and efficient equipment operation.

• Inner Diameter (mm): 65.1

• Inner Diameter (in): 2.563

• Outer Diameter (mm): 95

• Outer Diameter (in): 3.74

• Thickness (mm): 3

• Thickness (in): 0.118

• Coating: Zinc plated

• Material: Soft Steel,Carbon Steel,Alloy Zinc

• Washer Type: FLAT WASHER

• Material Description: Soft Steel
