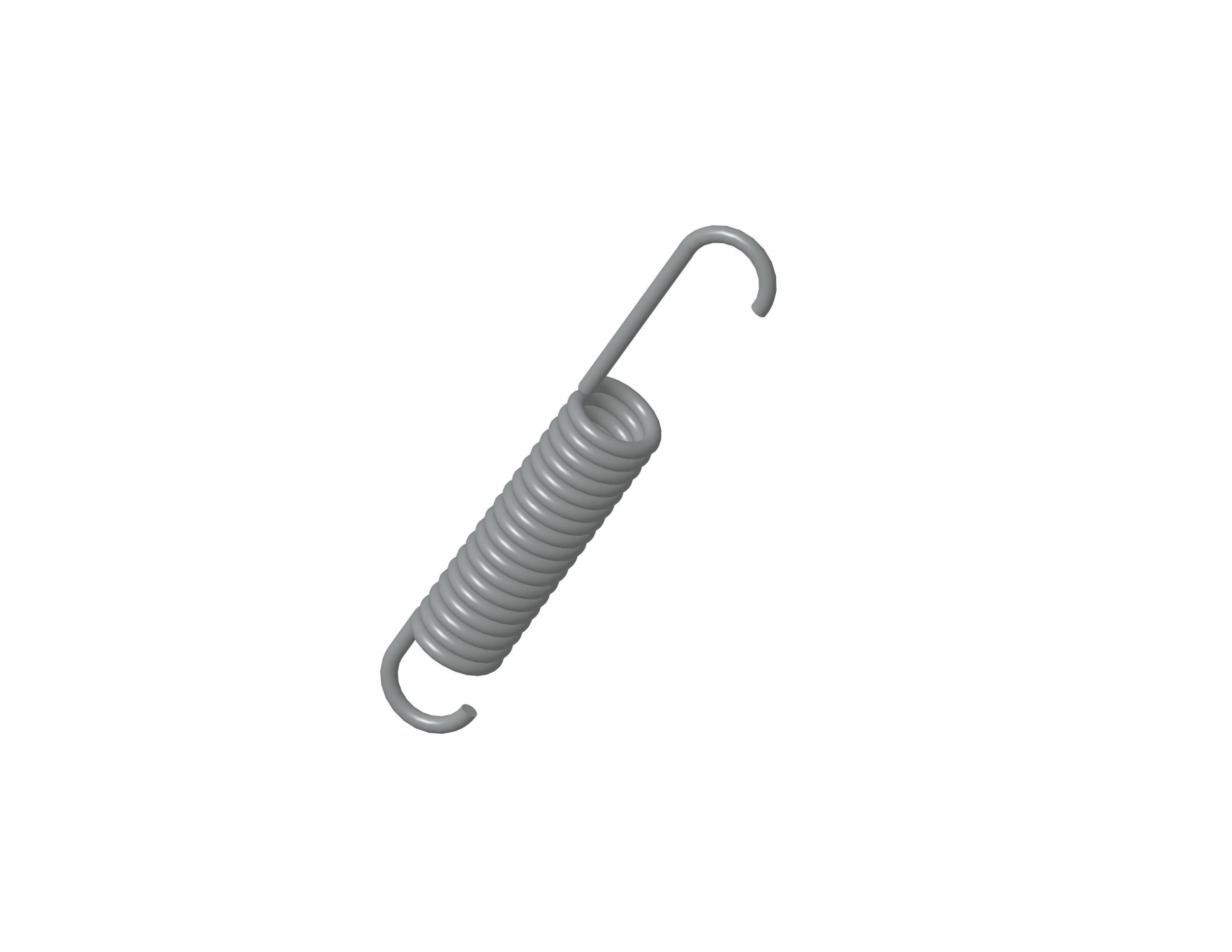

137-5945: ПРУЖИНА

Description:
Tension springs are wound helical coils that are wrapped tightly together to create tension. Also called extension springs, tension springs provide extended force when the spring is pulled apart from its original length. The spring stretches to a specific length as the load/force is applied, absorbing energy to create resistance to the pulling force.

Attributes:
•Manufactured to precise specifications and are built for durability, reliability, and productivity.
• Initial tension maintained at 10.9 N/mm
• Provided With Right-hand wound helical coil helps to maintain their shape and stability.

Applications:
Tension springs are used to attach two components and bring them together when they try to detach. Widely used in Cat 931B, 931C, 933, 935B, 935C, and 939 Track Loader, D3B, D3C, D4B, D4C, and D5C Track Type Tractor.

• Inner Diameter (in): 0.38

• Inner Diameter (mm): 9.8

• Length (in): 3.97

• Length (mm): 101

• Outer Diameter (mm): 15

• Outside Diameter (in): 0.59

• Spring Type: Tension

• Wire Size (in): 0.1

• Wire Size (mm): 2.6

• Material: Stainless Steel
