136-0022: ТРУБКА В СБОРЕ

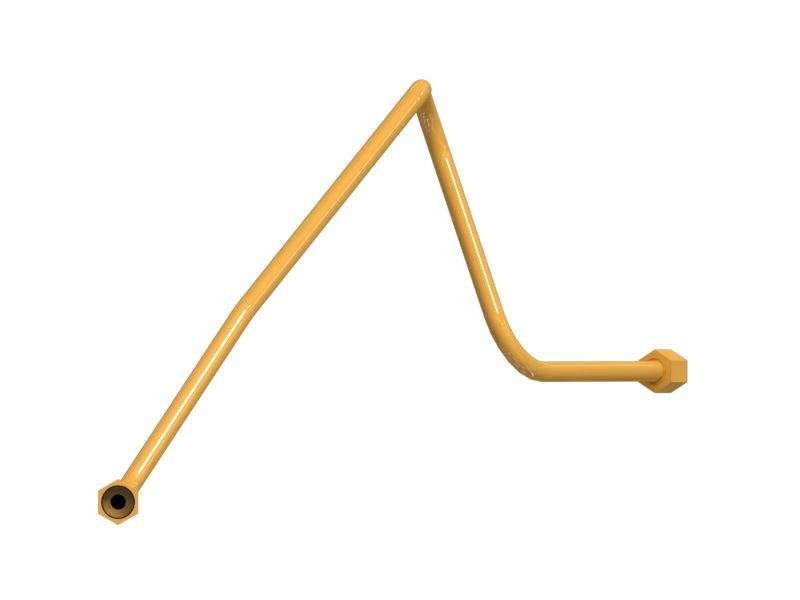

An Axle Oil Cooler Tube Assembly is fitted with the axle or brake oil lines along with the help of nuts and sleeves, to conduct oil between components and provide a leak-free seal. It is responsible for connecting the oil lines with the oil cooler core assembly. It has an optimum size that allows more oil to flow through the hose along with maintaining the velocity of the flow. This connection ensures the proper circulation of oil to regulate the temperature of the axle, ensuring optimal performance and preventing overheating.

Attributes:
• Provided with O-Ring Face Seal sleeves and nuts for a tight and secure connection to prevent oil leaks
• Withstands a relief valve pressure of 18500 kPa

Applications:
An Axle Oil Cooler Tube Assembly is used to provide a means for carrying oil between the oil cooler core and the axle oil lines, ensuring the proper oil flow for the function of the braking.

• Material: STEEL,Alloy Mixed

• Outer Diameter (mm): 13

• Outer Diameter (in): 0.51

• Approximate Overall Length (mm): 1283
