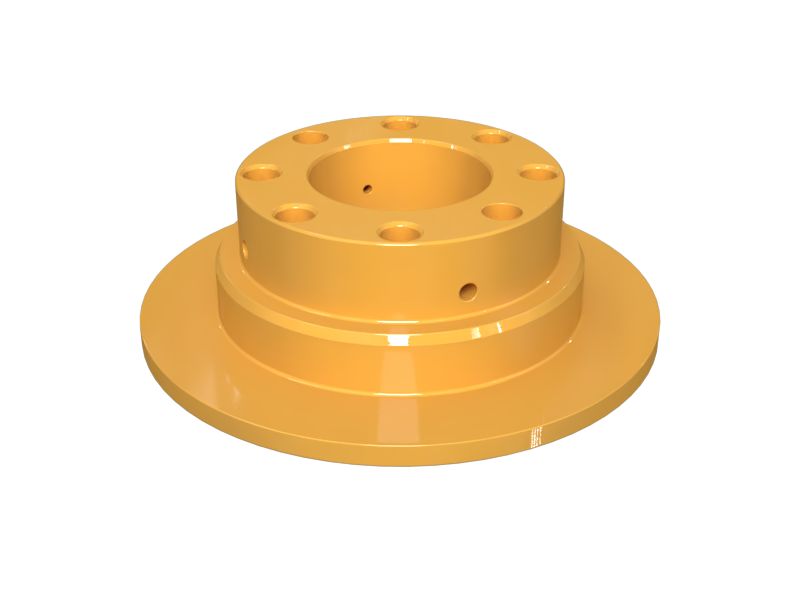

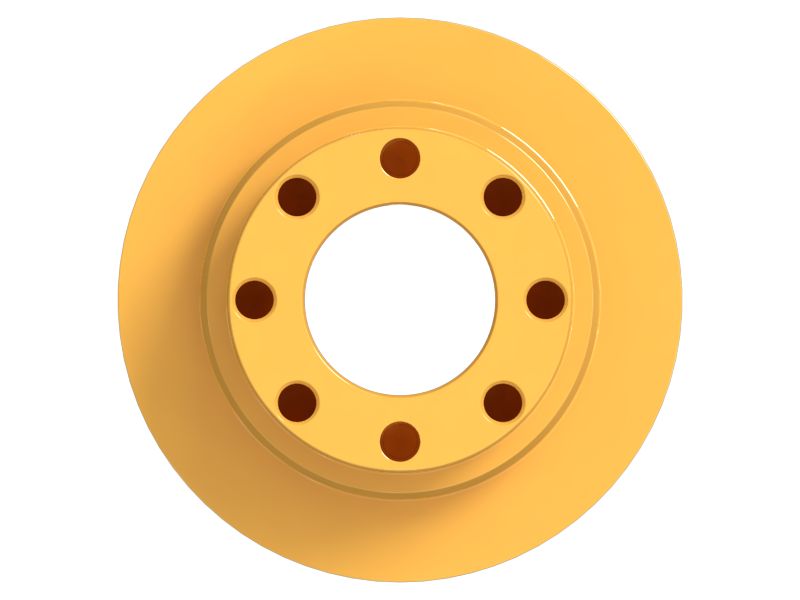

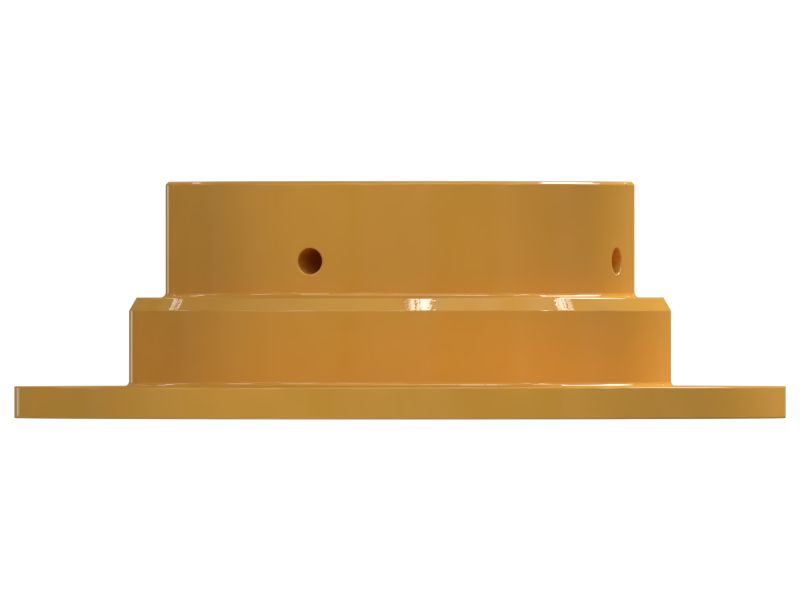

135-0524: ПОРШЕНЬ МУФТЫ СЦЕПЛЕНИЯ

Description:
The Clutch Pistons are critical components that facilitate the smooth and efficient operation of hydraulic clutches. The Clutch Piston in transmission gears applies or releases pressure on the clutch plates or discs. When pressure is applied, the clutch plates are pressed together, transmitting power from the engine to the transmission. When pressure is released, the clutch plates separate, disengaging the transmission gears and interrupting power flow.

Attributes:
• Engineered for wear resistance, durability, and high-pressure tolerance.
• Enables engagement and disengagement of the clutch for power transfer control.
• Incorporates seals to prevent hydraulic fluid leakage.

Application:
The Clutch-Piston is responsible for engaging and disengaging the clutch in transmissions, enabling the transfer of power from the engine to the transmission gears. They are widely used in Cat 14G, 14H, 16G, and 16H Motor Graders.

• Inside Diameter (in): 3.13

• Inside Diameter (mm): 79.38

• Material: Steel,Carbon Steel

• Outside Diameter (in): 9.25

• Outside Diameter (mm): 235

• Overall Width (in): 2.83

• Overall Width (mm): 71.83

• Weight (kg): 7.52

• Weight (lb): 16.59
