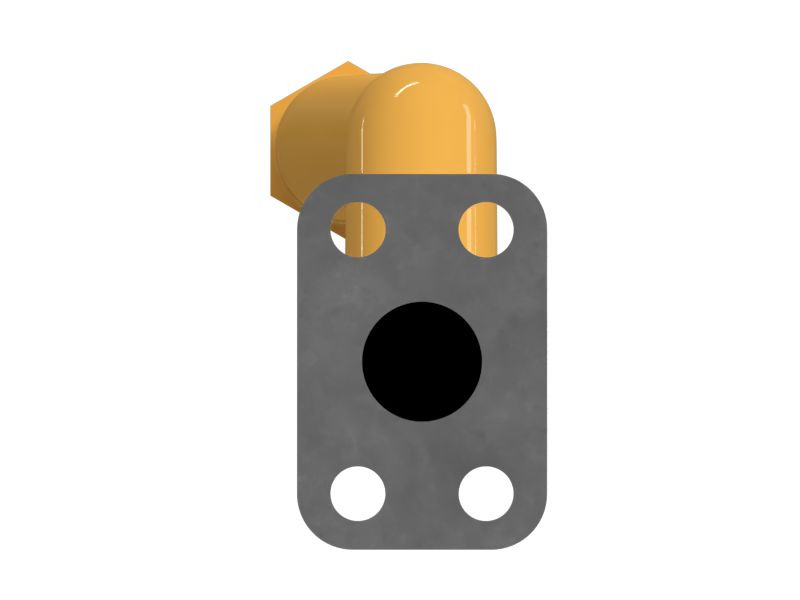

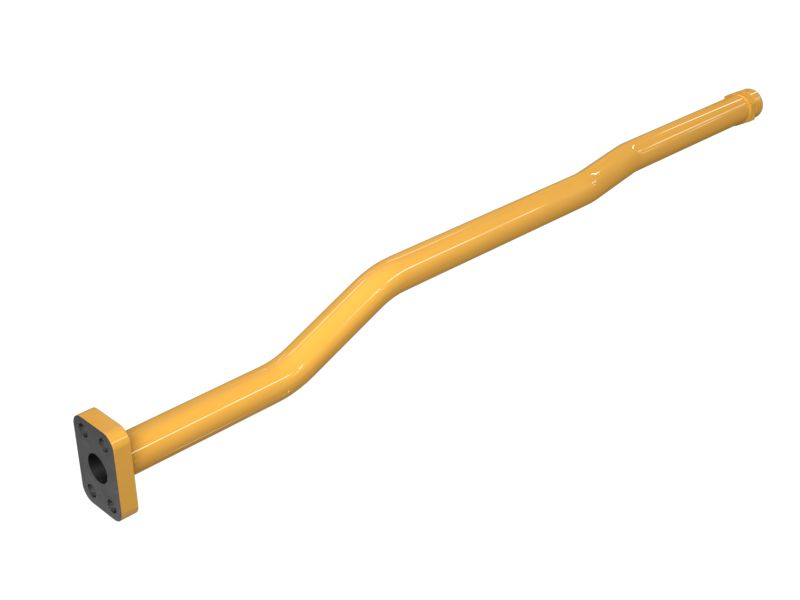

135-0127: ТРУБКА В СБОРЕ

The Stick Cylinder Lines Tube is designed to facilitate the flow of hydraulic fluid within the hydraulic system in equipment, particularly for controlling the stick and boom's movement, this tube offers resilience to high pressures, abrasion, and mechanical stresses experienced during operation. Its design incorporates accurate bending, routing, and connections to ensure efficient fluid flow and minimal pressure drops, this tube assembly includes fittings, connectors, and seals to guarantee leak-proof connections between the hydraulic lines and the stick cylinder, enabling accurate and efficient control of the boom's extension and retraction.

Attributes:
• Provides leak-proof connections.
• Maintains structural integrity under varying temperatures.
• Smooth inner surface for optimal flow.

Applications:
The Stick Cylinder Lines Tube is located in the under stick of an assembly, and it is used to convey the transmission of hydraulic fluid to the auxiliary hydraulic hoe stick to ensure responsive boom control and accurate maneuverability.

• Outer Diameter (mm): 34

• Outer Diameter (in): 1.34

• Approximate Overall Length (mm): 962

• Material: Steel
